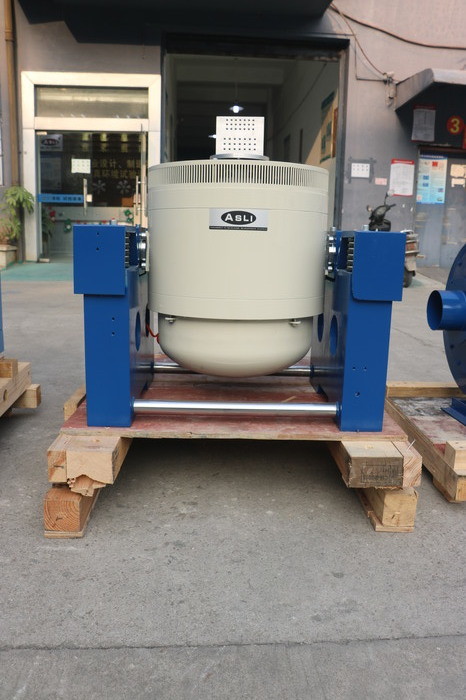

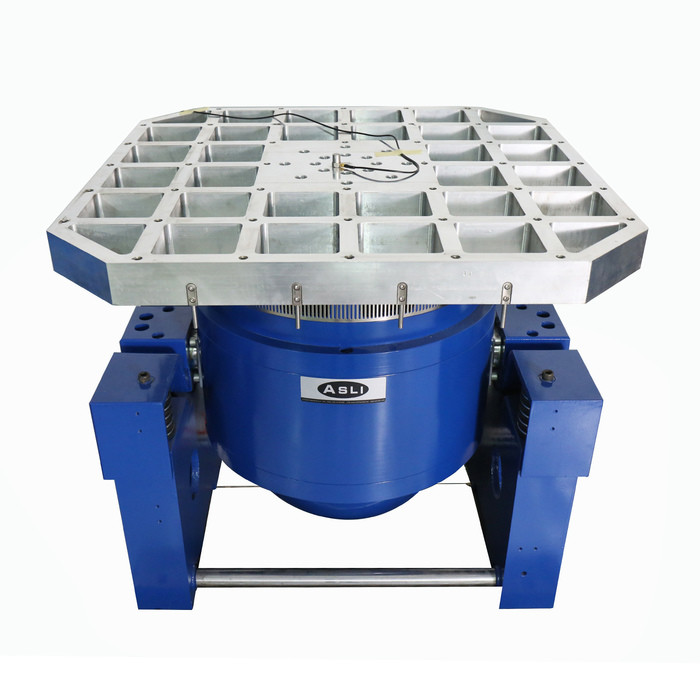

Sine Sweep Random High Frequency Vibration Test Bench for Packaging
Applications:
High Frequency Vibration Test Shaker complied with national standard, able to satisfy special testing requirements ,is widely applied for electronic and electric products, automotive parts ,components and materials by high low constant temperature ,temperature change, shock, damp heat vibration etc combined environment simulation reliability test.
Technical Parameters:
| Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s2) | Rated Speed(m/s) |
Rated displacement (p-p)mm |
Max. Loading (Kg) | moving coil(Kg) |
Dimension of Moving coil(mm) |
|
ES-6
|
6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
Standard Compliance:
1. IEC68-2-1 (GB2423.1-2008)
2. IEC68-2-2 (GB2423.2-2008)
3. IEC68-2-3 (GB2423.3-2006)
4. IEC68-2-30 (GB2423.4-2008)
5. IEC68-2-14 (GB2423.22-2008)
6. MIL-STD-810D (GJB150.3A-2009)
7. MIL-STD-810D (GJB150.4A-2009)
8. MIL-STD-810D (GJB150.9A-2009)

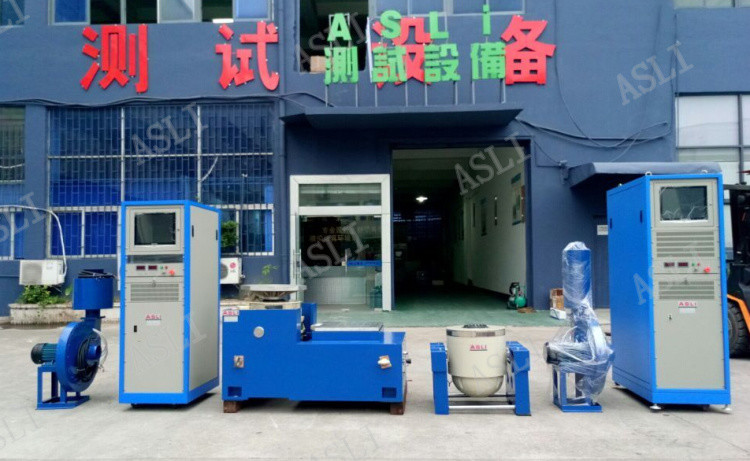

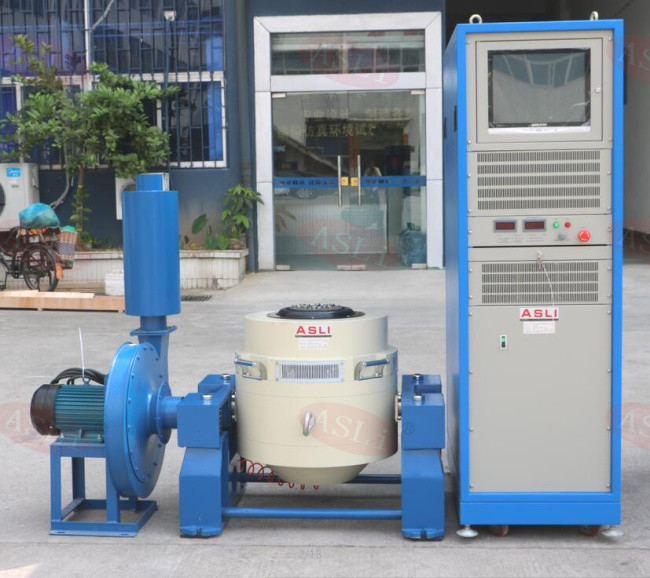

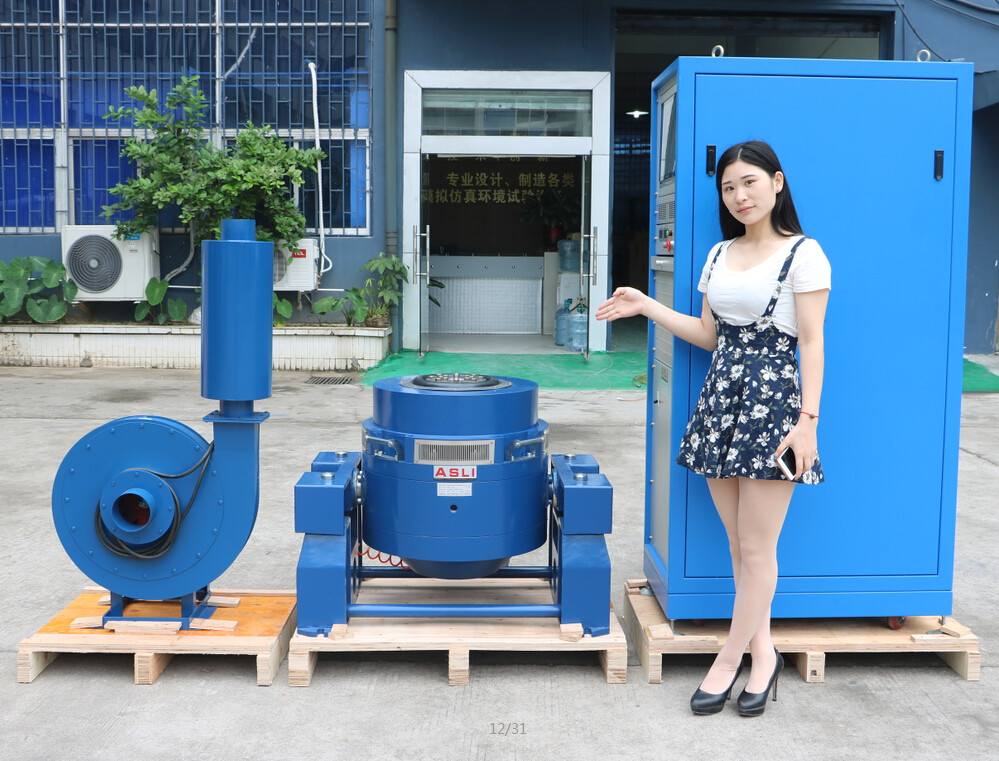

Vibration table configuration:
1. Air-cooling series electrical vibration system
2. Water-cooling series electrical cooling system
3. Digital random vibration controller
4. Digital sine vibration controller
