380V 3 Phase Electrodynamic Vibration Shaker , 600kg.F Vibration Testing System
Product Details
| Sine Force: | 6000N | Frequency: | 3~3500HZ |
|---|---|---|---|
| Speed: | 1.6m/s | Vibration Direction: | Vertical Vibration Or X,y,z |
| Power: | 380v 3 Phase | Acceleration: | 100g |
| Highlight |
600kg.f electrodynamic vibration shaker,380V 3 phase electrodynamic vibration shaker,600kg.f vibration testing system |
||
Product Description

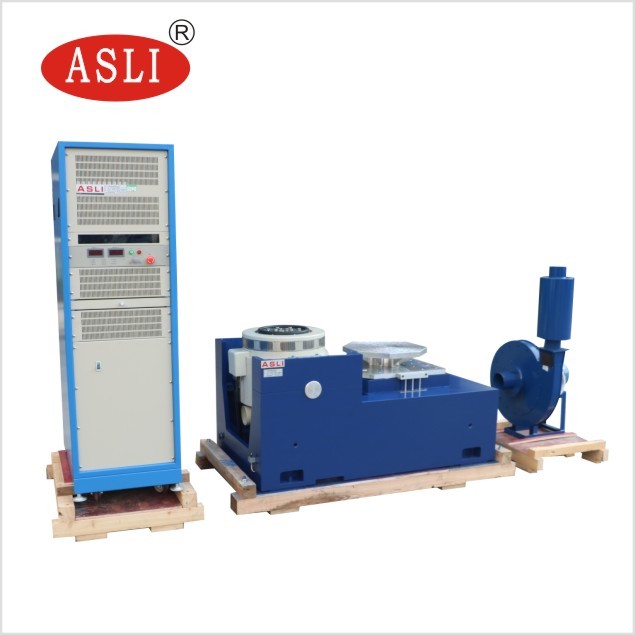

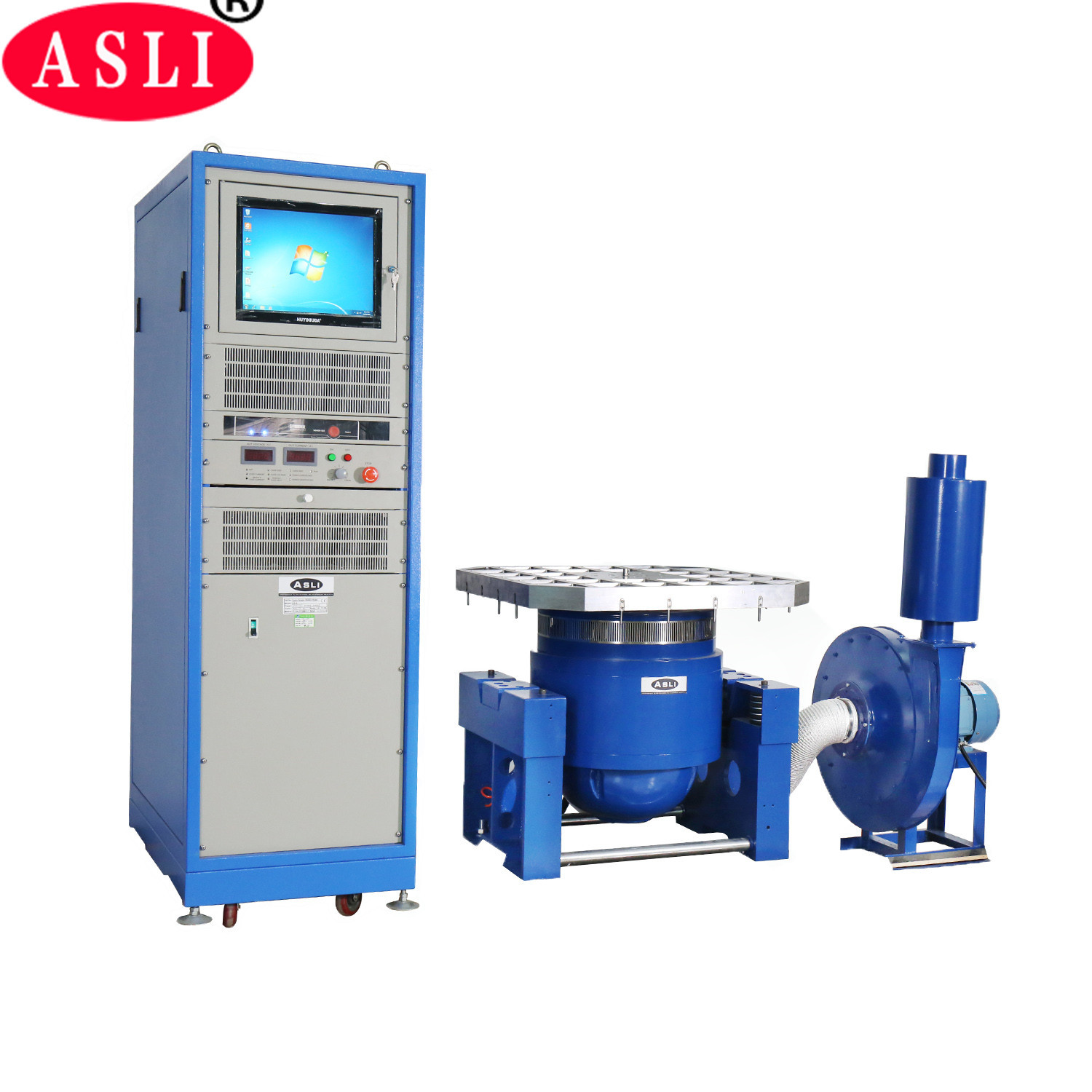

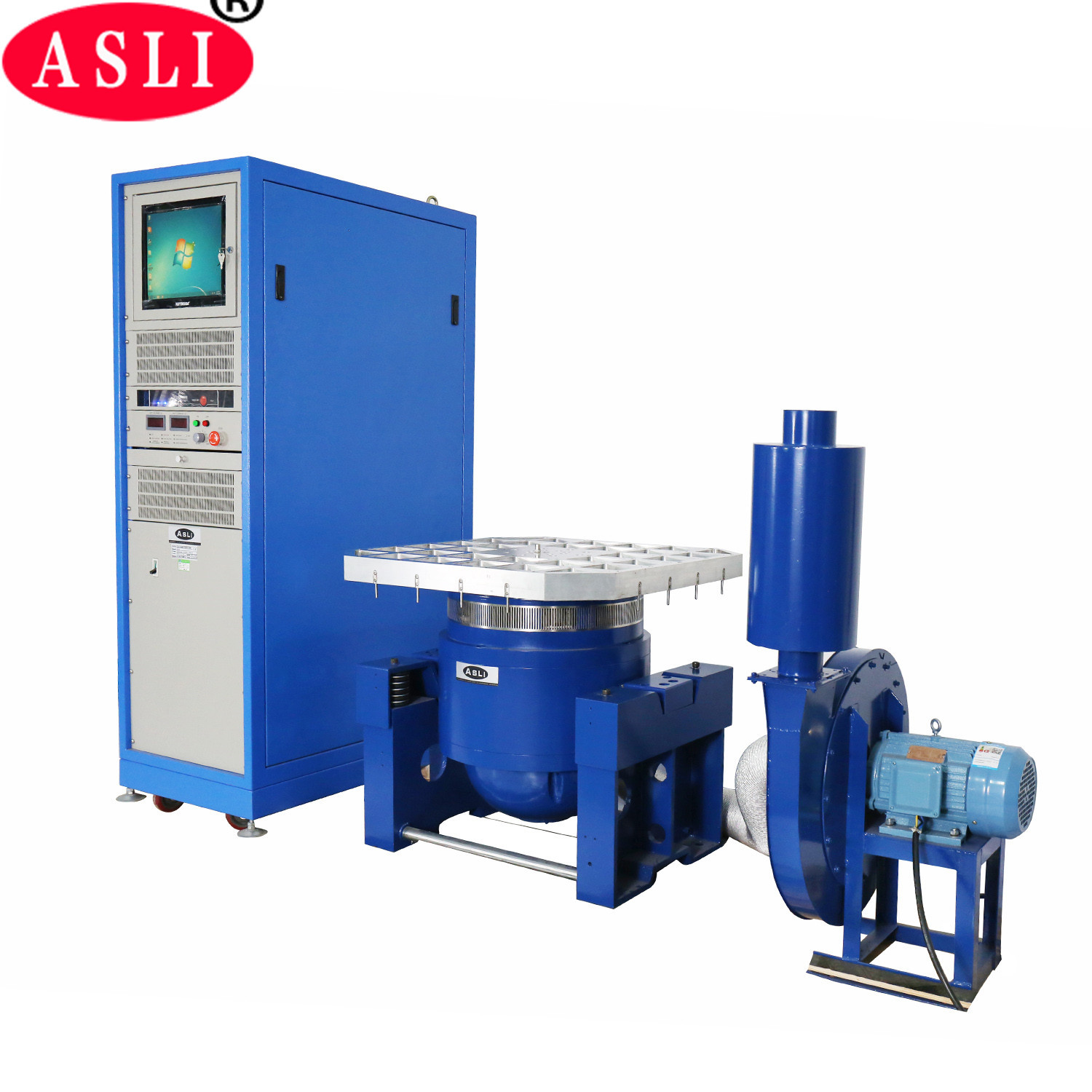

The Electrodynamic Vibration Shaker is a high-performance testing system designed for PCB vibration testing, featuring an integrated power amplifier. With a rated sine force of 6000N and air-cooled operation, this equipment delivers reliable performance for both sine and random force testing applications.

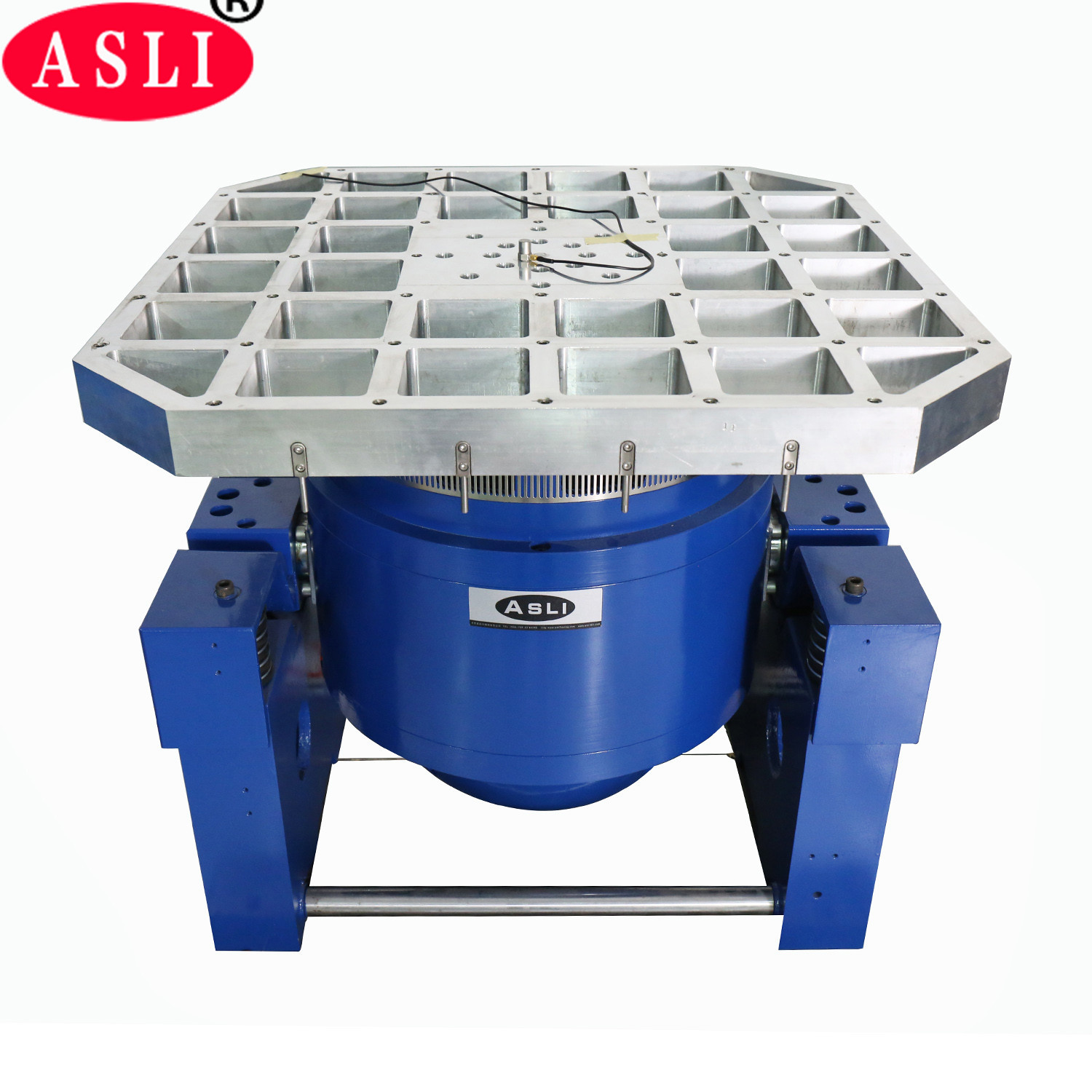

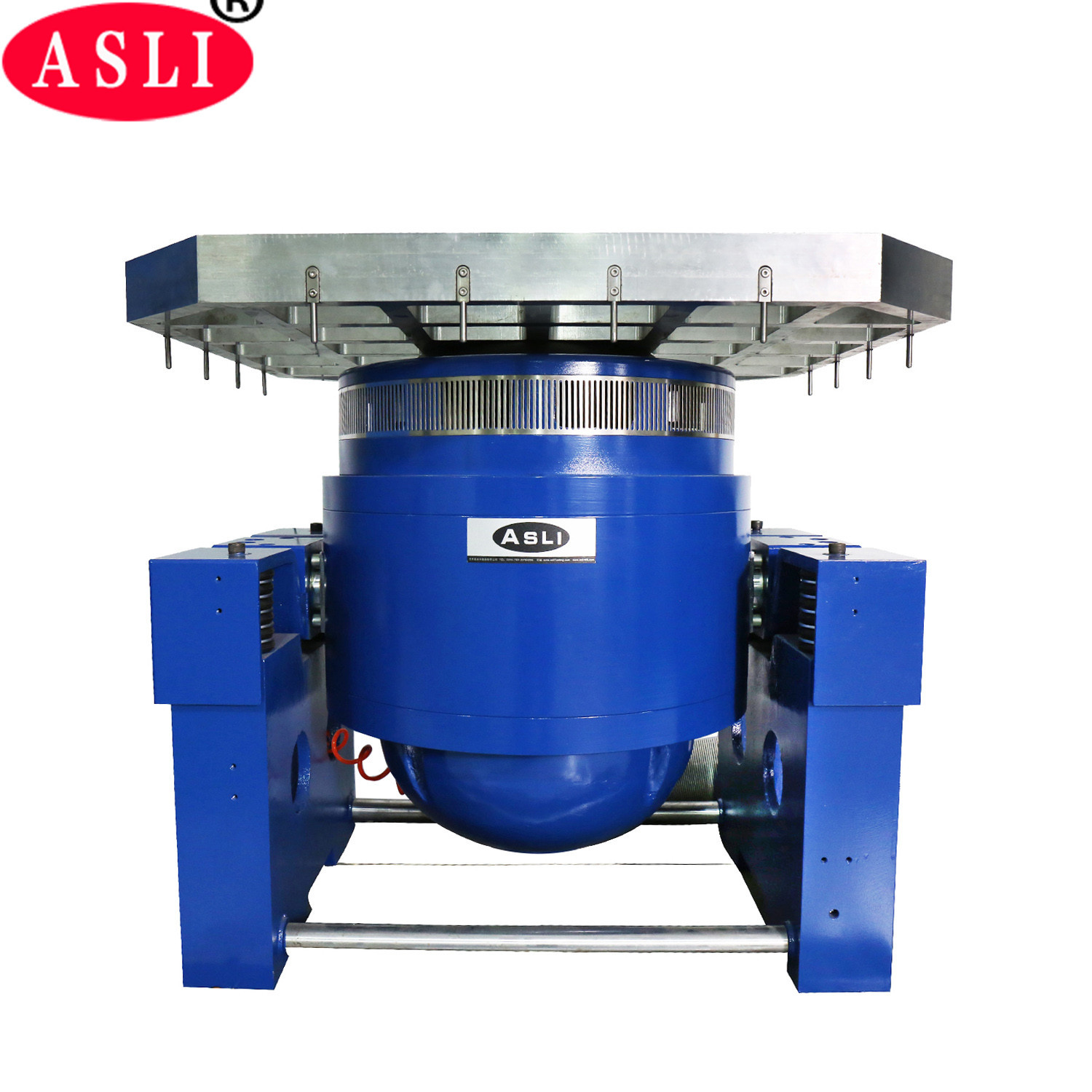

This electrodynamic shaker utilizes a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings, linear guidance, and trunnion isolation. These advanced technologies enable completion of X, Y, and Z three-axis sinusoidal vibration tests, broadband random vibration tests, and classical pulse tests (half-sine, trapezoidal, sawtooth wave) as well as shock response spectrum testing.
These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and home appliances industries.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3–2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
The shock tester machine is packaged with PP film first, followed by 10mm foam between the machine and the case, and enclosed in a standard export plywood case for safe transportation.
If you have any questions about our vibration shakers, please feel free to contact us. Thank you.
Product Highlights
380V 3-phase electrodynamic vibration shaker delivers 6000N sine force, 3-3500Hz, 100g acceleration and 1.6m/s speed for X/Y/Z sine and random testing. Durable double-magnetic circuit, air cooling, export plywood case. Ideal for PCB, aerospace and electronics vibration qualification.
