3500Hz 200kg.F High Frequency Vibration Shaker With Slip Table
Product Details
| Sine Force: | 2000N | Frequency: | 3~3500HZ |
|---|---|---|---|
| Speed: | 1.6m/s | Vibration Direction: | Vertical Vibration |
| Power: | 380v 3 Phase | Acceleration: | 100g |
| Highlight |
3500Hz high frequency vibration shaker,200kg.F slip table vibration shaker,high frequency vibration shaker with slip table |
||
Product Description

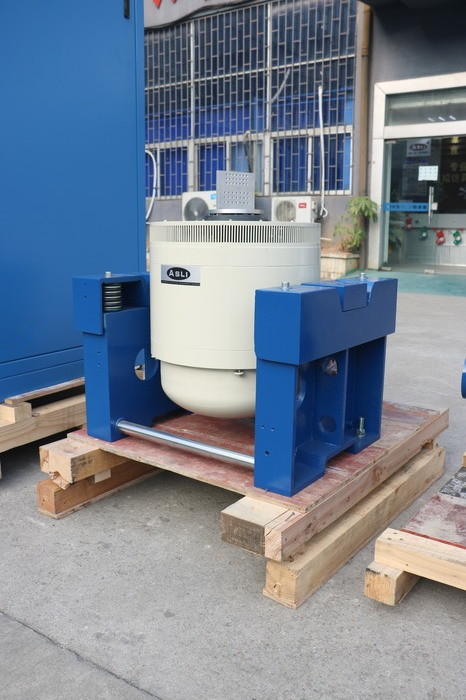

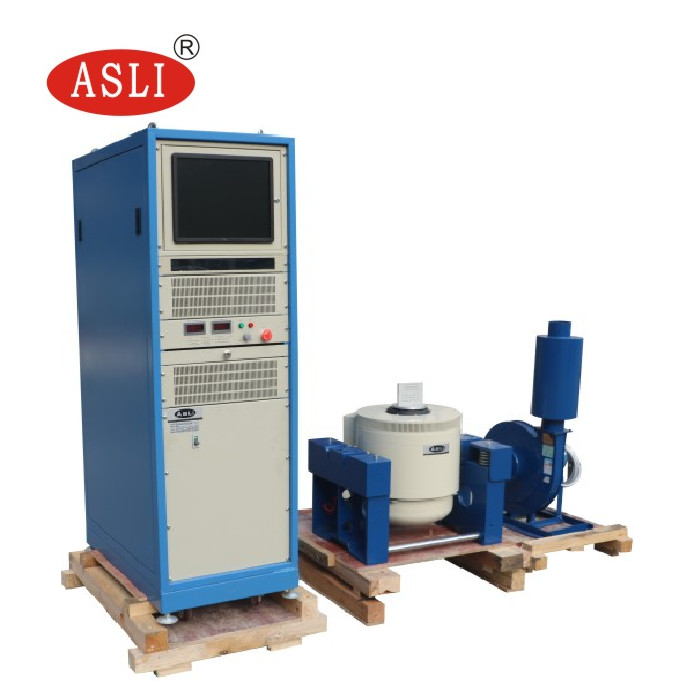

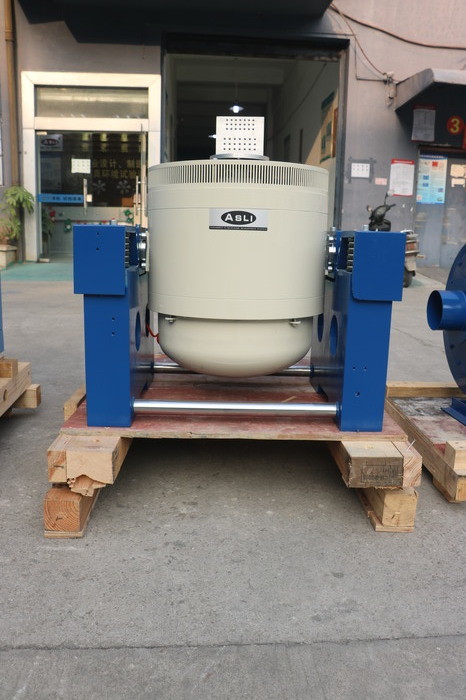

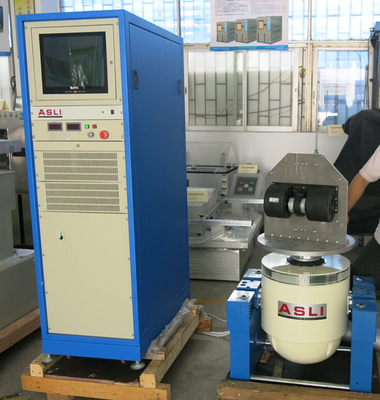

Vertical Electrodynamics Vibration Shaker Table with Loading Vibration Test
The electrodynamic vibration tester adopts a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings and linear guidance, and trunnion isolation advanced modern technology and special technology. It can complete X, Y, Z three-axis sinusoidal vibration tests and broadband random vibration tests, as well as classical (half-sine, trapezoidal, sawtooth wave) pulse and shock response spectrum tests. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, home appliances, and other fields.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3–2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
The electrodynamic vibration tester adopts a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings and linear guidance, and trunnion isolation advanced modern technology and special technology. It can complete X, Y, Z three-axis sinusoidal vibration tests and broadband random vibration tests, as well as classical (half-sine, trapezoidal, sawtooth wave) pulse and shock response spectrum tests. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, home appliances, and other fields.
PP film first, then 10mm foam between the machine and the case, and outside is a standard export plywood case.
If you have any questions about these vibration shakers, please feel free to contact us. Thank you.
Product Highlights
3500Hz 200kg.F vertical electrodynamic vibration shaker with slip table. Delivers 2000N sine force, 100g acceleration, 1.6m/s speed. Double-magnetic circuit ensures durability and precision for X,Y,Z three-axis sine, random and shock tests in defense, aerospace and electronics.
