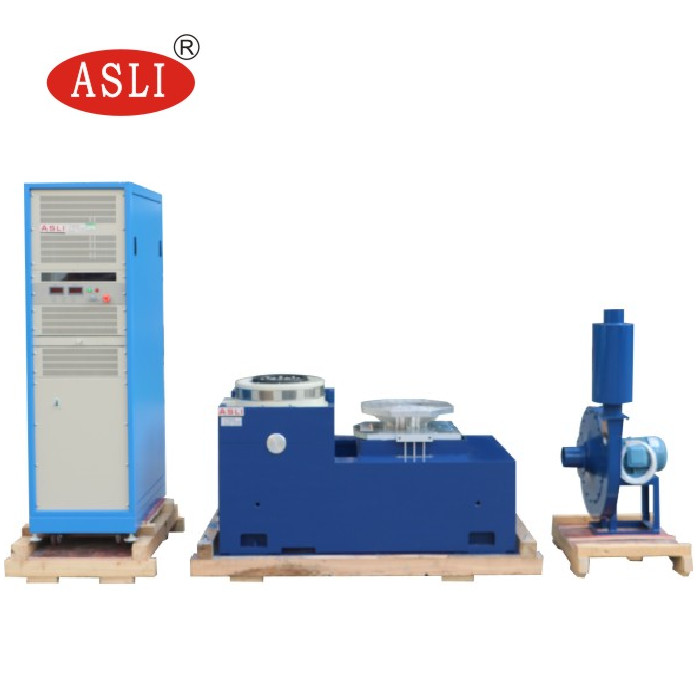

High Acceleration Electromagnetic Vibration Table for Lithium Battery Safety Testing
Electromagnetic vibration table is widely used in defense, aviation, aerospace, communications, electronics, automobiles, home appliances, and other industries. This type of equipment is used for discovering the early faults, simulating the actual working condition and the structure strength test, the product application is wide, the application width is obvious, the test effect is remarkable and reliable. Sine wave, FM, sweep, programmable, frequency multiplier, logarithm, maximum acceleration, amplitude modulation, time control, full function computer control, simple fixed acceleration/fixed amplitude. Equipment through continuous failure to run 3 months of testing, stable performance, reliable quality
high frequency vibration tester Technical Parameters:
| Sinusoidal thrust | 300kgf |
| Random thrust | 300kgf rms |
| Impact thrust | 600kgf |
| Frequency Range | 5~3500Hz |
| Continuous displacement | 25.4mm |
| Maximum speed | 1.6m/s |
| Switching power amplifier | |
| Amplifier output | 3.5kVA |
| Signal to noise ratio | >65dB |
| IF gain | ≥80 |
| Total harmonic distortion (at rated output) | Less than 0.5% when DC (0.1Hz) to 500Hz; less than 1.0% when 500Hz to 5000Hz |
| Power amplifier frequency response | DC (0.1Hz) to 4500Hz: ±3dB; |
| Mean Time Between Failure (MTBF) | >35,000 hours |
Product features

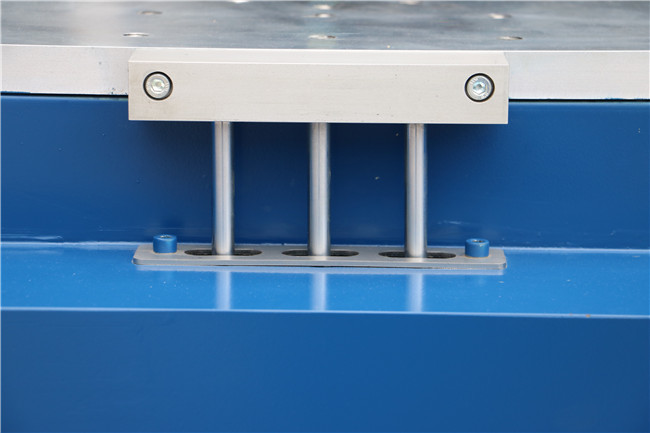

* Flexible suspension system and straight line guide, strong bearing capacity, good guidance performance and high stability.
* The static stiffness of the central load airbag is large, the dynamic stiffness is small, the bearing capacity is strong, and the dynamic performance is excellent.
* Rapid self-examination diagnosis and chain protection, high safety and reliability;
* The air bag isolating and damping device makes the vibrator do not need the special foundation, perfectly reproduces the vibration wave and reduces the vibration transmission.

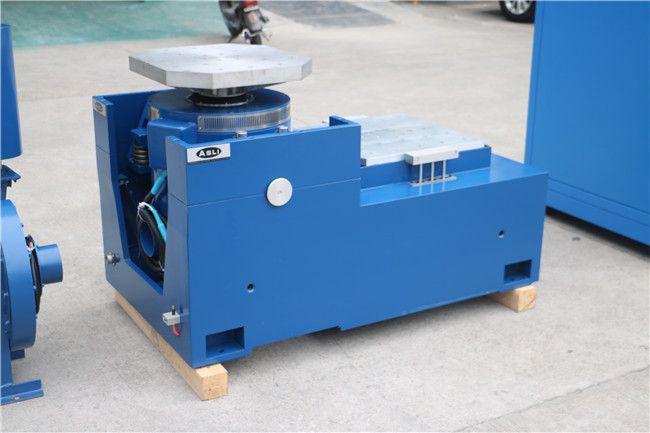

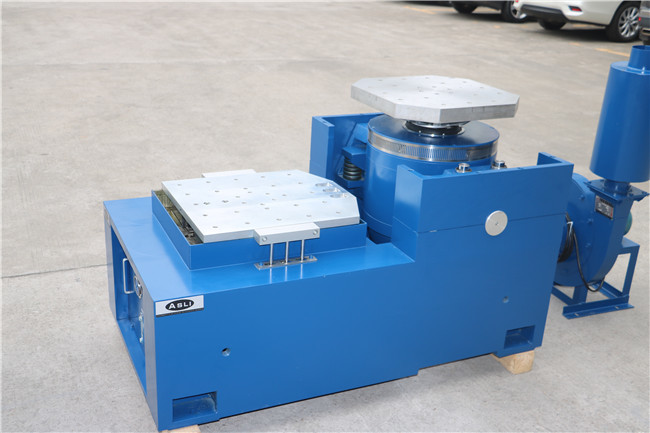

* Provide different use of horizontal and vertical expansion platforms;
* It can be used with all kinds of vibration controllers, and the operation is simple.
