CE 6KN Vibration Shaker Table Standard Laboratory Equipment
Product Details
| Application: | Materila, Automobile Parts, Packing, House Hold Products | Voltage: | 380V |
|---|---|---|---|
| After-sales Service Provided: | Video Technical Support,Online Support,Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service | Warranty: | 1 Year |
| Applicable Industries: | Defence Industry, Civil, Electronic Appliances, Automotive, Spare Parts, Electronics, Aviation | Product Name: | Vibration Test System |
| Shaker Force: | 6KN | Suitable For: | Max Loading 100kgs Test Items |
| Frequency Range: | 3~3500HZ | Displacement: | 51mm |
| Highlight |
6KN vibration shaker table,CE vibration shaker table,CE standard laboratory equipment |
||
Product Description

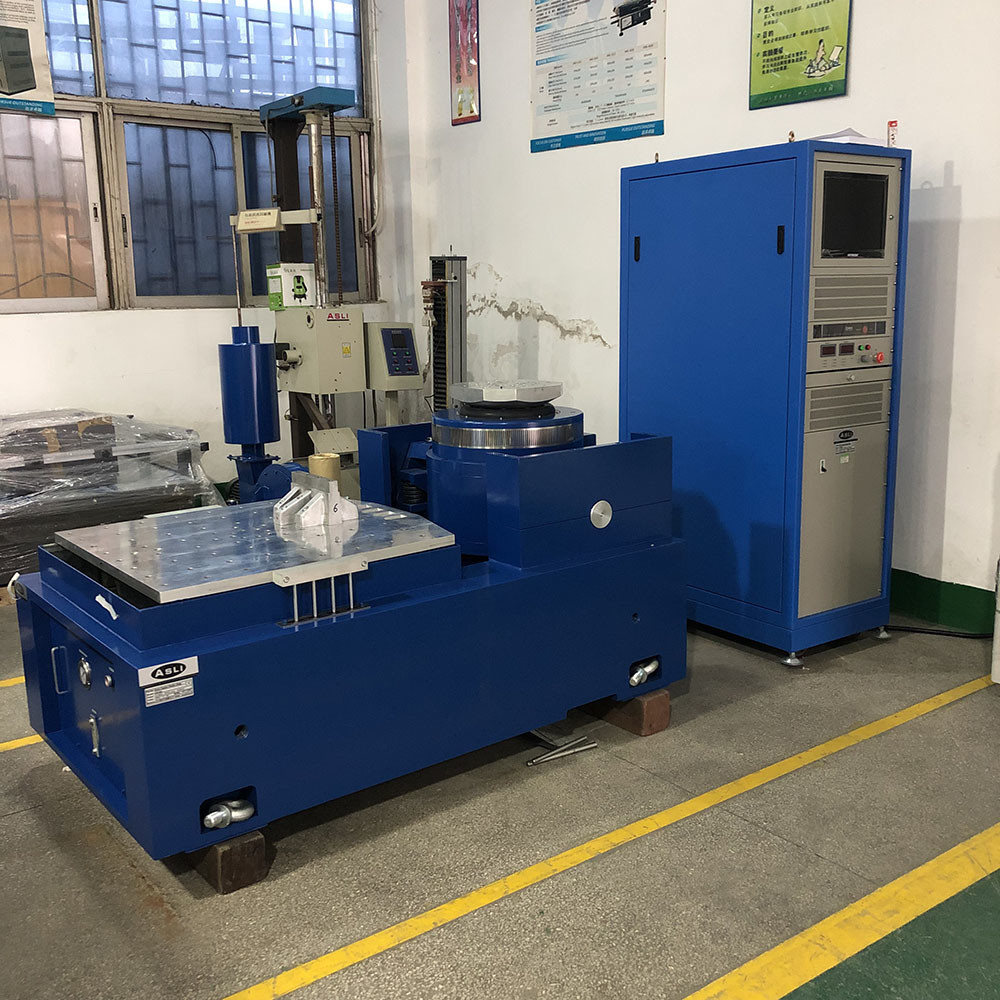

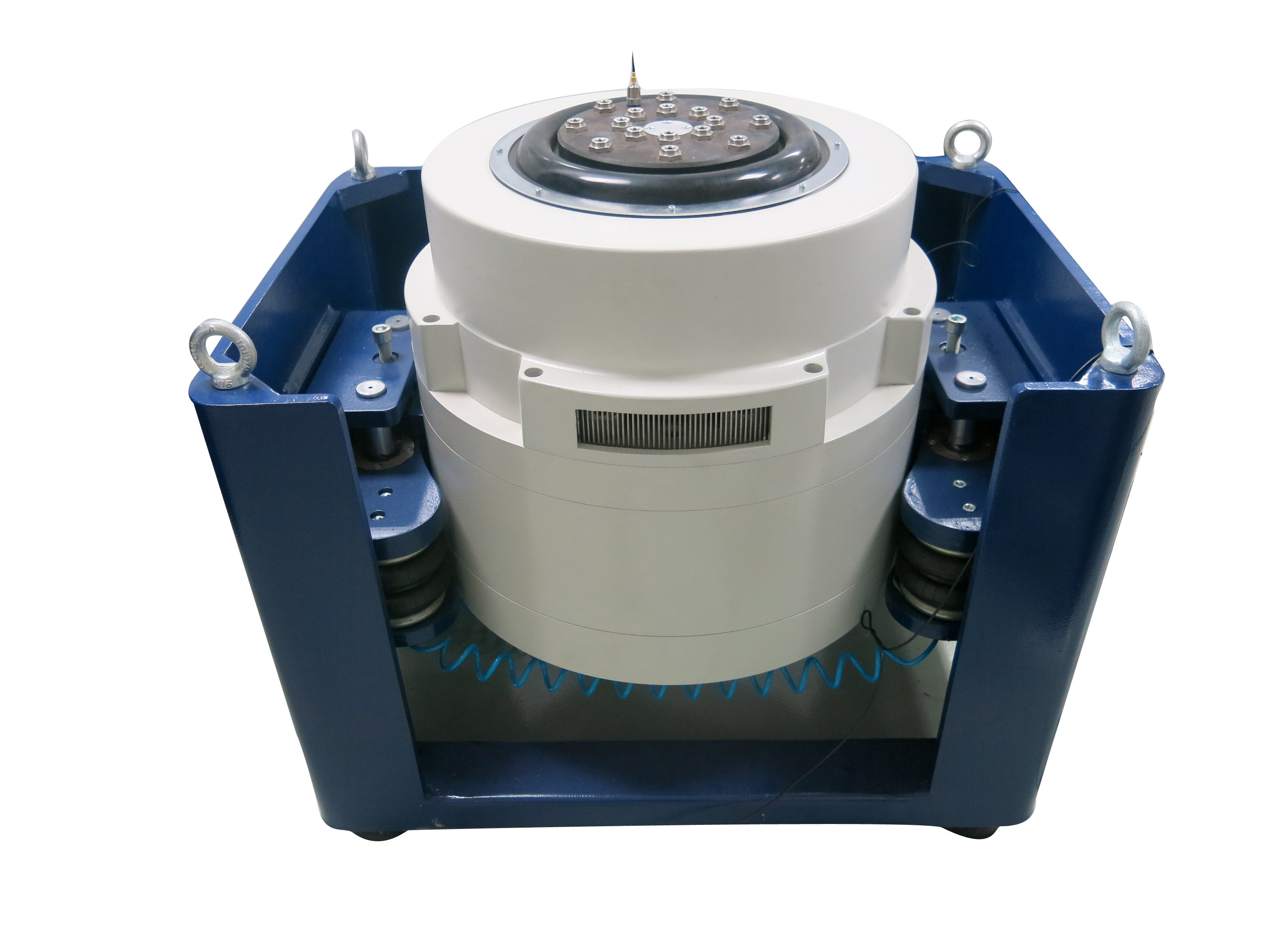

The CE 6KN Vibration Shaker Table is a standard laboratory testing system designed for vertical vibration testing with a customized fixture to evaluate product quality and reliability. This electromagnetic vibration shaker delivers precise, repeatable results for a wide range of industrial and research applications.
To help us recommend the most suitable vibration test system for your needs, please prepare and provide the following information when sending your inquiry:
- Specimen description
- Specimen test mass
- Specimen dimensions
- Test profile (if available)
- Maximum acceleration required for the test
- Test direction: X, Y, Z axes or Z direction only
| System Model | ES-6A |
|---|---|
| Frequency Range | 3–3500 Hz |
| Rated Force — Sine | 6000 N |
| Rated Force — Random | 12000 N |
| Rated Force — Shock | 12000 N |
| Maximum Acceleration — Sine | 1000 m/s² |
| Maximum Acceleration — Random | 1000 m/s² rms |
| Maximum Acceleration — Shock | 2000 m/s² |
| Maximum Velocity — Sine | 1.6 m/s |
| Maximum Velocity — Shock | 1.6 m/s |
| Maximum Displacement (p-p) | 51 mm |
| Moving Coil Mass | 6.5 kg |
| Dimension of Moving Coil | ⌀ 230 mm |
| Max Load | 180 kg |
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (kg) | Moving Coil (kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-1 | 1000 | 1000 | 3–3500 | 400 | 1.2 | 25 | 70 | 2.5 | Φ150 |
| ES-2 | 2000 | 2000 | 3–3500 | 800 | 1.6 | 25 | 70 | 2.5 | Φ150 |
| ES-2a | 2000 | 2000 | 3–3500 | 300 | 1.6 | 40 | 70 | 8 | Φ230 |
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3–2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3–2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3–2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3–1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
- Well-designed dynamic circle skeleton with a higher stage axial resonance frequency.
- Two-magnetic circuit design ensures low magnetic flux leakage, compact structure, and rational layout.
- Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation for excellent eccentric load capacity.
- Trunnion isolation foundation dedicated to vibration isolation, with convenient mobile installation.
- Advanced technology in the moving system ensures high reliability of the dynamic circle.
- New duct design enhances the cooling effect.
- Static stiffness and dynamic stiffness of the bearing with small balloon effect, raising the vibration table capacity and improving low-frequency performance.
Welcome to contact us for customized solutions and further technical support.
