3000Hz 10KN Electrodynamic Vibration Test System For Laboratory
Product Details
| Application: | Materila, Automobile Parts, Packing, House Hold Products | Voltage: | 380V |
|---|---|---|---|
| After-sales Service Provided: | Video Technical Support,Online Support,Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service | Warranty: | 1 Year |
| Applicable Industries: | Weapon Industry, Civil, Electronic Appliances, Automotive, Spare Parts, Electronics, Aviation | Product Name: | Vibration Test System |
| Shaker Force: | 10KN | Suitable For: | Max Loading 100kgs Test Items |
| Frequency Range: | 3~3500HZ | Displacement: | 51mm |
| Highlight |
10KN electrodynamic vibration test system,3000Hz electrodynamic vibration test system,3000Hz laboratory test equipment |
||
Product Description

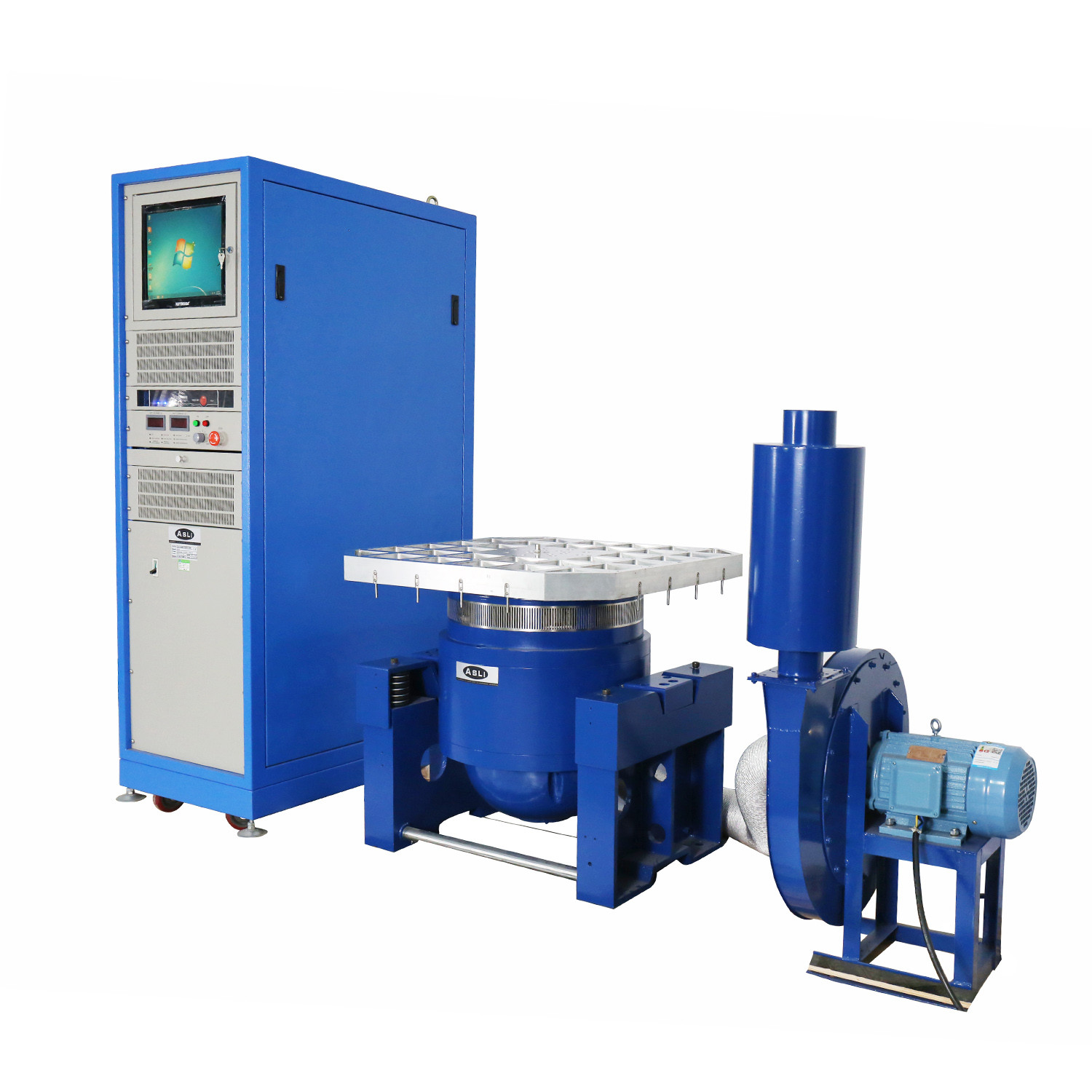

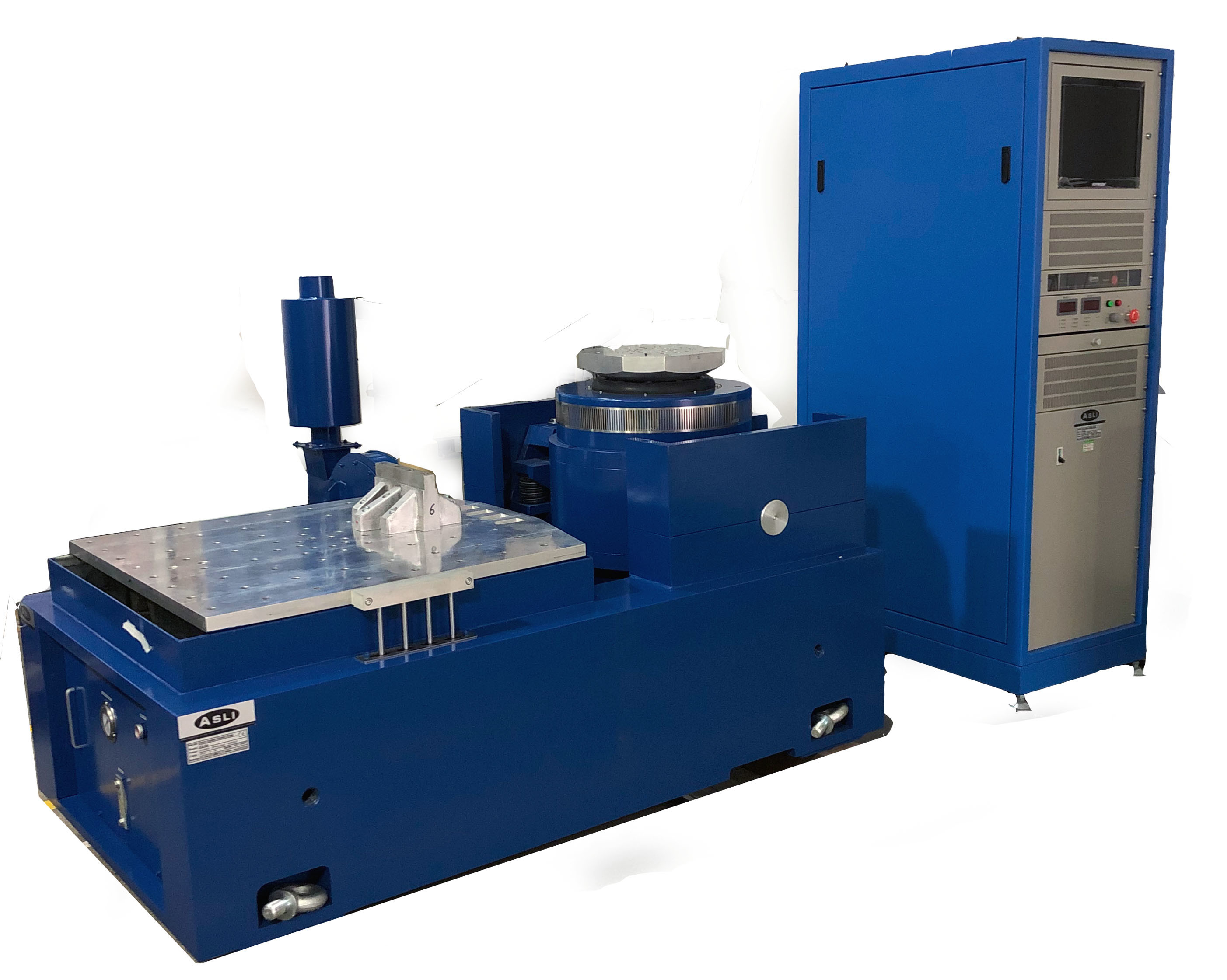

The ES-10 is a high-performance electrodynamic vibration test system delivering 10kN sine force, 51mm peak-to-peak displacement, and a frequency range of 3–3500Hz. Designed for ISTA and laboratory testing, it supports both vertical and horizontal vibration shaker configurations.
To help us recommend the most suitable vibration test system for your application, please prepare the following information and include it in your inquiry:
- Specimen description
- Specimen test mass
- Specimen dimensions
- Test profile (if available)
- Maximum acceleration of test
- X, Y, Z direction test or only Z direction test
| Parameter | Unit | Value |
|---|---|---|
| System Model | — | ES-10 |
| Frequency Range | Hz | 3–3500 |
| Rated Force — Sine | N | 10000 |
| Rated Force — Random | N | 20000 |
| Rated Force — Shock | N | 20000 |
| Maximum Acceleration — Sine | m/s² | 1000 |
| Maximum Acceleration — Random | m/s² rms | 1000 |
| Maximum Acceleration — Shock | m/s² | 2000 |
| Maximum Velocity — Sine | m/s | 1.8 |
| Maximum Velocity — Shock | m/s | 1.8 |
| Maximum Displacement (p-p) | mm | 51 |
| Moving Coil Mass | kg | 12 |
| Dimension of Moving Coil | mm | Dia 240 |
| Max Load | kg | 270 |
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (kg) | Moving Coil (kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-1 | 1000 | 1000 | 3–3500 | 400 | 1.2 | 25 | 70 | 2.5 | Φ150 |
| ES-2 | 2000 | 2000 | 3–3500 | 800 | 1.6 | 25 | 70 | 2.5 | Φ150 |
| ES-2a | 2000 | 2000 | 3–3500 | 300 | 1.6 | 40 | 70 | 8 | Φ230 |
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3–2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3–2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3–2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3–1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |

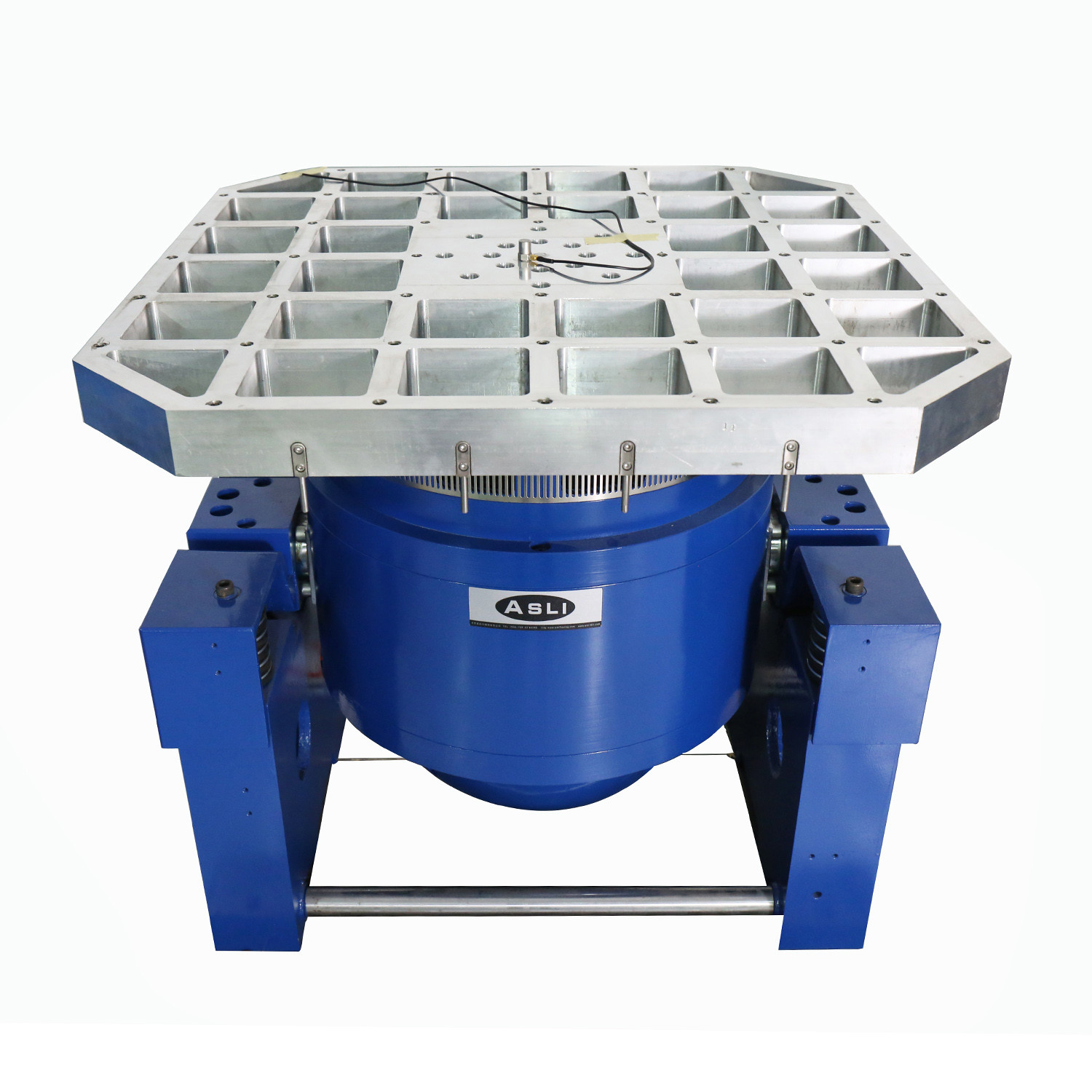

- Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
- Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
- Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
- Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
- Advanced technology move around the system to ensure the dynamic circle of high reliability.

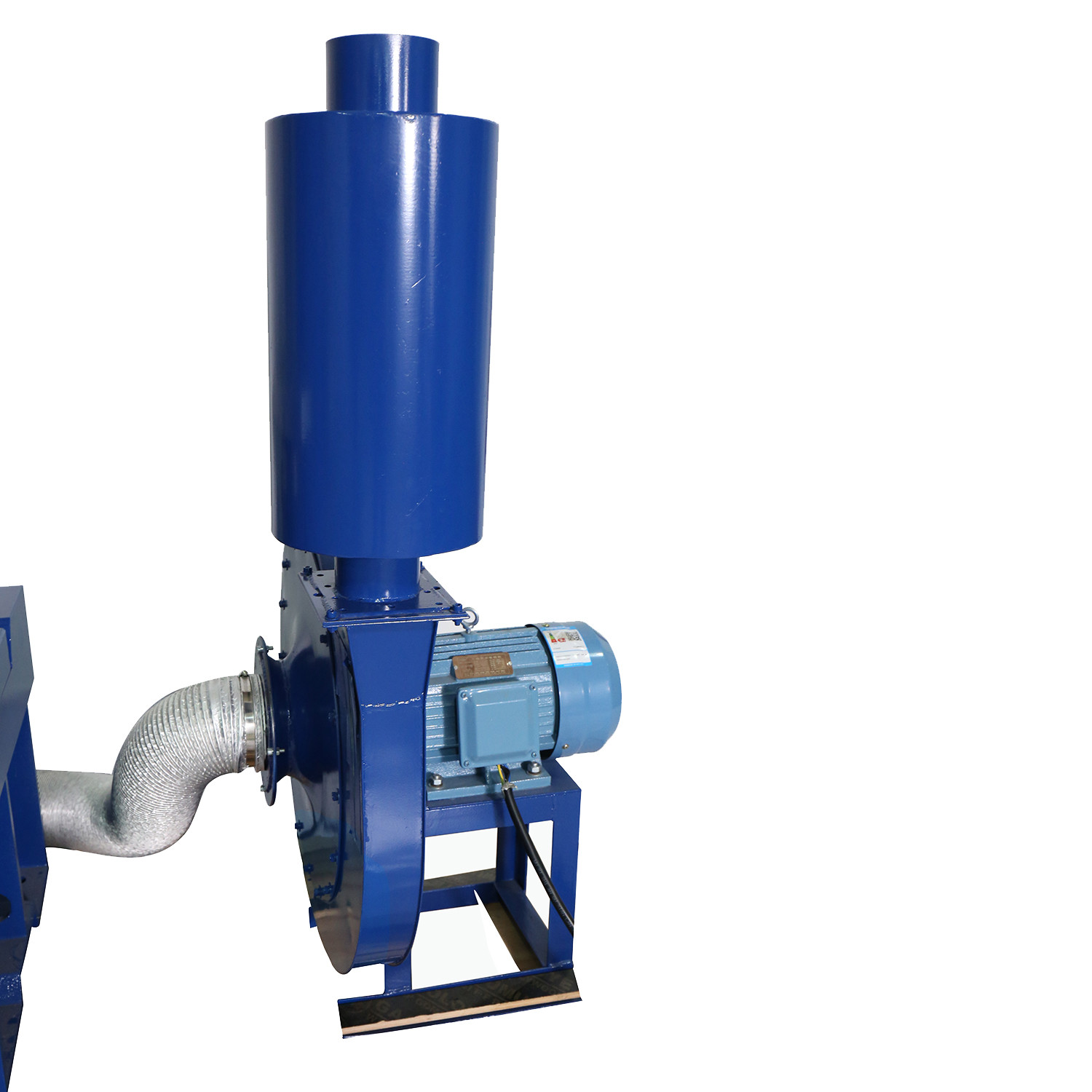

- New duct design and enhance the cooling effect.
- Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table capacity, improve low-frequency performance.
Welcome to contact us for more information and customized solutions.
Product Highlights
10KN electrodynamic vibration test system with 3~3500Hz frequency, 51mm displacement, and 270kg max load. Ideal for ISTA testing across automotive, electronics, and aviation. Features dual magnetic circuit, advanced cooling, and high reliability. Backed by 1-year warranty and global engineer support.
