1.8m/S Vibration Testing Machine , 1000kg.F Mechanical Shaker For Lab
Product Details
| Sine Force: | 10000N | Speed: | 1.8m/s |
|---|---|---|---|
| Displacement: | 51mm | Frequency: | 3~3000HZ |
| Loading: | 270 Kg | Acceleration: | 100g |
| Armature: | 240mm | ||
| Highlight |
1.8m/s vibration testing machine,1000kg.F mechanical shaker,lab vibration testing machine |
||
Product Description
The Mechanical Shaker High Frequency Vibration Tester is a three-axis (XYZ) vibration test machine engineered for precise sinusoidal, broadband random, and shock testing. Built on a double-magnetic circuit structure with self-generated skeleton action circles, airborne support, roller bearings and linear guidance, and trunnion isolation, it delivers reliable performance across demanding laboratory and industrial environments.
This high-frequency vibration shaker is widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and home appliance industries. It supports X, Y, and Z three-axis sinusoidal vibration tests, broadband random vibration tests, classical half-sine pulse tests, and shock response spectrum testing.
- Rated Force: sine force 10000N; random force 10000N; shock force 20000N
- Frequency Range: 3Hz to 3000Hz — fixed frequency, sweep back and forth, sine, random, and shock modes
- Sweep-Frequency Mode: linear, logarithmic, sweep back and forth, fixed frequency
- Sweep-Frequency Times: 1 to 32767
- Sweep-Frequency Time: fixed frequency / single 1–3600 mins; sweep-frequency curves can be displayed
- Max. Acceleration: 1000 m/s² (non-load)
- Max. Speed: 1.8 m/s
- Max. Displacement: 51 mm p-p (non-load), double peak
- Impact Displacement: 51 mm
- Weight of Moving Coil: 14 kg
- Vibration Wave: sine, random, shock

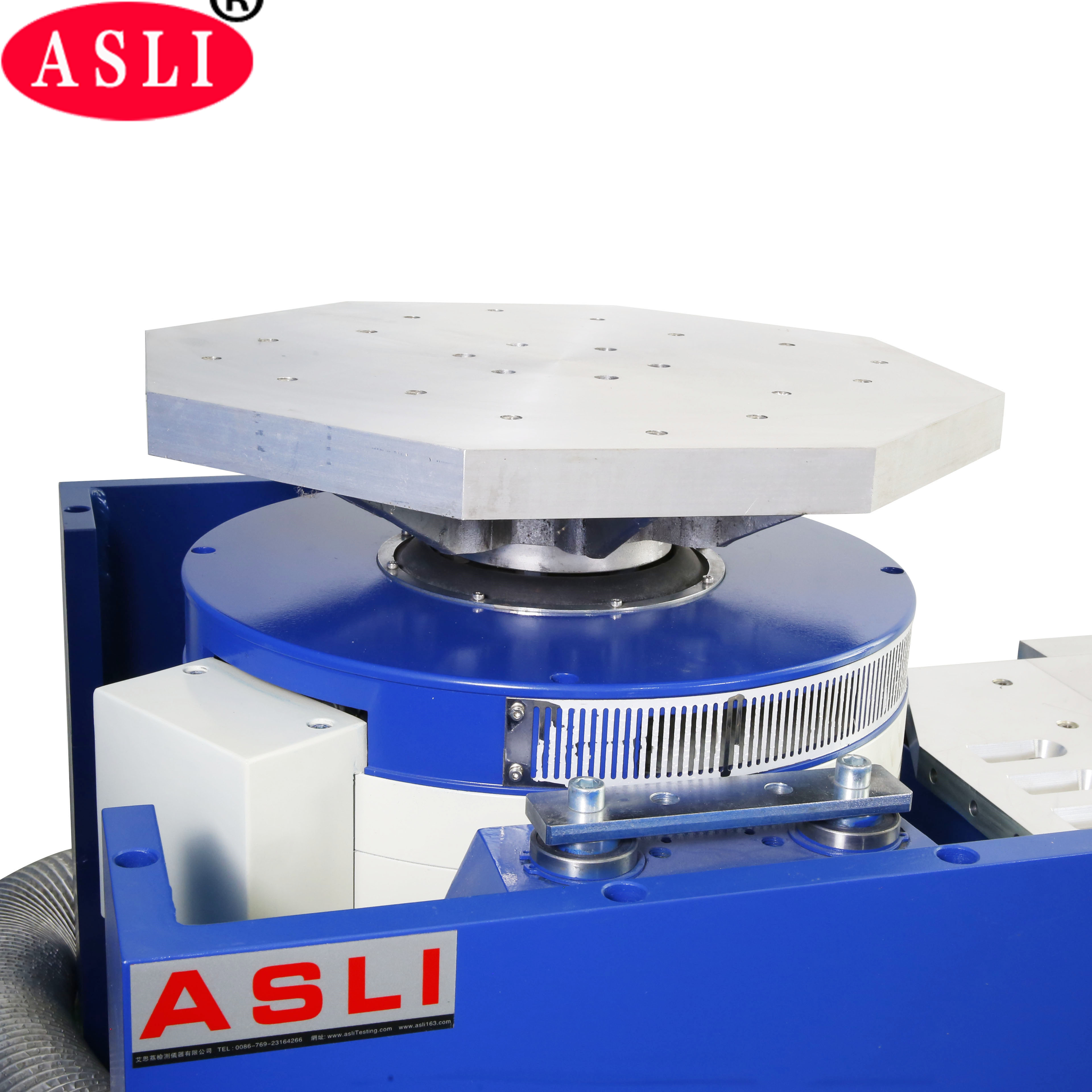

- Diameter of the Moving Coil: Φ240 mm
- Vibration System Dimension: W1060 × H750 × D845 mm
- Vibration System Weight: 960 kg

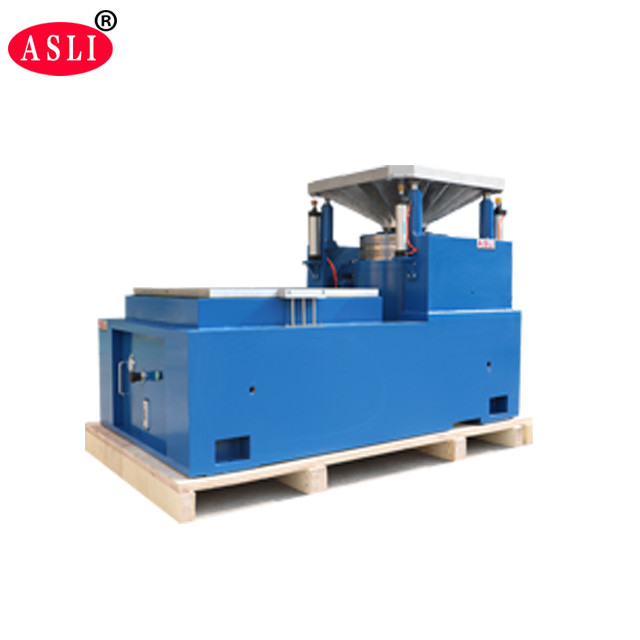

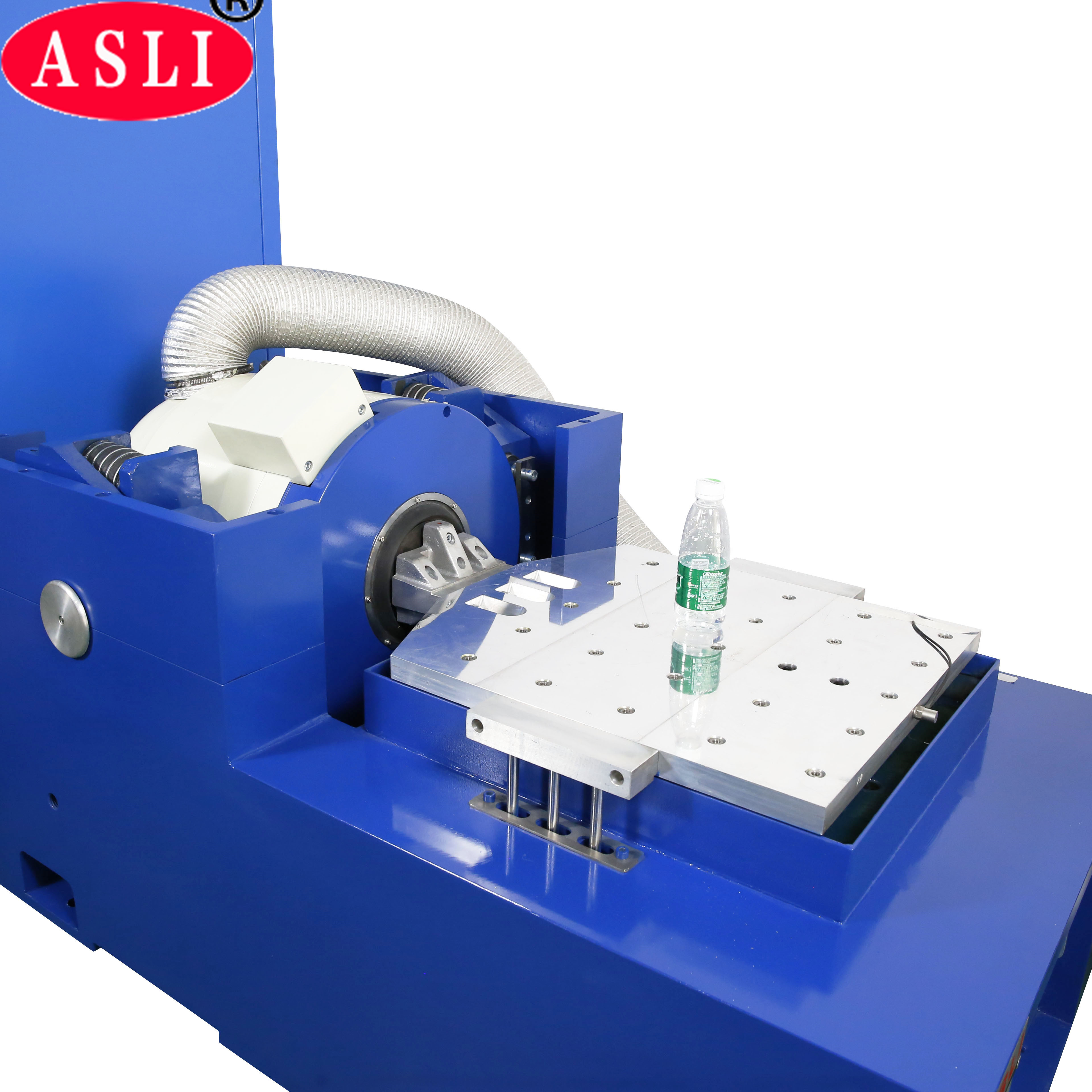

- Includes 600 mm × 600 mm vertical expander and 600 mm × 600 mm horizontal slip table
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
The ES-10 model (highlighted) corresponds to the configuration described in this product listing.

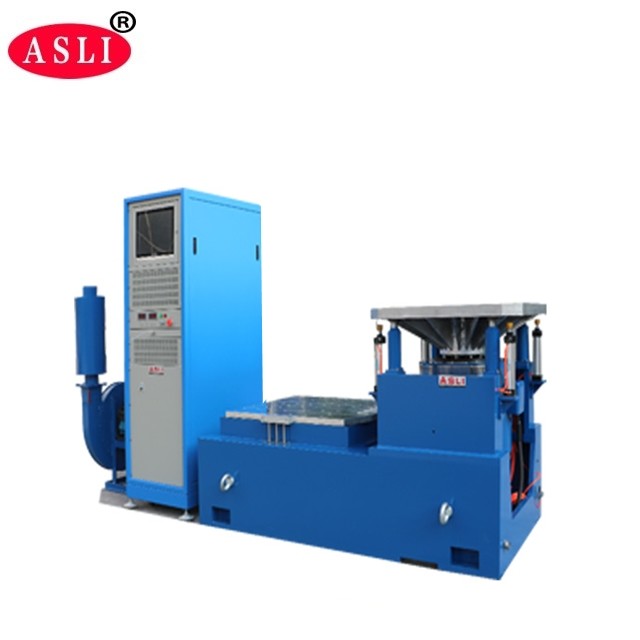

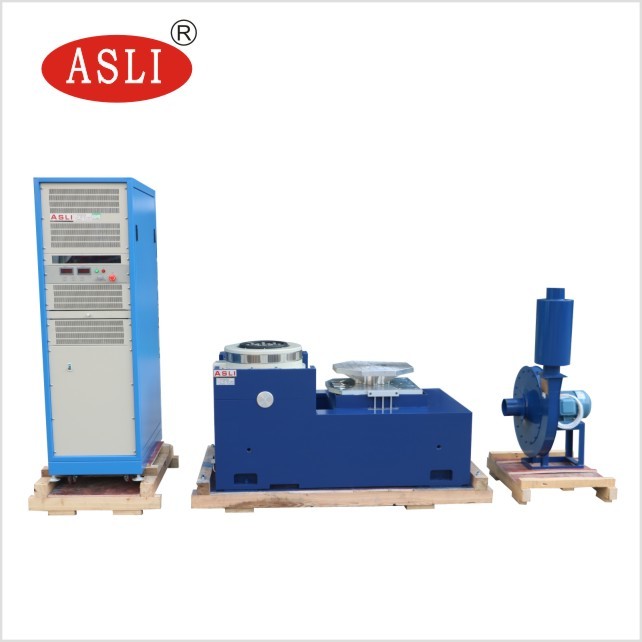

- Vibration Generator — 1 set
- Vibration Controller — 1 set
- Communication Connection Chamber — 1 set
- DA-10 Power Amplifier — 1 set
- Excitation Power — 1 pc
- Driver Software — 1 set
- Cooling System — 1 set
- Industrial Computer — 1 set
- Color Printer — 1 set (optional)
- Acceleration Sensor (including output line) — 1 pc
- Vibration Fixture — 1 set (optional, according to the test sample)
The vibration controller is the latest design from our company, adopting an international advanced distributed system architecture. Its core is the latest TMS320 series 32-bit floating-point high-speed processor from TI. Test reports are automatically generated in Word format. During or after testing, the report can be edited and then generated automatically or manually.
- Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
- Two-magnetic circuit design with low magnetic flux leakage, compact and rational structure.
- Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation, providing strong eccentric load capacity.
- Trunnion isolation foundation dedicated to hormone use, offering convenient mobile installation.
- Advanced technology move-around system ensures high reliability of the dynamic circle.
- New duct design enhances the cooling effect.
- Static stiffness and dynamic stiffness of the bearing small balloon raise the vibration table bearing capacity and improve low-frequency performance.
Product Highlights
ES-10 mechanical shaker delivers 10000N sine force, 3-3000Hz, 1.8m/s, 270kg load, XYZ axis sine/random/shock testing. Dual-magnetic circuit, air suspension, trunnion isolation ensure durability and precision. Ideal for defense, aerospace, electronics. Custom fixtures available.
