3 Axis Sine Vibration Testing Equipment , 60KN Electronic Vibration Machine
Product Details
| Application: | Materila, Automobile Parts, Packing, House Hold Products | Voltage: | 380V |
|---|---|---|---|
| After-sales Service Provided: | Video Technical Support,Online Support,Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service | Warranty: | 1 Year |
| Applicable Industries: | Defence Industry, Civil, Electronic Appliances, Automotive, Spare Parts, Electronics, Aviation | Product Name: | Vibration Test System |
| Shaker Force: | 60KN | Suitable For: | Max Loading 800kgs Test Items |
| Frequency Range: | 3~3500HZ | ||
| Highlight |
3 Axis sine vibration testing,60KN sine vibration testing,60KN electronic vibration machine |
||
Product Description

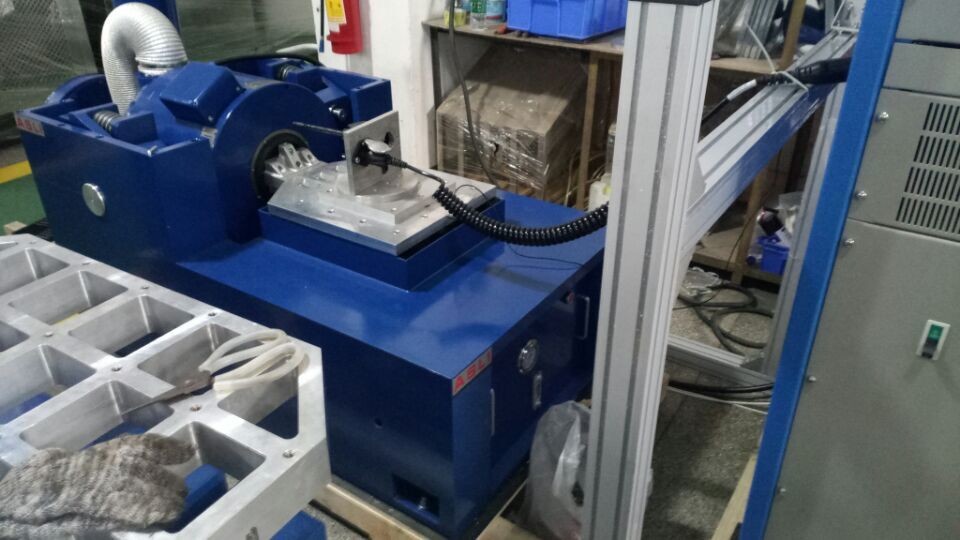

Large-force, high-frequency sine vibration testing system designed for demanding industrial and laboratory applications. The ES-60 model delivers 60 kN rated sine force with a frequency range of 3–3500 Hz, suitable for X, Y, and Z axis testing.
To help us recommend the most suitable vibration test system for your application, please prepare and send the following details with your inquiry:
- Specimen description
- Specimen test mass
- Specimen dimensions
- Test profile (if available)
- Maximum acceleration of test
- X, Y, Z direction test or only Z direction test
| Parameter | Unit | Value |
|---|---|---|
| System Model | — | ES-60 |
| Frequency Range | Hz | 3–3500 |
| Rated Force (Sine) | N | 60000 |
| Rated Force (Random) | N | 60000 |
| Rated Force (Shock) | N | 120000 |
| Maximum Acceleration (Sine) | m/s² | 1000 |
| Maximum Acceleration (Random) | m/s² rms | 1000 |
| Maximum Acceleration (Shock) | m/s² | 2000 |
| Maximum Velocity (Sine) | m/s | 1.8 |
| Maximum Velocity (Shock) | m/s | 1.8 |
| Maximum Displacement (p-p) | mm | 51 |
| Moving Coil Mass | kg | 60 |
| Moving Coil Dimension | mm | Dia 450 |
| Maximum Load | kg | 800 |
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (kg) | Moving Coil (kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-1 | 1000 | 1000 | 3–3500 | 400 | 1.2 | 25 | 70 | 2.5 | Φ150 |
| ES-2 | 2000 | 2000 | 3–3500 | 800 | 1.6 | 25 | 70 | 2.5 | Φ150 |
| ES-2a | 2000 | 2000 | 3–3500 | 300 | 1.6 | 40 | 70 | 8 | Φ230 |
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3–2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3–2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3–2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3–1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
- Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
- Two-magnetic circuit, magnetic flux leakage low, compact structure and rational design.
- Rocker rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
- Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
- Advanced technology move around the system to ensure the dynamic circle of high reliability.

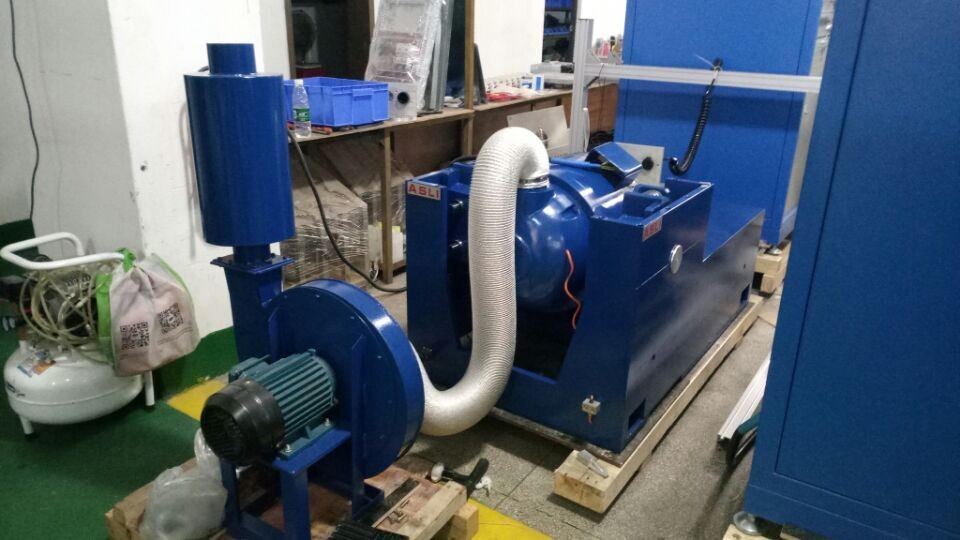

- New duct design and enhanced cooling effect.
- Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table capacity, improve low-frequency performance.
