IEC62133 UN38.3 3000N Electrodynamic Shaker Table Vibration Testing Horizontal

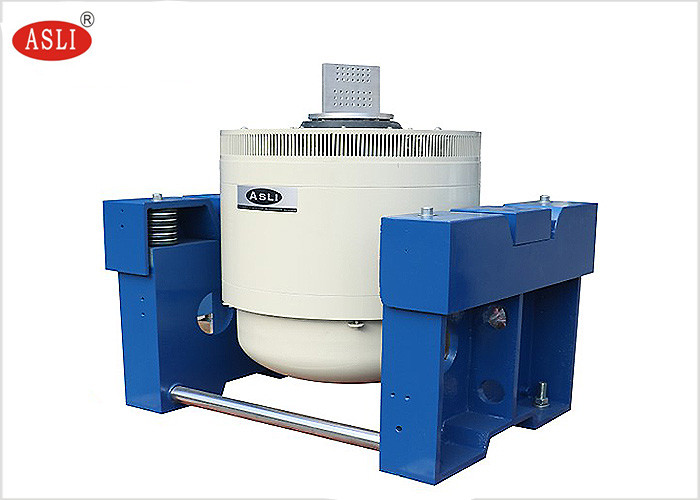

Vibration Machine, Electrodynamic Shaker,Vibration Shaker Table Features:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.
Description Application:
Vibration Machine, Electrodynamic Shaker,Vibration Shaker Table is used to educational, research, and laboratory environments. Adopted the double- magnetic circuit structure, self-generated skeleton action circles, Airborne Support and roller bearings and linear guidance, trunnion isolation advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.
| Model:ES-3 | |
|---|---|
| Sine thrust | 300kgf |
| Random thrust | 300kgf |
| Impact thrust | 600kgf |
| Frequency Range | 2~2500Hz |
| Continued displacement | 25mm |
| The impact of displacement | 25mm |
| Maximum speed | 1.8m/s |
| Maximum acceleration | 981m/s2 |
| Moving coil diameter | Φ150mm |
| Allow eccentric moment | >196N.m |
| Load connection point | 6 piont |
| Equivalent mass of moving parts | 3kg |
| Countertops screw size (standard) | M8 |
| Screw layout table (diameter, circumference) | 8 on Φ100mm,8 on Φ,200mm. |
| Axial isolation frequency | <3Hz |
| Maximum load | 120Kg |
| Magnetic flux leakage | <1mT |
| Dimensions (without packaging)(L×W×H) | 730mm×550mm×650mm |
| Vibration table Weight | 450kg |

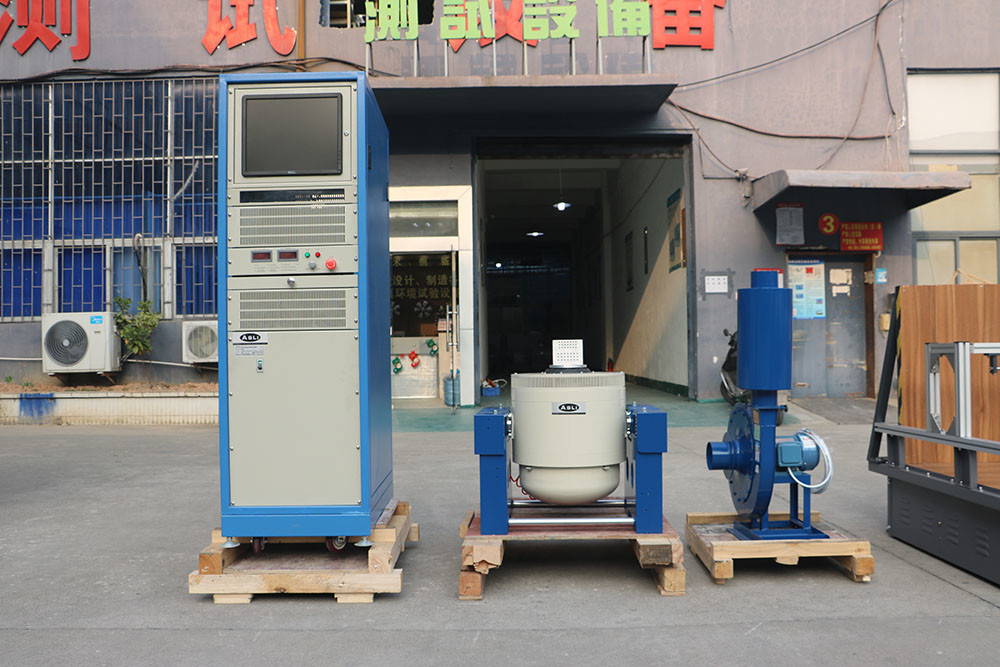

Composition of High Frequency Electromagnetic Vibration Test Machine:

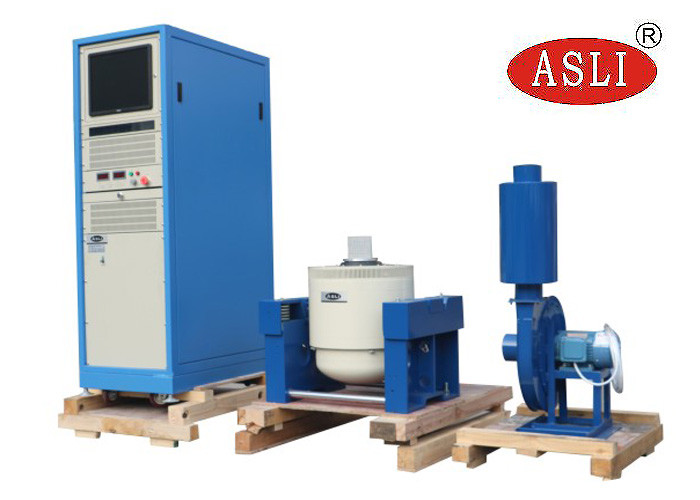

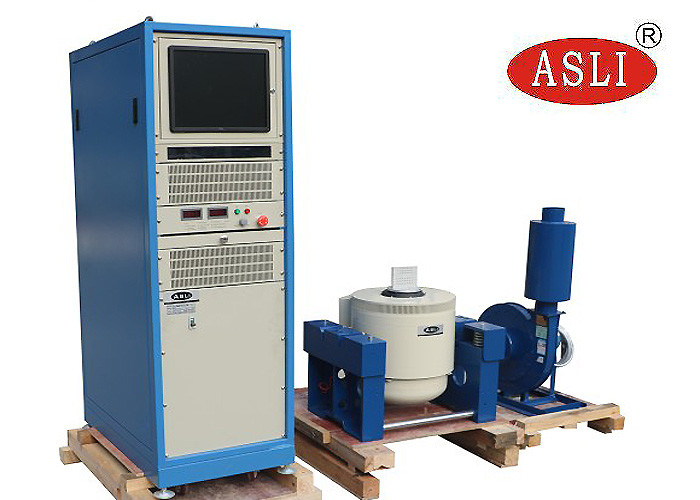

Vibration test bench, power amplify, cooling fan,Slip table,vertical expander
Horizontal Stand features:
Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.
Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.
Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
Built-in oil pump, good structure and easy operating.

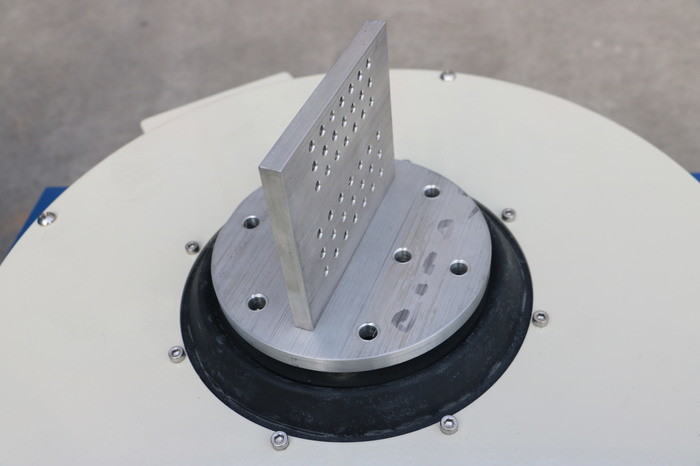

Vertical Extended-bench features:
VT vertical extended-bench and specified clamps, precision calculated, elaborate design, to ensure the customer acquired the best performance according to perfect
