3500Hz 3 Axis Vibration Table , 1000N Electrodynamic Shaker Systems
Product Details
| Customized Support: | OEM | Brand: | ASLI |
|---|---|---|---|
| Place Of Origin: | Guangdong, China | Power: | Electronic |
| Certificate: | ISO 9001:2008 | Packing Material: | Poly Wood Case |
| Vibration: | 3 Axis | Vibration Force: | Customized |
| Table Size: | Customized | Max Load: | 450Kg |
| Highlight |
3500Hz 3 axis vibration table,1000N electrodynamic shaker system,vibration shaker table with warranty |
||
Product Description
The 3500Hz 3 Axis Vibration Table is a professional-grade electrodynamic shaker system designed for precision quality testing of auto parts and electronic components. With a rated sine force ranging from 1000N to 3,500,000N and a frequency range of 3–3500Hz, this system delivers reliable performance across demanding industrial, research, and laboratory environments.
- Well-designed dynamic circle skeleton with a higher stage axial resonance frequency.
- Two-magnetic circuit design ensures low magnetic flux leakage, compact structure, and rational layout.
- Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation, providing excellent eccentric load capacity.
- Trunnion isolation foundation dedicated to hormone use, offering convenient mobile installation.
- Advanced technology integrated into the moving system ensures high reliability of the dynamic circle.
- New duct design enhances the cooling effect.
- Static stiffness and dynamic stiffness of the bearing balloon are optimized, raising the vibration table bearing capacity and improving low-frequency performance.

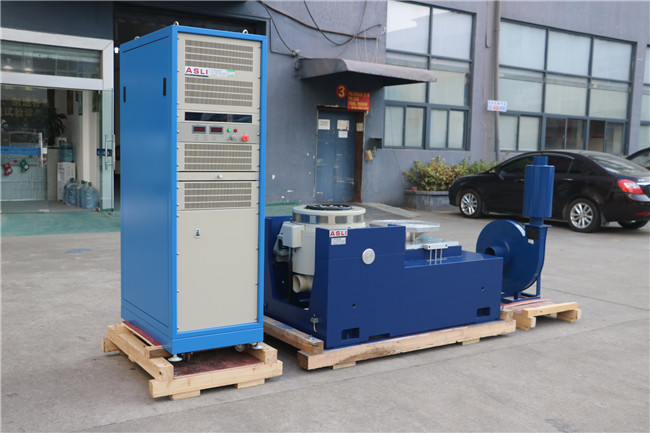

The complete system consists of the following components:
- Vibration test bench
- Power amplifier
- Cooling fan

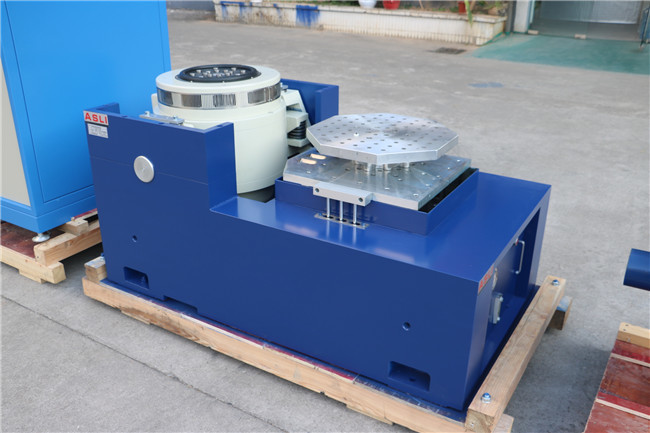

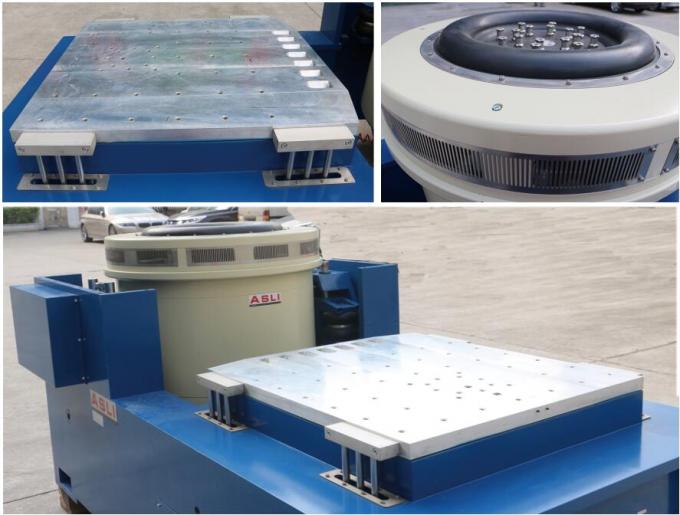

- Slip table
- Vertical expander
- Within a small loading bench, higher acceleration and working frequency are realized, improving the loading capacity and overall performance of the machine bench.
- The horizontal bench and vibration bench are an integral type with a perfect structure, offering convenience for installation and adjustment.
- Static pressure track, V-shape design, with capacity for slope-resistant and bias-loading resistant operation.
- Built-in oil pump with good structure and easy operation.
The VT vertical extended-bench and specified clamps are precision calculated and elaborately designed to ensure the customer acquires the best performance according to their specific requirements.
The 3500Hz 3 Axis Vibration Table is used in educational, research, and laboratory environments. It adopts a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings, linear guidance, and trunnion isolation advanced modern technology. This system can complete X, Y, Z three-axis sinusoidal vibration tests and broadband random vibration tests, as well as classical (half-sine, trapezoidal, sawtooth wave) pulse and shock response spectrum tests.
These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, home appliances, and other fields.
| Brand | ASLI |
|---|---|
| Type | Vertical + Horizontal |
| Transmission Structure | Electromagnetic Shaker |
| Works | Electrodynamic Vibration |
| Axis | 3 Axis |
| Frequency Range | 3–3500 Hz |
| Amplitude | 51 mm |
| Sweep Rate | 1 octave/min |
| Number of Axes | 3 (X-Y-Z) |
| Duration | 90 min, 2 cycles per axis |
| Supporting Device | Coil Spring |
| Customized | Customized |
| Rated Sine Force (N) | 1000 to 3,500,000 |
| Frequency Range (Hz) | 3 to 3500 |
| Rated Velocity (M/S) | 1.2 to 1.8 |
| Function | High Frequency Vibrating Screen |
| Usage | Experiments Shaker |
| Object | Electronic Parts |
| Running Track | Circular Vibrating Screen |
| Condition | New |
| Rated Random Force (N) | 1000 to 3,500,000 |
| Rated Acceleration (M/S²) | 400 to 1000 |
| Rated Displacement (P-P, mm) | 25 to 91 |
| Power | AC380V, 3 pH, 3 Lines |
| Warranty | 1 Year |
| Certificate | CE |
Product Highlights
ASLI 3 Axis Vibration Table with 1000N electrodynamic shaker, 3-3500Hz frequency, 450Kg max load. ISO 9001:2008 certified, OEM customization available. Ideal for auto parts quality testing with durable, efficient performance.
