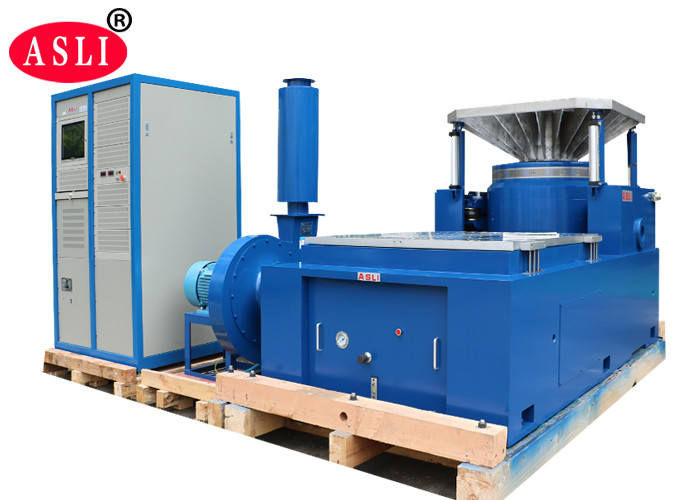

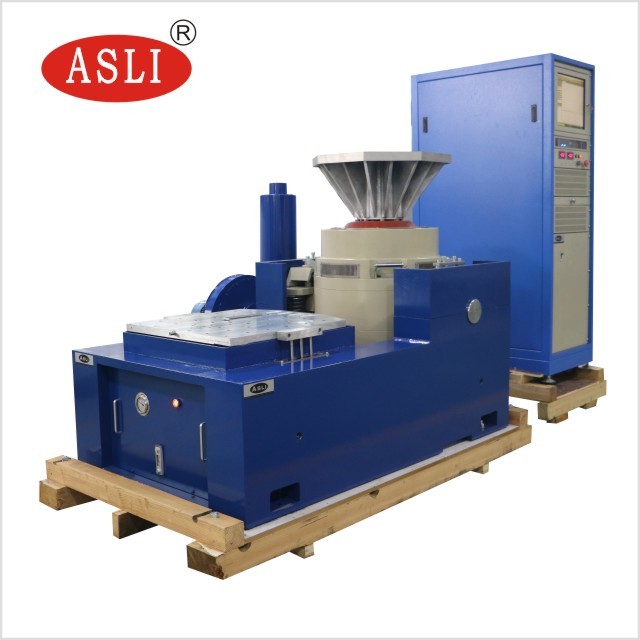

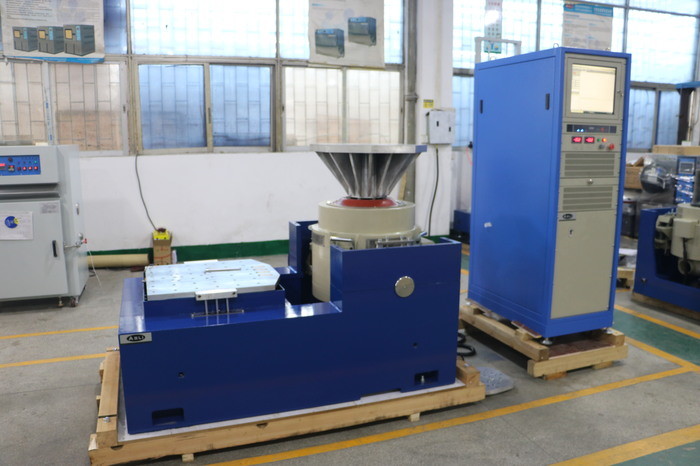

Random 6KN Horizontal Slip Table Vibration Testing ISTA 6 Standard
Product Details
| Sine Force: | 6000N | Speed: | 1.8m/s |
|---|---|---|---|
| Displacement: | 25mm | Frequency: | 3~3500HZ |
| Loading: | 180kg | Acceleration: | 100g |
| Armature: | 450mm | Brand: | ASLI |
| Table Size: | 500x500mm | ||
| Highlight |
ISTA 6 slip table vibration testing,6KN horizontal slip table vibration testing,ISTA 6 random vibration table |
||
Product Description
The Random 6KN Horizontal Slip Table Vibration Testing System is engineered to meet the ISTA 6-Amazon standard for random vibration testing. This dual-axis (vertical and horizontal) slip table machine delivers reliable, repeatable results for a wide range of industrial and laboratory testing applications.
MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, and other international testing standards.
- Automotive parts and systems — qualification testing
- Electronic assembly and computer equipment testing
- Avionics and hardware testing
- Satellite component testing
- Product and package testing
- General stress screening
- Rugged suspension system and linear motion guiding — strong carrying capacity, excellent guiding functions, and high stability.
- Load center airbag with high static stiffness and low dynamic stiffness — strong carrying capacity and perfect performance on amplitude variation.
- High-efficiency Class D power switching with 3-sigma peak current — finest power consumption and minimized harmonic distortion.
- Quick self-diagnosis with safety interlock — high safety and reliability.
- Airbag shock isolation device for the vibration platform — no additional foundation required, perfect reproduction of vibrational waves, and reduced vibration transmittance.

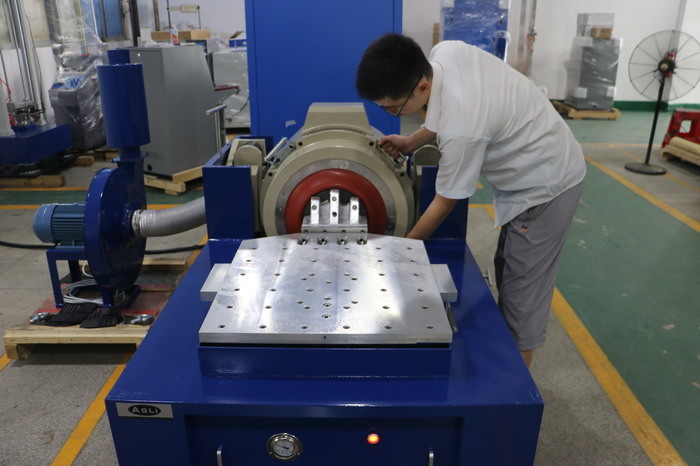

- Provides horizontal and vertical expansion platforms for different applications.
- Simple controller operation.
Bubble Bags + Vacuum Packing + Plywooden Cases
| Item | Description |
|---|---|
| Sine Force | 5.88 KN |
| Shock Force | 11.76 KN |
| Frequency Range | 5–3000 Hz |
| Displacement | 51 mm |
| Max. Velocity | 2 m/s |
| Max. Acceleration | 981 m/s² (without loading) |
| Armature Diameter | 200 mm |
| Permitted Load Torque | >300 N·m |
| Effective Armature Mass | 6 kg |
| Max. Load Capacity | 100 kg |
| Magnetic Leakage | ≤1 mT |
| Axial Vibration Isolation Frequency | <3 Hz |
| Load Attachment | 16 stainless steel M8 inserts |
| Dimension (L×W×H) | 850 × 665 × 760 mm |
| Approx. Weight | 990 kg |
Automobile Battery EN50604 IEC62133 UN38.3 Vibration Test Bench for Lab Testing
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
- Well-designed dynamic circle skeleton with a higher stage axial resonance frequency.
- Two-magnetic circuit design — low magnetic flux leakage, compact structure, and rational layout.
- Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation — excellent eccentric load capacity.
- Trunnion isolation foundation dedicated to vibration isolation — convenient mobile installation.
- Advanced technology in the moving system ensures high reliability of the dynamic circle.
- New duct design enhances the cooling effect.
- Static stiffness and dynamic stiffness of the bearing balloon are optimized — raising the vibration table bearing capacity and improving low-frequency performance.
Product Highlights
ASLI 6KN horizontal slip table vibration tester meets ISTA 6, MIL-STD, ISO, ASTM standards. Features 6000N sine force, 3-3500Hz, 180kg load, 100g acceleration, airbag isolation, and D-class power efficiency. Ideal for automotive, electronics, and packaging testing. Custom options available.
