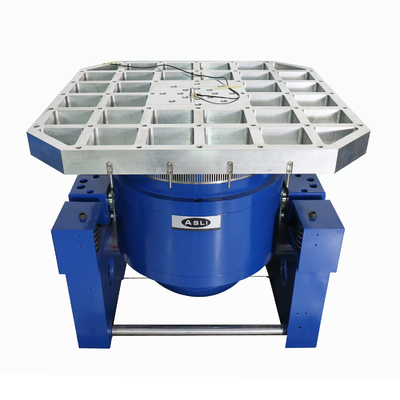

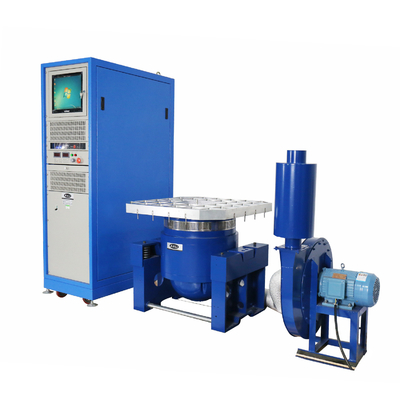

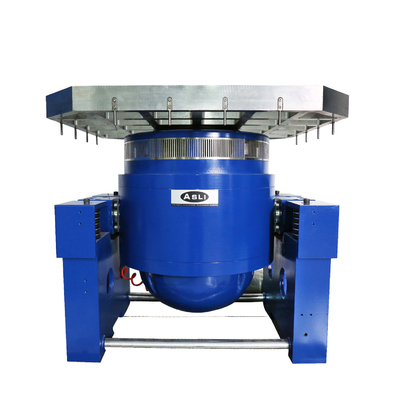

Customized High Frequency Vibration Shaker for Dynamic Vibration Testing with Air Cooling and Sample Fixture and Options
Product Details
| Application: | Materila, Automobile Parts, Packing, House Hold Products | Voltage: | 380V |
|---|---|---|---|
| After-sales Service Provided: | Video Technical Support,Online Support,Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service | Warranty: | 1 Year |
| Applicable Industries: | Civil, Electronic Appliances, Automotive, Spare Parts, Electronics, Aviation | Product Name: | Vibration Test System |
| Shaker Force: | 3KN | Suitable For: | Max Loading 300kgs Test Items |
| Frequency Range: | 3~3500HZ | Vibration Mode: | Sinusoidal |
| Customized Support: | OEM | Type: | High Frequency Type |
| Power Supply: | AC 220V/50Hz | Shaker Force: | 60KN |
| Protection System: | Overload Protection | Max Load: | 300Kg |
| Noise Level: | Less Than 70 DB | Platform: | 600*600mm |
| Skaker: | Vibration Shaker | Test: | Sine, Random, Shock, RSTD |
| Maximum Velocity: | 2.5 M/s | Color: | Blue |
| Test Zone: | 1000L | Loading: | 300kg |
| Highlight |
3KN high frequency vibration shaker,300kg loading high frequency vibration shaker,3KN vibration test system |
||
Product Description
This customized high-frequency vibration shaker is engineered for dynamic vibration testing with air cooling, a sample fixture, and configurable options. It delivers reliable performance for sine, random, and shock testing across a wide frequency range.
To help us recommend the most suitable vibration test system for your application, please prepare and send the following details with your inquiry:
- Specimen description
- Specimen test mass
- Specimen dimensions
- Test profile (if available)
- Maximum acceleration of test
- Test direction: X, Y, Z axes or Z axis only
| Parameter | Unit | Value |
|---|---|---|
| System Model | — | ES-3 |
| Frequency Range | Hz | 3 – 3500 |
| Rated Force — Sine | N | 3000 |
| Rated Force — Random | N | 3000 |
| Rated Force — Shock | N | 6000 |
| Maximum Acceleration — Sine | m/s² | 1000 |
| Maximum Acceleration — Random | m/s² rms | 1000 |
| Maximum Acceleration — Shock | m/s² | 2000 |
| Maximum Velocity — Sine | m/s | 1.6 |
| Maximum Velocity — Shock | m/s | 1.6 |
| Maximum Displacement (p-p) | mm | 25 |
| Moving Coil Mass | kg | 3.5 |
| Moving Coil Dimension | mm | Ø 230 |
| Maximum Load | kg | 100 |
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (kg) | Moving Coil (kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-1 | 1000 | 1000 | 3–3500 | 400 | 1.2 | 25 | 70 | 2.5 | Φ150 |
| ES-2 | 2000 | 2000 | 3–3500 | 800 | 1.6 | 25 | 70 | 2.5 | Φ150 |
| ES-2a | 2000 | 2000 | 3–3500 | 300 | 1.6 | 40 | 70 | 8 | Φ230 |
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3–2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3–2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3–2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3–1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
- Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
- Two-magnetic circuit, low magnetic flux leakage, compact and rational structure.
- Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation, providing eccentric load capacity.
- Trunnion isolation foundation dedicated to hormone use, with convenient mobile installation.
- Advanced technology move-around system ensures high reliability of the dynamic circle.
- New duct design enhances the cooling effect.
- Static stiffness and dynamic stiffness of the bearing small balloon raise the vibration table capacity and improve low-frequency performance.
Any questions about the Air Cooling High Frequency Vibration Shaker Vibration Test System Dynamic Shaker? Welcome to contact us for more information or a customized solution.
Product Highlights
Air-cooled high-frequency vibration shaker with 3~3500Hz range, 3000N sine/random force, 300kg max load, and under 70dB noise. Supports sine, random, shock, and RSTD testing. OEM customization, sample fixture, overload protection, and 1-year warranty included.
