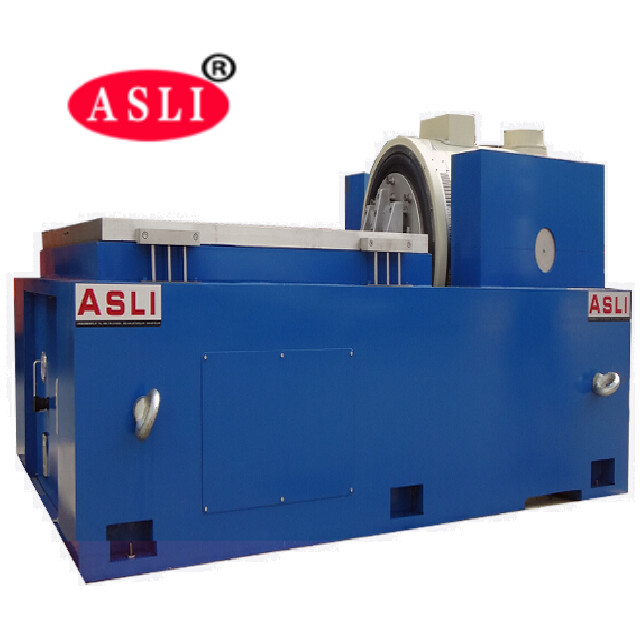

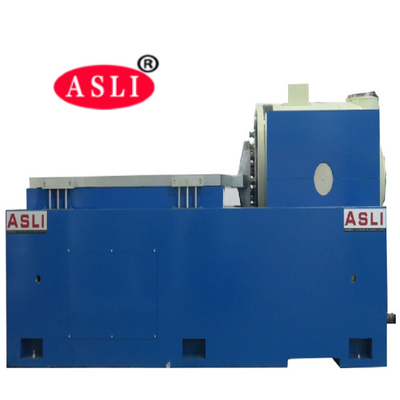

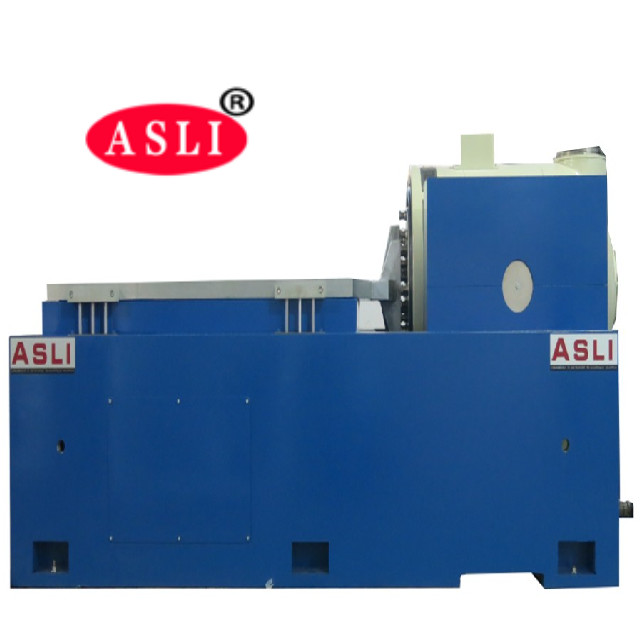

380V Mechanical Shock Machine , 50Hz Vibration Shaker Table
Product Details
| Customized Support: | OEM | Brand: | ASLI |
|---|---|---|---|
| Place Of Origin: | Guangdong, China | Power: | Electronic |
| Certificate: | ISO 9001:2008 | Packing Material: | Poly Wood Case |
| Vibration: | 3 Axis | Vibration Force: | Customized |
| Table Size: | Customized | Max Load: | 750 |
| Highlight |
380V mechanical shock machine,50Hz vibration shaker table,mechanical shock machine with warranty |
||
Product Description
This vibration test system is primarily designed for product vibration and shock environment testing, environmental stress screening, and reliability testing. The electromagnetic vibration tester is fully engineered according to battery-related testing standards, simulating vibration conditions under controlled parameters. The battery or battery pack is secured to the vibration table and subjected to prescribed frequency, acceleration, and displacement along three mutually perpendicular axes. Throughout testing, the battery must not leak, lose charge, break, catch fire, or explode.
The application scope of vibration testing is extremely broad, covering circuit boards, batteries, aircraft, ships, rockets, missiles, automobiles, home appliances, and many other industrial products.
- Air-cooled electro-dynamic shaker

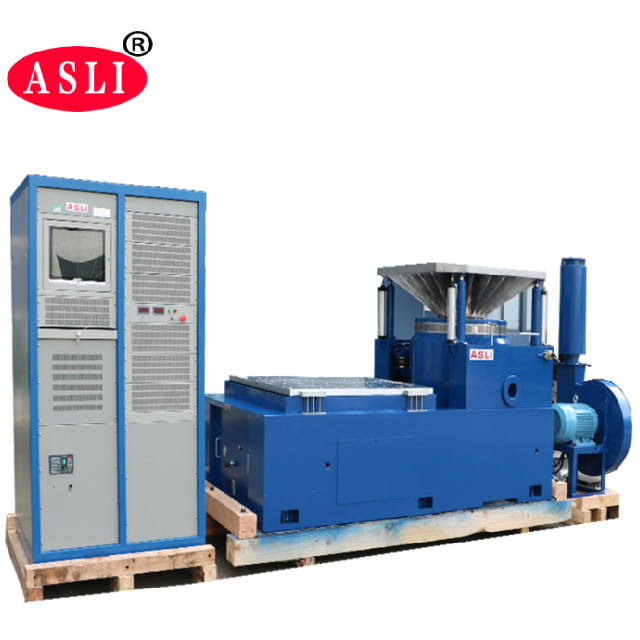

- Vibration controller and power amplifier integrated into an all-in-one cabinet
- Achieves 2400 Newton peak sine thrust
- X, Y, Z three-axis testing capability
- Fixed-frequency sinusoidal vibration
- Swept vibration
- Random vibration
- Classical shock
- Environmental testing
- Stress screening testing
- Vibration testing
- Easy installation — can be performed by the user
- User interface: LCD touch screen for local mode and PC-Windows (via Ethernet) for remote mode
- Local mode: quick start of pre-defined tests; dozens of test specifications can be stored
- Remote mode: full system operation including test definition, storing test specifications, test control, test data review, and documentation
| Maximum sine excitation force | 5000 Kg.f peak |
|---|---|
| Maximum random vibration force | 5000 Kg.f r.m.s. |
| Maximum shock vibration force | 10000 Kg.f peak |
| Frequency range | DC ~ 4000 Hz |
| Maximum displacement | 75 mm p-p (peak-to-peak) |
| Maximum speed | 1.8 m/s |
| Maximum acceleration | 100 G (980 m/s²) |
| First resonant frequency | 3500 Hz |
| Maximum load | 750 kg |
| Moving coil diameter (working mesa diameter) | 450 mm |
| Moving coil mass | 50 kg |
| Mesa screw | 13 × M8 |
| Magnetic flux leakage | < 10 gauss |
| Dimensions | 800 mm × 800 mm × 800 mm (vertical machine) |
| Weight | Approximately 1500 kg |
| Function | Temperature, air pressure, displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic, and lack-of-input protection |
|---|
| Hardware configuration | 2-channel input, 1-channel input |
|---|---|
| Control computer | Original Lenovo computer, liquid crystal display (with keyboard and optical mouse) |
| Software | Chinese/English operation, time-domain and frequency-domain analysis, signal source, sine sweep frequency analysis, etc. WORD can automatically generate test reports; signals and data display, storage, test parameter setup, and analysis functions |
| Operating system | Windows 2000 / XP |
| Acceleration sensor B&W | Frequency domain: 1–2000 Hz; sensitivity: 50 mV/g; temperature range: −24 to 250 °C |
| Electrical source | 3-phase, 380V / 50Hz |
|---|
Product Highlights
ASLI 380V mechanical shock machine with 3-axis vibration, 750kg max load, and 50Hz operation. ISO 9001:2008 certified, OEM support, customizable table size and force. Ideal for battery, automotive, and electronics reliability testing.
