10000N Mechanical Shaker Table , AC380V Random Vibration Table
Product Details
| Vibration Direction: | Xyz Axis | Vibration Wave: | Random Sine |
|---|---|---|---|
| Displacement: | 51mm | Table Size: | 800*800mm |
| Application: | LED, Auto Parts | Power: | AC380V 3 Phase 5 Lines |
| Highlight |
AC380V mechanical shaker table,10000N mechanical shaker table,AC380V random vibration table |
||
Product Description

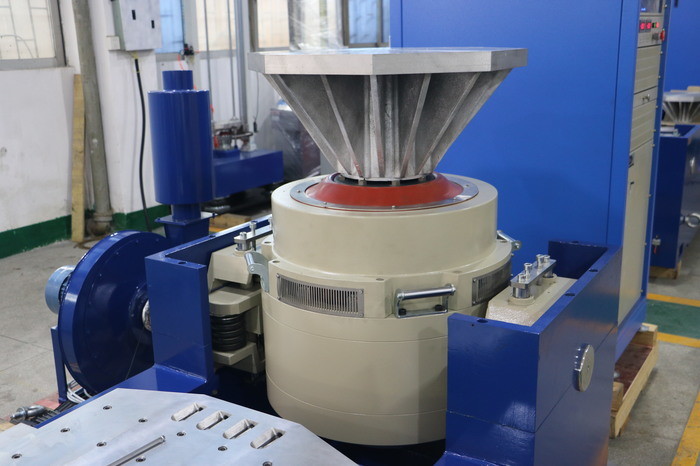

The 10000N Mechanical Shaker Table (AC380V) is a high-frequency XYZ-axis vibration tester designed for random, sine, and mechanical shock testing. It delivers precise, repeatable vibration simulation for product reliability and durability assessment across industrial and manufacturing applications.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| Model | Bench Size (mm) | Frequency Range (Hz) | Weight of Moving Parts (kg) |
|---|---|---|---|
| LT0303 | 300×300×22 300×300×26 300×300×30 |
5–1000 5–1500 5–2000 |
6.6 7.8 9.0 |
| LT0404 | 400×400×22 400×400×26 400×400×30 |
5–1000 5–1400 5–2000 |
11.2 13.2 16.0 |
| LT0505 | 500×500×25 500×500×30 500×500×35 |
5–1000 5–1500 5–2000 |
19.3 23.1 27.0 |
| Model | Weight (kg) | Max. Frequency (Hz) | Bench Size |
|---|---|---|---|
| VT300 | 10 | 2000 | Φ300 |
| VT400 | 16 | 2000 | Φ400 |
| VT500 | 25 | 1500 | Φ500 |
| VT600 | 35 | 1000 | Φ600 |
| VT0303 | 15 | 2000 | 300×300 |
| VT0404 | 22 | 1500 | 400×400 |
| VT0505 | 30 | 500 | 500×500 |
| VT0606 | 58 | 350 | 600×600 |
| VT0808 | 140 | 350 | 800×800 |
| VT1010 | 180 | 350 | 1000×1000 |
Supports sine, random, resonant search and dwell, typical impact, and road simulation modes for comprehensive vibration testing.
The central load airbag offers large static stiffness, small dynamic rigidity, and strong carrying capacity with excellent amplitude change response.
Double magnetic design reduces flux leakage, and the magnetic field is uniformly solved to provide strong electromagnetic field control circuit interference.
FAQ:
Q1: What is an Electrodynamic Vibration Shaker?
RE: An electrodynamic vibration shaker is a testing system used to simulate vibration conditions that products may experience during transportation, operation, or service. It is widely used for reliability, durability, and qualification testing.
Q2: What products can be tested?
RE: It can be used for electronic components, automotive parts, batteries, aerospace components, electrical products, packaging, communication equipment, and other products requiring vibration testing.
Q3: What vibration tests can the shaker perform?
RE: Depending on the system configuration, it can perform sine vibration, random vibration, shock testing, resonance search, frequency sweep, and other programmable vibration tests.
Q4: What is the maximum test frequency?
RE: The maximum frequency depends on the model and configuration. Different shaker models are available for different frequency requirements. Please provide your required frequency range so we can recommend a suitable model.
Q5: How do I select the correct shaker model?
RE: The main factors include:
- Maximum sample weight
- Sample dimensions
- Required vibration direction
- Frequency range
- Maximum acceleration
- Displacement
- Required vibration test standard
Based on these parameters, we can recommend a suitable shaker system.

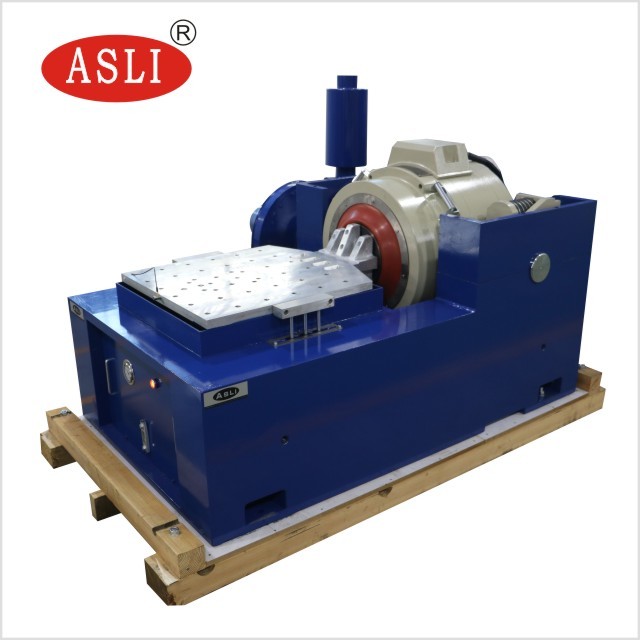

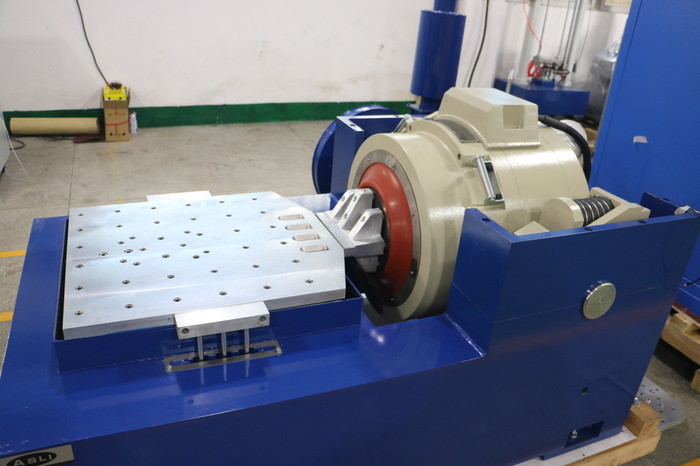

Q6: Can the shaker perform both vertical and horizontal vibration?
RE: Yes. Depending on the configuration, the system can be supplied with a vertical test setup, horizontal test setup, or both.
Q7: Can it perform random vibration testing?

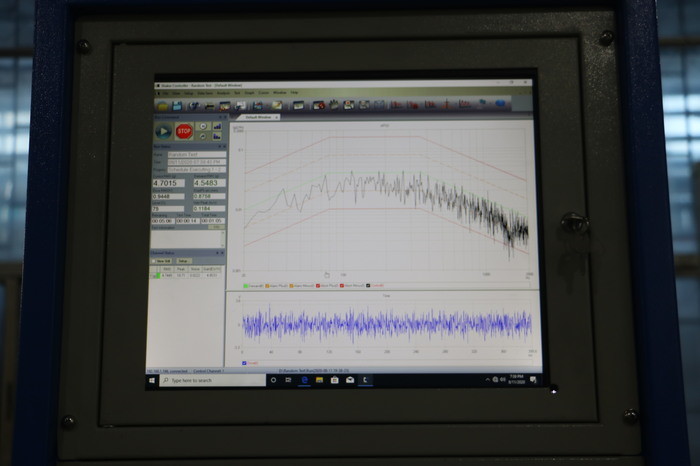

RE: Yes. A suitable vibration controller can be configured for random vibration testing, including PSD-based test profiles.
Q8: Can it perform shock testing?
RE: Yes, provided that the selected shaker system has sufficient force, displacement, and acceleration capability for the required shock profile.
An electrodynamic vibration shaker offers several advantages for high-frequency vibration testing:
- Wide frequency range: Suitable for both low-frequency and high-frequency vibration tests, especially for electronic and automotive components.
- High control accuracy: Frequency, acceleration, displacement, velocity and test duration can be precisely controlled.
- Fast response: The electrodynamic drive system responds quickly to control signals, making it suitable for sweep vibration tests.
- Stable vibration output: Closed-loop control helps maintain stable vibration levels throughout the test.
- Programmable testing: Test parameters such as frequency range, sweep rate, acceleration and number of cycles can be programmed automatically.
- Suitable for high-frequency testing: Particularly suitable for PCB/PCBA, automotive electronics, sensors, connectors, batteries and other electronic components.
- High automation: Test programs can be saved and executed automatically, improving testing efficiency and repeatability.
Besides vibration testers, our product range also covers:
- Temperature / Humidity Test Series: Temperature humidity test chamber, walk-in stability chamber, thermal shock test chamber, temperature humidity UV test chamber, ramp rate temperature chamber.
- Aging Test Series: High temperature oven, vacuum drying oven, air ventilation aging test chamber, steam aging test chamber, ozone test chamber, burn-in test equipment.
- Weather Simulation Test Series: Rain spray test chamber, dust test chamber, xenon lamp aging test chamber, UV resistance test chamber.
- Mechanical Test Series: Vibration test machine, drop test machine, bump test machine, acceleration mechanical shock tester, and more.
Product Highlights
10000N mechanical shaker table with XYZ axis, random sine vibration, 51mm displacement, 800x800mm table. Ideal for LED and auto parts testing. AC380V 3-phase power. Features multi-mode regulation, strong carrying capacity, and interference control. Custom options available.
