ES-3 High Frequency Vertical Electrodynamic Vibration Shaker MIL-STD-810F Standard
Product Details
| Vibration Direction: | Vertical | Acceleration: | 100g |
|---|---|---|---|
| Moving Coil Weight: | 3.5kg | Frequency: | 5Hz~ 3500Hz |
| Usage: | High Frequency Vibration Test | Standard: | MIL-STD-810F,MIL-STD-883E |
| Highlight |
vertical electrodynamic vibration shaker,MIL-STD-810F electrodynamic vibration shaker,MIL-STD-810F high frequency vibration shaker |
||
Product Description
High Frequency Vertical Electrodynamic Vibration Shaker with ISO CE Certification
Vibration test system is mainly used for products vibration and shock environment test, environmental stress screening test, reliability test. Electromagnetic vibration tester completely according to the standard of battery related testing design, simulation under the certain condition of the vibration test of battery, the battery or battery pack is fixed on the vibration table, according to the prescribed frequency, acceleration and displacement mode along the battery sample vibration of three mutually perpendicular direction measured battery should not leak, don't lose heart, not broken, no fire and explosion.
| Electrodynamic Vibration Shaker Parameters: | ||||
| Maximum sine excitation force | 300Kg.f peak | |||
| The biggest random vibration force | 300Kg.f r.ms | |||
| The biggest shock vibration force | 600Kg.f peak | |||
| Frequency Range | DC~4000 Hz | |||
| Maximum displacement | 25 mm p-p(peak-to-peak value) | |||
| Maximum speed | 1.6m/s | |||
| Maximum acceleration | 100G(980 m/s2) | |||
| First resonant frequency | 2500Hz | |||
| The maximum load and acceleration:F=M.A | ||||
| 5G(49m/s2) | 10G(98m/s2) | 20G(196m/s2) | 30G(294m/s2) | |
| 57kg | 27kg | 12kg | 7kg | |
| Maximum load | 120 kg | |||
| Bration isolation frequency | 2.5 Hz | |||
| Moving coil diameter (working mesa diameter) | Diameter of 150 mm | |||
| The quality of moving coil | 3kg | |||
| Maximum load | 50Kg | |||

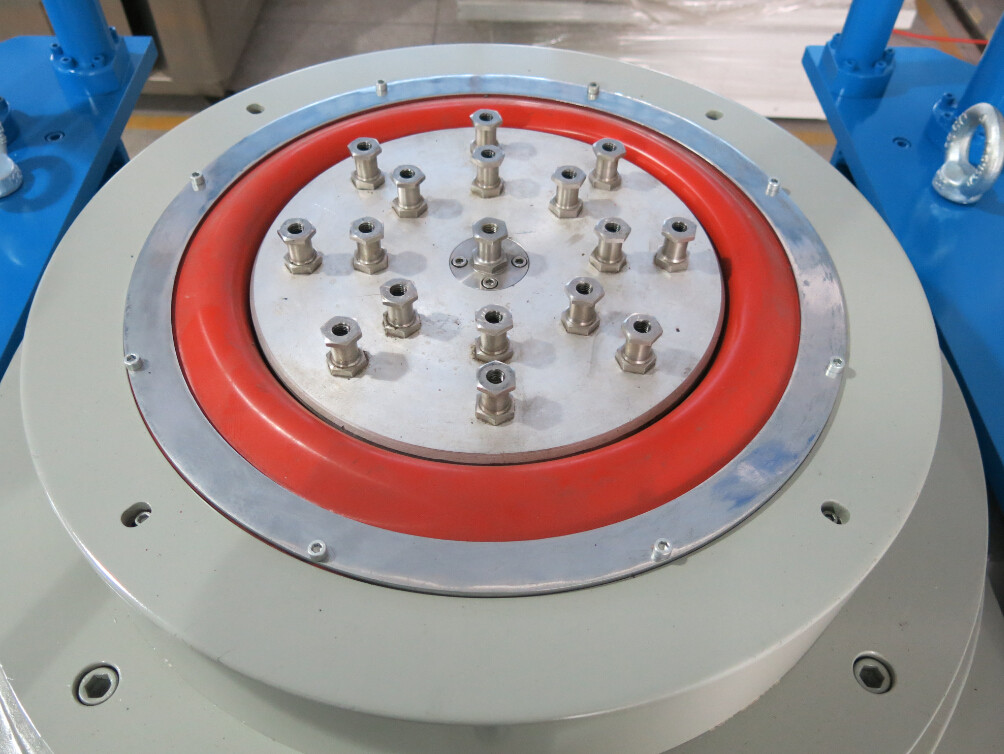

| Mesa of screw | 13 x M8 | |||
| Magnetic flux leakage | <10gauss | |||
| Dimension | 750mm x 560mm x 670mm(Vertical machine) | |||
| Weight | About 460Kg | |||
| DA-3 The Digital Switch Power Amplifier | ||||
| Output power | 4KVA | |||
| Output voltage | 100V | |||
| Output current | 30A | |||
| SNR(Signal to Noise Ratio) | ≥65dB | |||
| Harmonic distortion(resistive load) | <1.0% | |||
| The output voltage error of measurement | ≤5% | |||
| Output current measurement error | ≤5% | |||
| Output current crest factor | ≥3 | |||
| Stability of the dc | Zero drift is not more than the output end 50mv/8h | |||
|
frequency response 5-3500Hz |
±3dB | |||
| Size of the power amplifier | 720mm x 545mm x 1270mm | |||
| Heavy volume | 230KG | |||
| The Servo System | ||||
| Function | Temperature, air pressure, displacement, over voltage, over current, input under-voltage, external fault, control power supply, logic, lack of equal input. | |||
Test Standard:
UL 1642:2012 Standard for lithium batteries
UL 2054: 2012 Household and commercial batteries
UN38.3 (2012) Part 3: proposal for dangerous goods transport - test and standard manual
IEC62133-2012 The safety requirements for battery and battery pack of containing alkaline or acidic electrolyte
IEC 62281: 2004 The safety requirements in transport of Lithium battery and battery
IEC 60086: 2007 Galvanic cell part 4 the security requirements of lithium-ion batteries
GJB150,GJB360,GJB548,GJB1217,MIL-STD-810F,MIL-STD-883E etc.

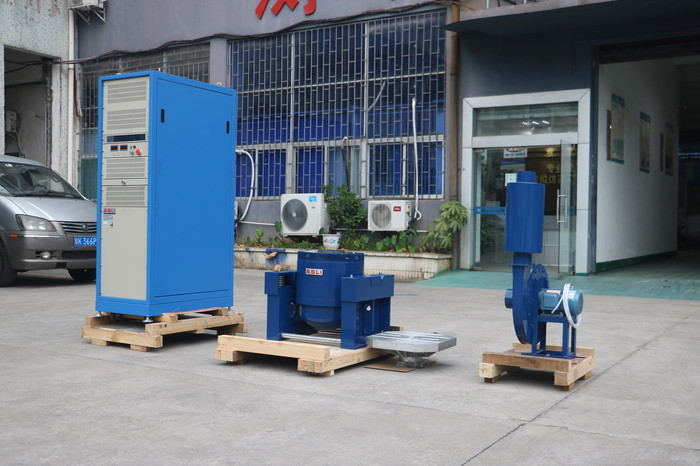

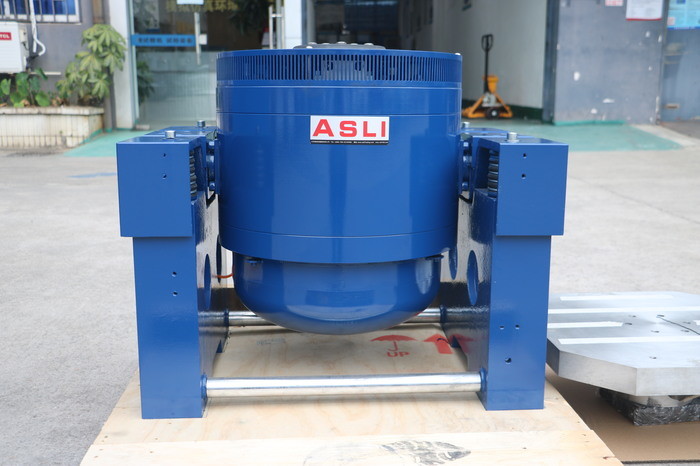

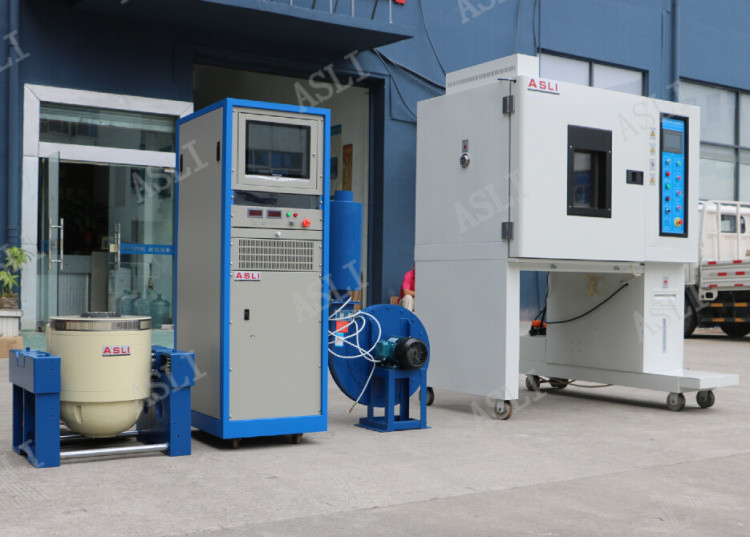

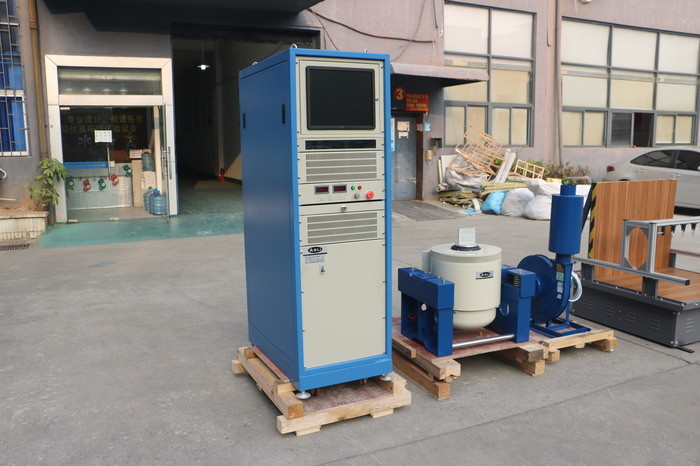

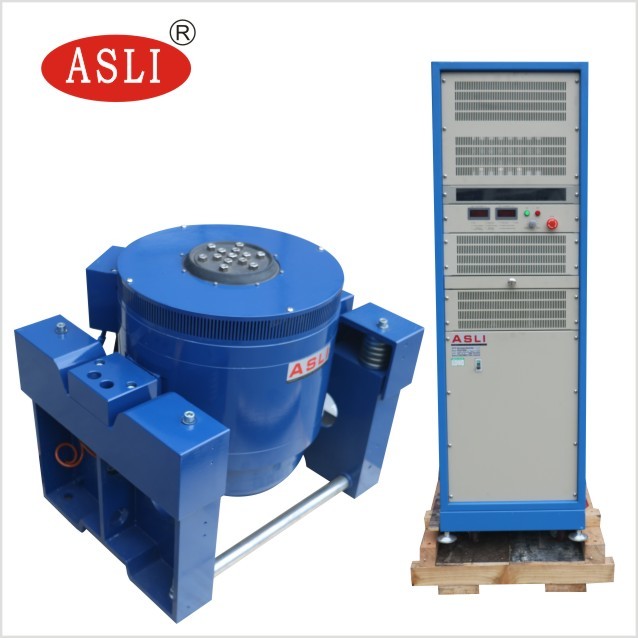

Pictures for reference:
