ISO 400kgf Electrodynamic Vibration Shaker Laboratory Testing Instruments
Product Details
| Force: | 3000N | Frequency: | 3~3500hz |
|---|---|---|---|
| Displacement: | 40mm | Max. Load: | 100kg |
| Vibration Direction: | 3-Axis | Usage: | Vibration Testing |
| Highlight |
ISO electrodynamic vibration shaker,400kgf electrodynamic vibration shaker,ISO laboratory testing instruments |
||
Product Description

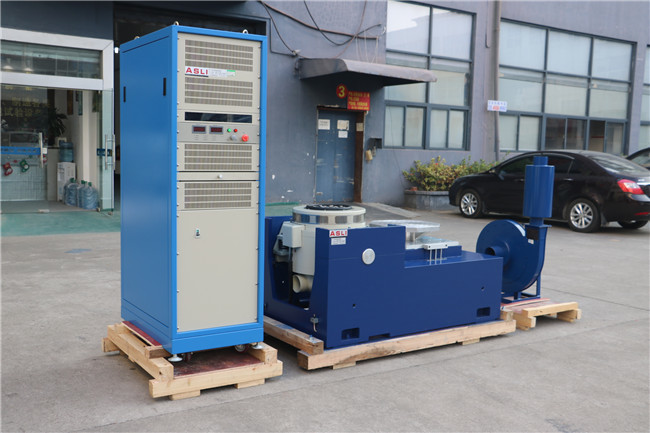

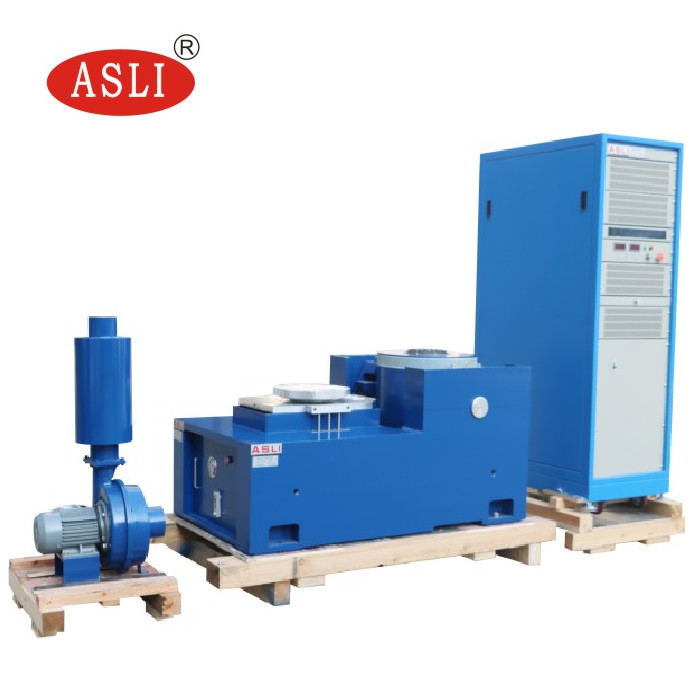

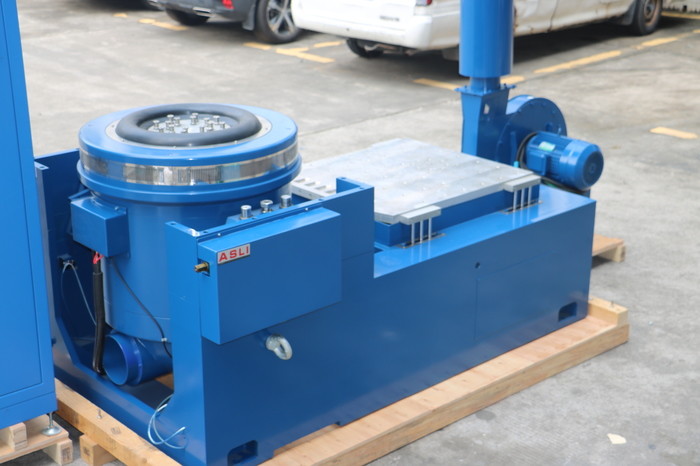

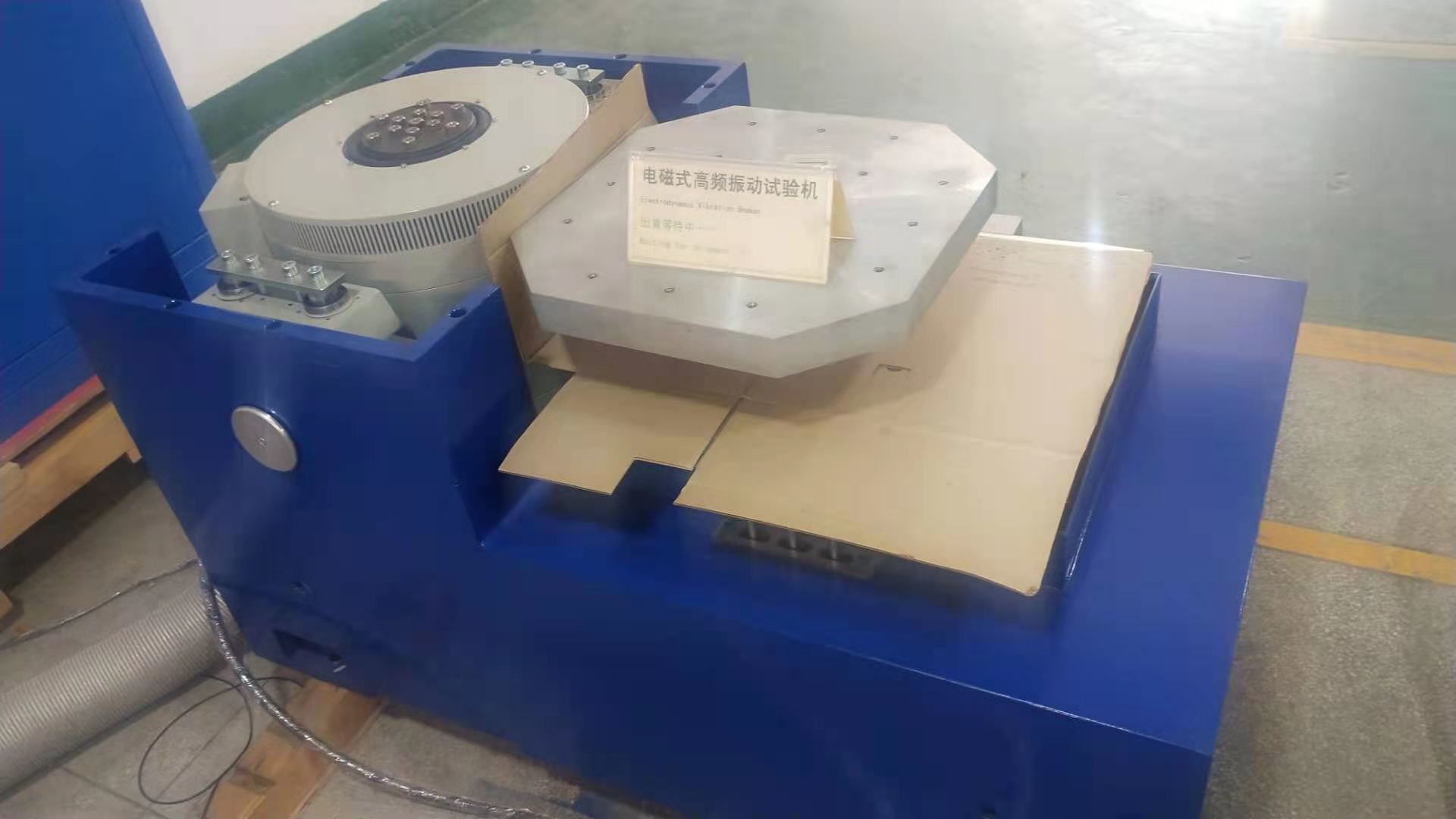

2021 New Customized Professional Production 3-Axis Electrodynamic Vibration Shaker
We are manufacturer of Horizontal + Vertical Vibration High Frequency Vibration Test Bench series products, adopted the 'double-magnetic circuit structure',' self-generated skeleton action circles', 'Airborne Support’ and 'roller bearings and linear guidance', 'trunnion isolation’ advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.
Application:
| Model | ES-3 |
| Thrust | 400kgf |
| Frequency range | 0.6- 4000Hz |
| Maximum accelerated speed | 65G |
| Maximum displacement | 51 mm |
| Maximum load | 100kg |
| Maximum amount of eccentric | 1350kg-cm |
| Power Quality | 6.5kgw |
| Platform Diameter | 150mm |
| Electrical equipment volume | 700×650×800mm |
| Vibrator weight | 500kgw |

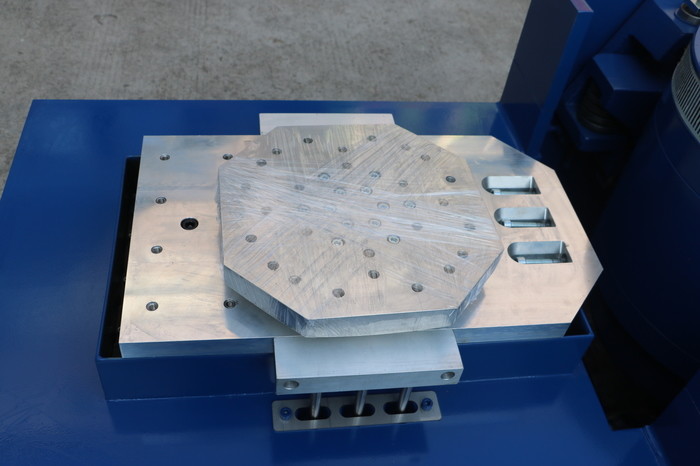

| Sliding Bed | 600×600 |
| Power Amplifier Type | PA-3 |
| Power | 220V,50A,1PH3LINES |
Horizontal + Vertical Vibration High Frequency Vibration Test Bench Features of electrodynamic vibration exciter modal shaker:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table capacity, improve low-frequency performance.
