ASTM 3500hz Vibration Table Test Equipment For Battery Testing
Product Details
| Standard: | MIL, IEC, ASTM | Application: | Battery |
|---|---|---|---|
| Usage: | Vibration Testing | Frequency: | 3500hz |
| Speed: | 1.8m/s | Vibration Direction: | Vertical Horizontal Vibration |
| Highlight |
ASTM 3500hz vibration table,battery testing vibration equipment,vibration table test equipment |
||
Product Description
The ASTM 3500Hz Vibration Table Test Equipment is a high-precision transport simulation system designed specifically for battery testing. It delivers reliable, repeatable vibration profiles to evaluate the durability and structural integrity of battery cells, modules, and packs under real-world transport conditions.
For detailed technical specifications, please refer to the ES-3A Vibration Tester PDF.
This equipment complies with the following international testing standards:
- JIS — Japanese Industrial Standards
- UL — Underwriters Laboratories
- DIN — German Institute for Standardization
- ISO — International Organization for Standardization
- BS — British Standards
- MIL — Military Standards
- IEC — International Electrotechnical Commission
- ASTM — American Society for Testing and Materials
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3–2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |

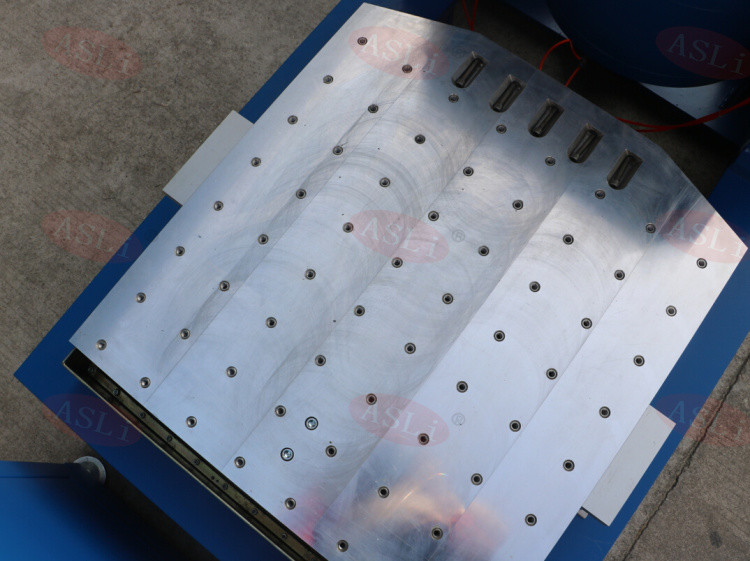

| Model | Bench Size (mm) | Frequency Range (Hz) | Weight of Moving Parts (kg) |
|---|---|---|---|
| LT0303 | 300×300×22 300×300×26 300×300×30 | 5–1000 5–1500 5–2000 | 6.6 7.8 9.0 |
| LT0404 | 400×400×22 400×400×26 400×400×30 | 5–1000 5–1400 5–2000 | 11.2 13.2 16.0 |
| LT0505 | 500×500×25 500×500×30 500×500×35 | 5–1000 5–1500 5–2000 | 19.3 23.1 27.0 |
| LT0606 | 600×600×25 600×600×30 600×600×40 | 5–1000 5–1200 5–2000 | 27.5 33.0 45 |
| LT0707 | 700×700×25 700×700×30 700×700×35 | 5–800 5–1000 5–1500 | 36.8 44.2 52 |
| LT0808 | 800×800×30 800×800×40 800×800×45 | 5–1000 5–1500 5–2000 | 57.7 76.9 86.5 |
| LT1010 | 1000×1000×30 1000×1000×40 1000×1000×50 | 5–1000 5–1300 5–1500 | 89.1 118.8 147 |
| LT1212 | 1200×1200×30 1200×1200×40 1200×1200×50 | 5–800 5–1100 5–1400 | 126 168 210 |
- Small loading bench enables higher acceleration and working frequency, improving the loading capacity and overall performance of the complete machine bench.

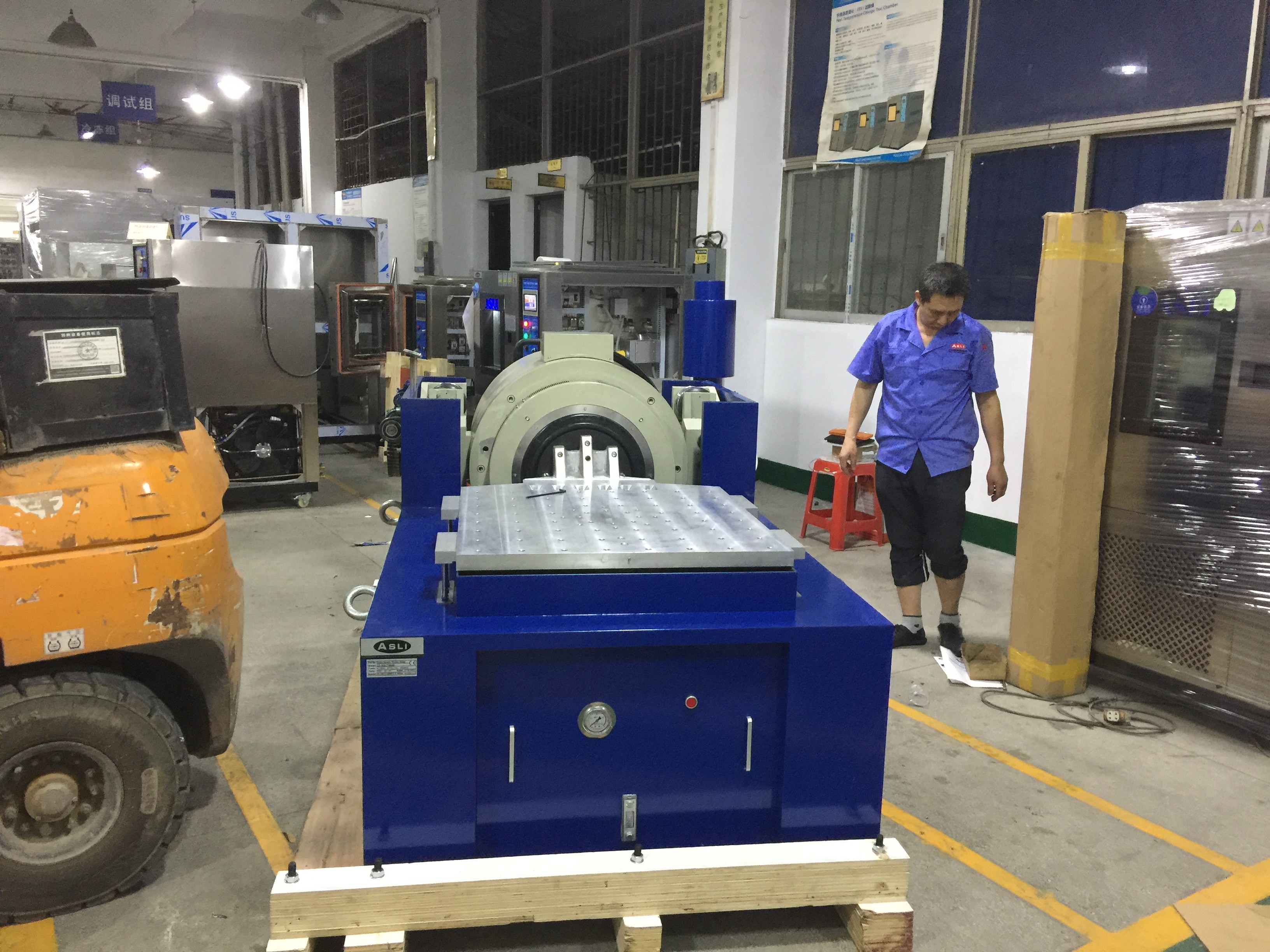

- Horizontal bench and vibration bench are integrated into a single unit with a robust structure, offering convenient installation and adjustment.
- Static pressure track with V-shape design provides slope-resistant and bias-loading resistant capabilities.
- Built-in oil pump ensures a well-organized structure and easy operation.
High Precision Transport Simulation Vibration Table Test Equipment for Battery Testing.
Product Highlights
ASTM 3500Hz vibration table for battery testing. Complies with MIL, IEC, ASTM standards. Features vertical/horizontal vibration, 1.8m/s speed, high precision, durable design. Ideal for transport simulation, with custom options available.
