IEC 60068-2-64 Vibration Testing Equipment 100kg Load For Lighting Products
Product Details
| Customized Support: | OEM | Brand: | ASLI |
|---|---|---|---|
| Place Of Origin: | Guangdong, China | Power: | Electronic |
| Certificate: | ISO 9001:2008 | Packing Material: | Poly Wood Case |
| Vibration: | 3 Axis | Vibration Force: | Customized |
| Table Size: | Customized | Max Load: | 100Kg |
| Highlight |
IEC 60068-2-64 Vibration Testing Equipment,100kg Load Vibration Testing Equipment,IEC 60068-2-64 Vibration Shaker Table |
||
Product Description
The IEC 60068-2-64 Vibration Testing Equipment for Lighting Products is designed for educational, research, and laboratory environments. It adopts a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings and linear guidance, and trunnion isolation advanced modern technology and special technology. It can complete X, Y, Z three-axis sinusoidal vibration tests and broadband random vibration tests, as well as classical pulse tests (half-sine, trapezoidal, sawtooth wave) and shock response spectrum tests.
These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, home appliances, and other fields.
| Sine thrust | 300 kgf |
| Random thrust | 300 kgf |
| Impact thrust | 600 kgf |
| Frequency Range | 2–2500 Hz |
| Continued displacement | 25 mm |
| Impact displacement | 25 mm |
| Maximum speed | 1.8 m/s |
| Maximum acceleration | 981 m/s² |
| Moving coil diameter | Φ150 mm |
| Allow eccentric moment | >196 N·m |
| Load connection point | 6 point |
| Equivalent mass of moving parts | 3 kg |
| Countertops screw size (standard) | M8 |
| Screw layout table (diameter, circumference) | 8 on Φ100 mm, 8 on Φ200 mm |
| Axial isolation frequency | <3 Hz |
| Maximum load | 120 kg |
| Magnetic flux leakage | <1 mT |
| Dimensions (without packaging) (L×W×H) | 730 mm × 550 mm × 650 mm |
| Vibration table weight | 450 kg |
- Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
- Two-magnetic circuit, low magnetic flux leakage, compact and rational structure.
- Rocker rod roller bearings, straight and import-oriented composite body stiffness orientation, high eccentric load capacity.
- Trunnion isolation foundation dedicated to hormone use, with convenient mobile installation.
- Advanced technology move-around system ensures high reliability of the dynamic circle.
- New duct design enhances the cooling effect.
- Static stiffness and dynamic stiffness of the bearing small balloon raise the vibration table bearing capacity and improve low-frequency performance.

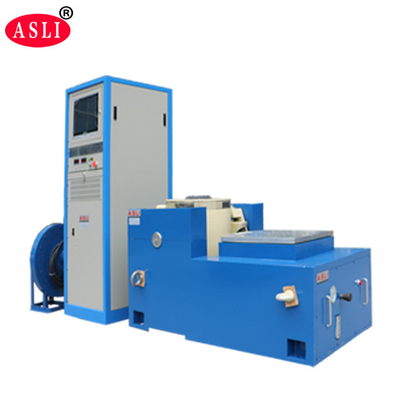

Vibration test bench, power amplifier, cooling fan, slip table, vertical expander.
- Within small loading bench to realize higher acceleration and working frequency, improving the loading capacity and performance of the whole machine bench.
- Horizontal bench and vibration bench are integral type, with perfect structure, convenient to install and adjust.
- Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
- Built-in oil pump, good structure and easy operating.
VT vertical extended-bench and specified clamps, precision calculated, elaborate design, to ensure the customer acquires the best performance according to perfect standards.
Product Highlights
ASLI IEC 60068-2-64 vibration testing equipment handles 100kg loads with 3-axis sinusoidal and random vibration. ISO 9001 certified, customizable table size and vibration force, OEM support. Ideal for lighting product reliability testing.
