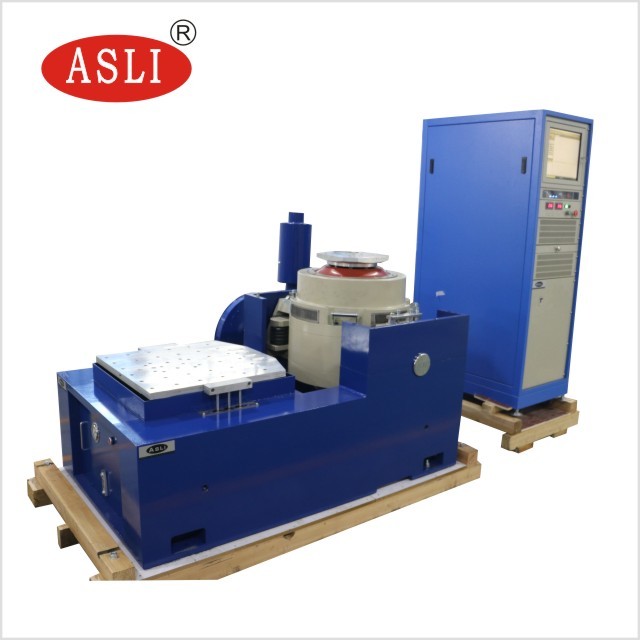

ISTA 3A 6A Amazon Transportation Simulation Random Vibration Table 500kg Load
Product Details
| Vibration Force: | 30KN | Frequency: | 5~2800 Hz |
|---|---|---|---|
| Displacement: | 100 Mm | Speed: | 1.8 M/s |
| Max Load: | 500 Kg | Application: | Package |
| Vibration Direction: | Vertical & Horizontal | Power: | AC380V,3 Phase 5 Lines |
| Highlight |
ISTA 3A Amazon Random Vibration Table,ISTA 6A Amazon Random Vibration Table,500kg Load Random Vibration Testing Equipment |
||
Product Description
The ISTA 3A / 6A Amazon Over-the-Road Random Vibration Test System is engineered for high quality, high performance, and high reliability, delivering precision, accuracy, and convenient operation. It is a versatile test platform that meets a wide range of test specifications, including IEC, MIL-STD, JIS, ASTM, and others.
| Parameter | Specification |
|---|---|
| Sine force (peak) | 30 kN |
| Shock force (peak) | 60 kN |
| Frequency range | 5–2800 Hz |
| Displacement (continuous) | 100 mm |
| Max. velocity | 1.8 m/s |
| Max. acceleration | 75 G |
| Armature diameter | 445 mm |
| 1st order resonant frequency | 2,400 Hz |
| Allowable eccentric moment | >500 N·m |
| Armature weight | 40 kg |
| HE/ST screw dimension | M10 (metric) |
| Axial vibration isolation frequency | <3 Hz |
| Max. payload | 500 kg |
| Magnetic flux leakage | ≤1 mT |
| Dimensions (L×W×H, unpacked) | 1,330 × 860 × 1,250 mm |
| Weight (unpacked) | 2,500 kg |
| Installation | Rubber mat (anchor bolts required) |
| Parameter | Specification |
|---|---|
| Amplifier output | 30 kVA |
| SNR | >65 dB |
| Rated output voltage | 120 Vrms |
| Dimensions (L×W×H, unpacked) | 800 × 900 × 2,100 mm |
- Flexible suspension system and straight-line guide deliver strong bearing capacity, excellent guidance performance, and high stability.
- The central load airbag offers high static stiffness and low dynamic stiffness, providing strong bearing capacity and outstanding dynamic performance.
- Rapid self-examination diagnostics and chain protection ensure high safety and reliability.
- The airbag isolating and damping device eliminates the need for a special foundation, perfectly reproduces the vibration wave, and reduces vibration transmission.

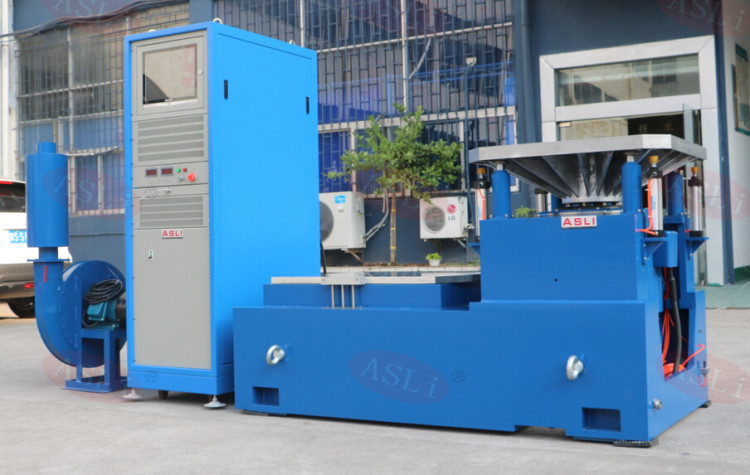

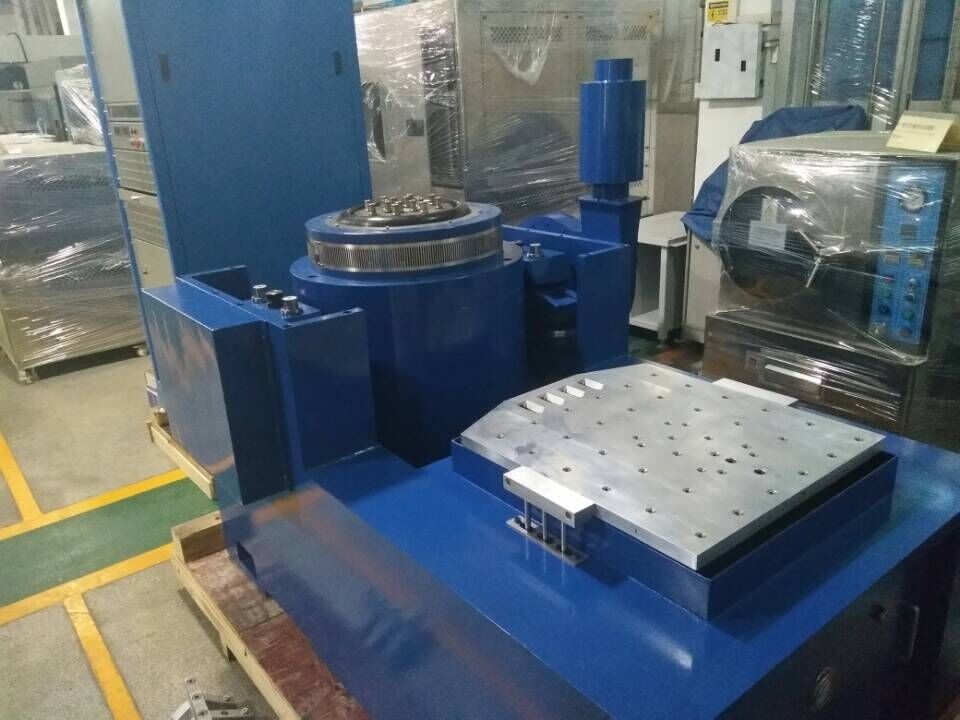

- Horizontal and vertical expansion platforms are available for different application requirements.
- Compatible with all types of vibration controllers for simple, straightforward operation.
Customization available: More vibration force configurations can be customized to meet your specific requirements. We warmly welcome your inquiry.
Product Highlights
ISTA 3A/6A Amazon random vibration table handles 500kg loads with 30kN force, 5-2800Hz, vertical/horizontal testing. Features airbag damping, no special foundation needed, and works with all controllers. Custom vibration forces available.
