IEC60068-2-27 IEC61300-2-1 ISO 2247 Electrodynamic Shaker
Product Details
| Sine Force: | 3000N~150000N | Dimension: | 730*550*650mm L*W*H Or Customized |
|---|---|---|---|
| Table Size: | 300*300mm | Application: | Auto Parts |
| Power: | AC380V,3 Phase 5 Lines | Speed: | 1.8m/s |
| Highlight |
ISO 2247 Electrodynamic Shaker,IEC61300-2-1 Electrodynamic Shaker,IEC60068-2-27 Dynamic Shaker |
||
Product Description

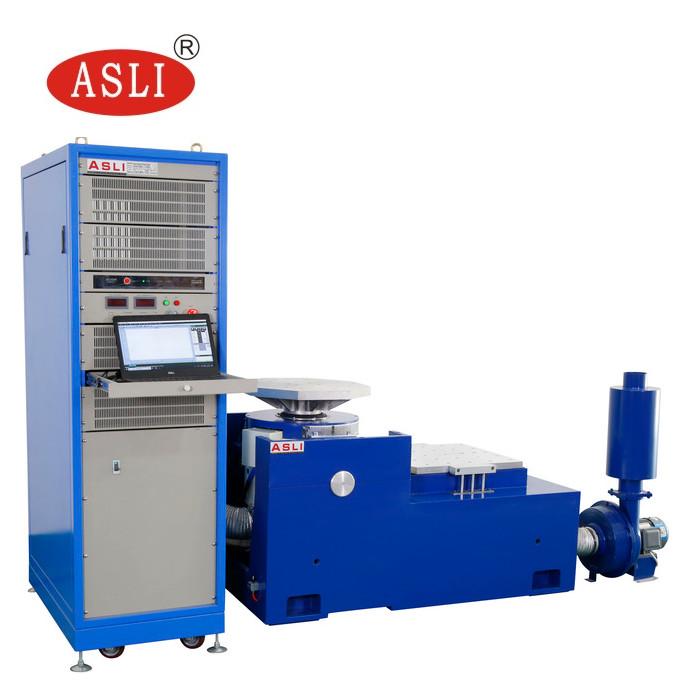

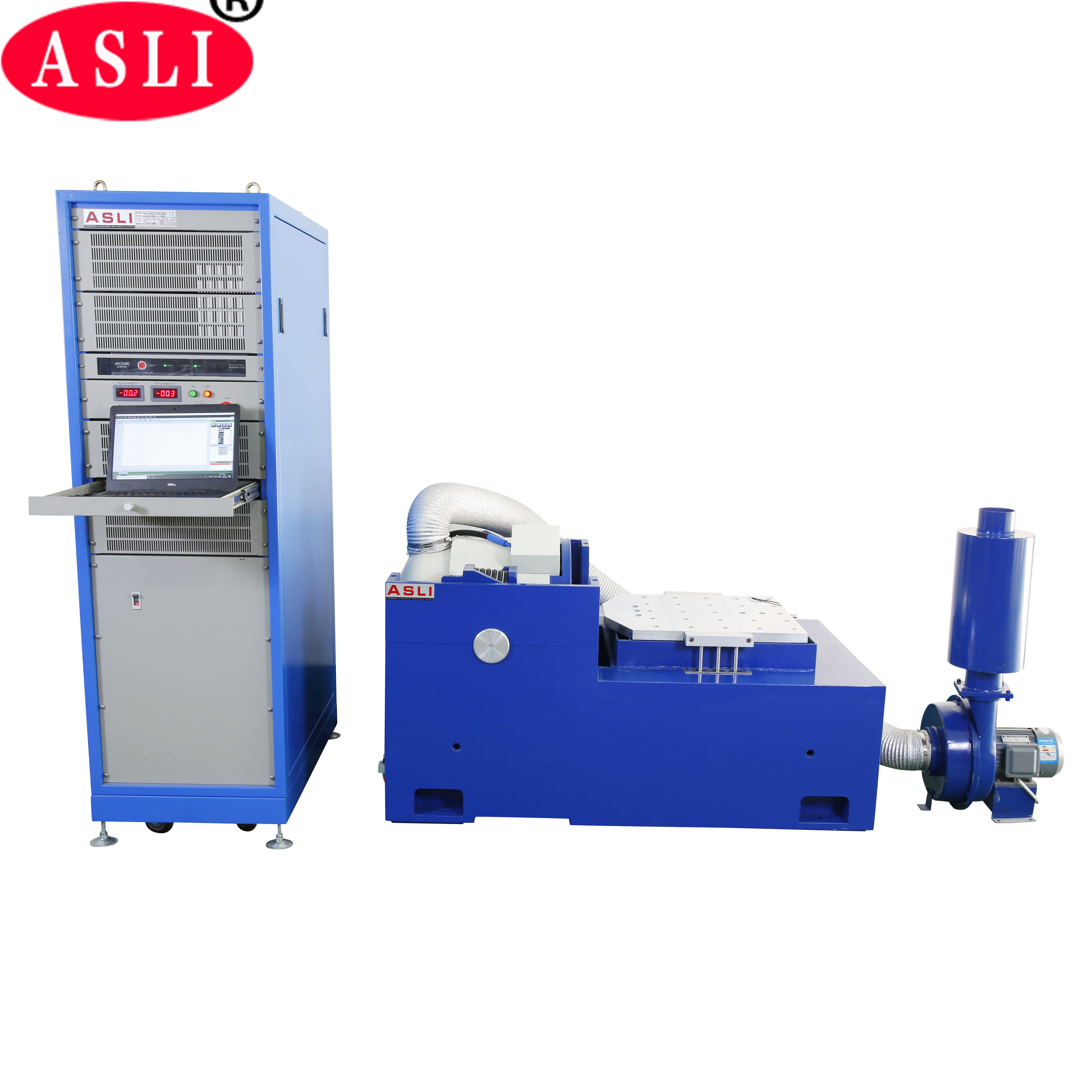

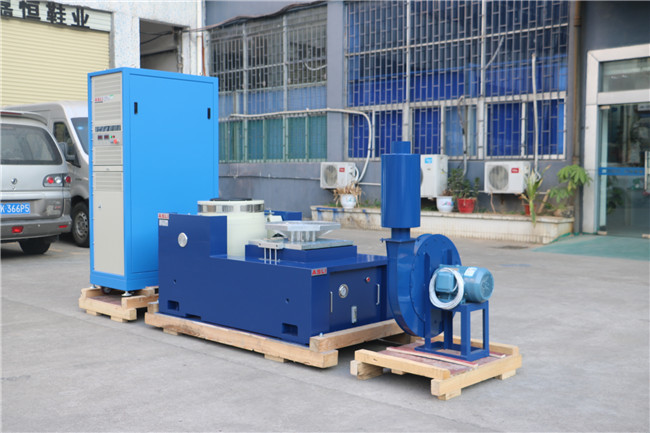

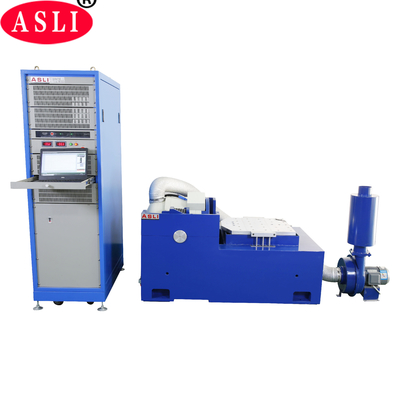

The ES-series electrodynamic shaker system is engineered to meet the rigorous demands of IEC60068-2-27, IEC61300-2-1, and ISO 2247 standards. It delivers reliable, repeatable vibration testing across a broad range of force, frequency, and displacement requirements, making it suitable for both research and industrial qualification testing.
- Model: ES-1, ES-2, ES-3 … ES-350
- Rated Sine Force (N): 1,000 to 3,500,000
- Rated Random Force (N): 1,000 to 3,500,000
- Frequency Range (Hz): 3 to 3,500
- Rated Acceleration (m/s²): 400 to 1,000
- Rated Velocity (m/s): 1.2 to 1.8
- Rated Displacement (p-p, mm): 25 to 51
- Max. Loading (kg): 70 to 4,500
- Moving Coil Mass (kg): 2.5 to 300
- Dimension of Moving Coil (mm): 150 to 870

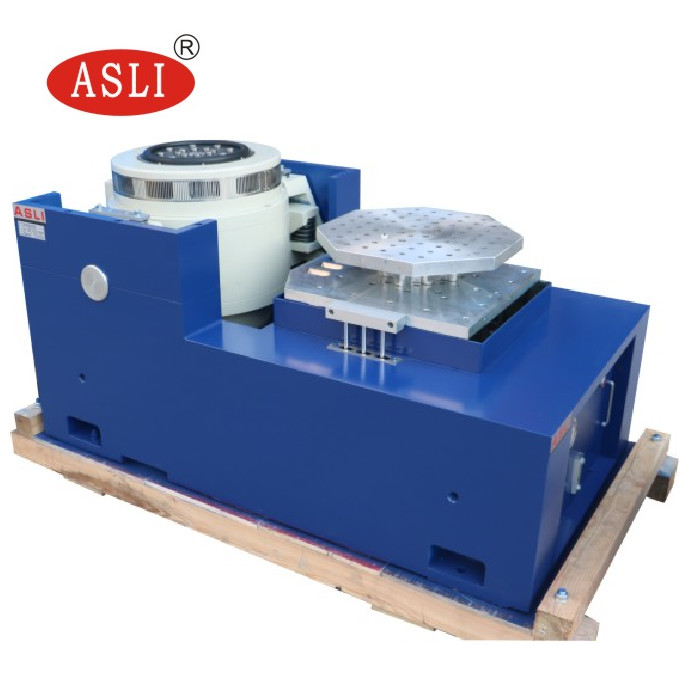

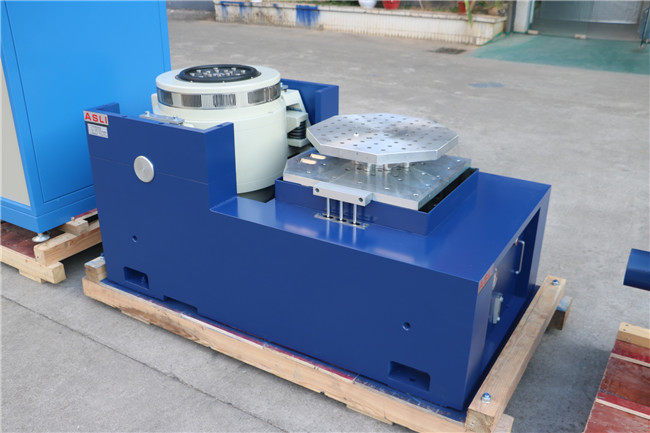

- Compact loading bench design enables higher acceleration and working frequency, improving the loading capacity and overall performance of the complete machine bench.
- Horizontal bench and vibration bench are integrated into a single unit with a robust structure, offering convenient installation and adjustment.
- Static pressure track with V-shape profile provides excellent slope-resistant and bias-loading resistant capabilities.
- Built-in oil pump ensures a well-structured system with easy operation.
| Model | Bench Size (mm) | Frequency Range (Hz) | Weight of Moving Parts (kg) |
|---|---|---|---|
| LT0303 | 300 × 300 × 22 | 5–1000 | 6.6 |
| 300 × 300 × 26 | 5–1500 | 7.8 | |
| 300 × 300 × 30 | 5–2000 | 9.0 | |
| LT0404 | 400 × 400 × 22 | 5–1000 | 11.2 |
| 400 × 400 × 26 | 5–1400 | 13.2 | |
| 400 × 400 × 30 | 5–2000 | 16.0 | |
| LT0505 | 500 × 500 × 25 | 5–1000 | 19.3 |
| 500 × 500 × 30 | 5–1500 | 23.1 | |
| 500 × 500 × 35 | 5–2000 | 27.0 | |
| LT0606 | 600 × 600 × 25 | 5–1000 | 27.5 |
| 600 × 600 × 30 | 5–1200 | 33.0 | |
| 600 × 600 × 40 | 5–2000 | 45 | |
| LT0707 | 700 × 700 × 25 | 5–800 | 36.8 |
| 700 × 700 × 30 | 5–1000 | 44.2 | |
| 700 × 700 × 35 | 5–1500 | 52 | |
| LT0808 | 800 × 800 × 30 | 5–1000 | 57.7 |
| 800 × 800 × 40 | 5–1500 | 76.9 | |
| 800 × 800 × 45 | 5–2000 | 86.5 | |
| LT1010 | 1000 × 1000 × 30 | 5–1000 | 89.1 |
| 1000 × 1000 × 40 | 5–1300 | 118.8 | |
| 1000 × 1000 × 50 | 5–1500 | 147 | |
| LT1212 | 1200 × 1200 × 30 | 5–800 | 126 |
| 1200 × 1200 × 40 | 5–1100 | 168 | |
| 1200 × 1200 × 50 | 5–1400 | 210 |
The VT vertical extended-bench and specified clamps are precision-calculated and elaborately designed to ensure the customer acquires the best performance according to their exact requirements.
| Model | Weight (kg) | Max. Frequency (Hz) | Bench Size |
|---|---|---|---|
| VT300 | 10 | 2000 | Φ300 |
| VT400 | 16 | 2000 | Φ400 |
| VT500 | 25 | 1500 | Φ500 |
| VT600 | 35 | 1000 | Φ600 |
| VT0303 | 15 | 2000 | 300 × 300 |
| VT0404 | 22 | 1500 | 400 × 400 |
| VT0505 | 30 | 500 | 500 × 500 |
| VT0606 | 58 | 350 | 600 × 600 |
| VT0808 | 140 | 350 | 800 × 800 |
| VT1010 | 180 | 350 | 1000 × 1000 |
| VT1212 | 250 | 350 | 1200 × 1200 |
| VT1212 (Round bench) | 220 | 350 | Φ1200 |
Product Highlights
IEC60068-2-27 compliant electrodynamic shaker with sine force 3000N~150000N, speed 1.8m/s, and customizable dimensions. Ideal for auto parts testing, it offers durable, efficient performance, multiple certifications, and custom options for precise vibration simulation.
