Laboratory 10000N Electrodynamic Vibration Test System With 270kg Load
Product Details
| Sine Force: | 10000N | Speed: | 1.8m/s |
|---|---|---|---|
| Displacement: | 51mm | Frequency: | 3~3000HZ |
| Loading: | 270 Kg | Acceleration: | 100g |
| Armature: | 240mm | ||
| Highlight |
10000N Electrodynamic Vibration Test System,270kg Load Electrodynamic Vibration Test System,10000N Electrodynamic Vibration Shaker |
||
Product Description

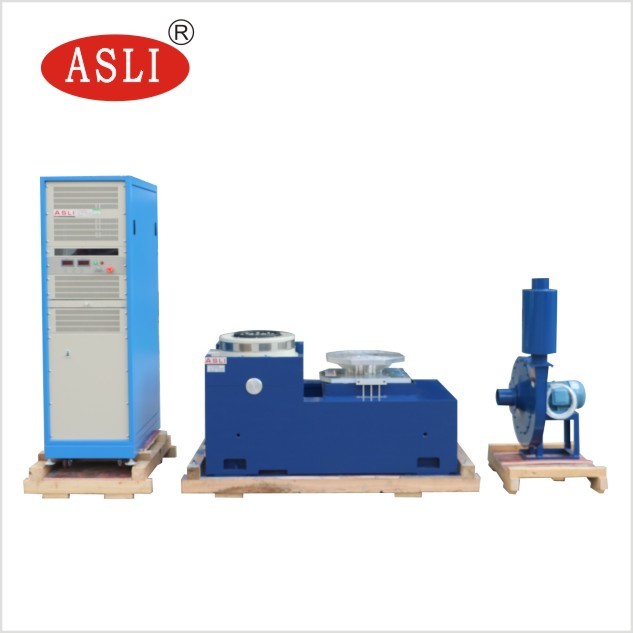

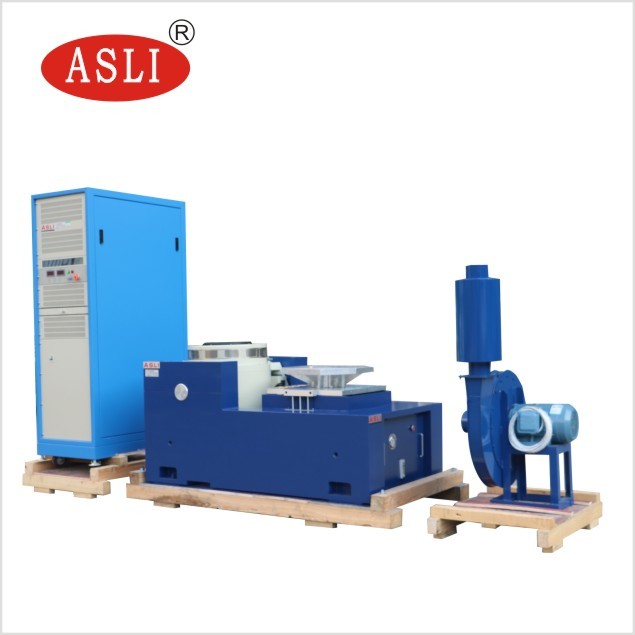

laboratory three comprehensive electrodynamic vibration test system shaker
Application
High Frequency Vibration Shaker adopted the 'double-magnetic circuit structure','self-generated skeleton action circles', 'Airborne Support' and 'roller bearings and linear guidance','trunnion isolation' advanced modern technology and special technology, can be completed in X, Y, Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine) pulse and shock response spectrum test. It widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.
(1) Rated Force: sine force10000N; random force 10000N; shock force 20000N;
(2) Frequency Range:3Hz to 3000Hz, Fixed frequency, sweep back and forth, sine, random, shock
(3) Sweep-frequency Mode: linear, logarithmic, sweep back and forth, fixed frequency
(4) Sweep-frequency Times: 1 to 32767
(5) Sweep-frequency Time: fixed frequency/single 1-3600mins, sweep-frequency curves can be displayed.
(6) Max. Acceleration1000m/s2 (non load)
(7) Max. Speed: 1.8/s
(8) Max. Displacement:51mmp-p (non load), double peak
(9) Impact Displacement: 51mm
(10) Weight of Moving Coil:14kg
(12) Vibration Wave: sine, random, shock
(13) Diameter of the Moving Coil: Φ240 mm
(14) Vibration System Dimension: W1060xH750xD845mm
(15) Vibration System weight: 960KG

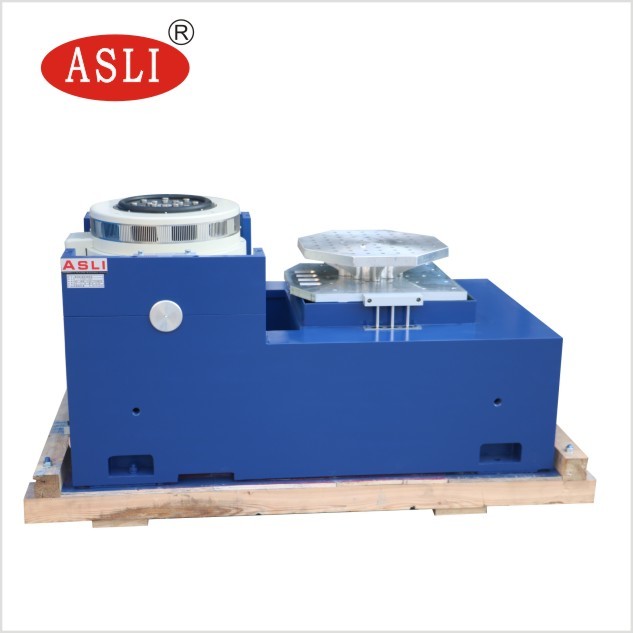

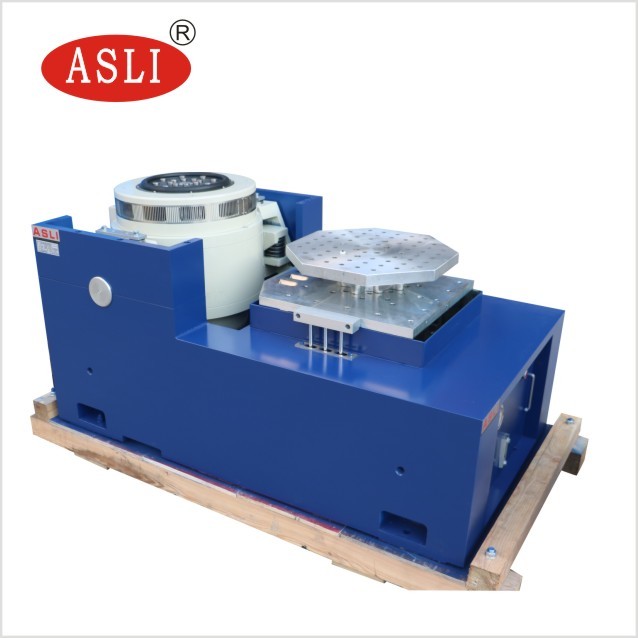

(16) 600mm*600mm vertical expander and 600*600mm horizontal slip table
Technical Parameters:
| Name | Packing Vibration Table/Vibration Table Tester for Auto Parts | ||||||||
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated displacement (p-p)mm | Max. Loading (Kg) | moving coil (Kg) | Dimension of Moving coil (mm) |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |

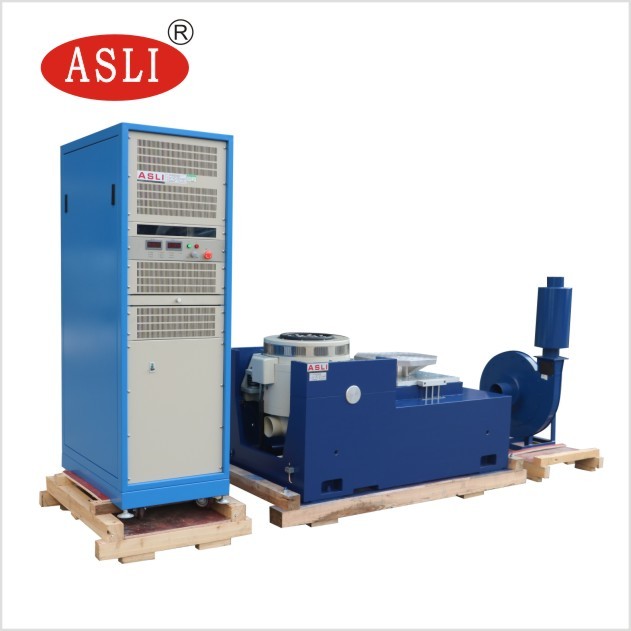

(1) Vibration Generator 1 set
(2) Vibration Controller 1 set
(3) Communication Connection Chamber 1 set
(4) DA-10 Power Amplifier 1 set
(5) Excitation Power 1 pc
(7) Driver Software 1 set
(8) Cooling System 1 set
(9) Industrial Computer 1 set
(10) Color Printer 1 set(Optional)
(11) Acceleration Sensor (include output line) 1 pc
(12) Vibration Fixture 1 set (optional, According to the test sample
Digital Vibration Controller
Vibration controller is the latest design by our company
that adopts international advanced distributed system
architecture, and its core is the latest TMS320 series
32-bit floating-point high-speed processor of TI
company. Test report is automatically generated in
Word. During or after the testing, the
test report can be edited, and then generated
automatically or manually.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.
