3 - 3500HZ Three Tri Electromagnetic Vibration Testing Machine
Product Details
| Sine Force: | 6000N | Frequency: | 3~3500HZ |
|---|---|---|---|
| Speed: | 1.6m/s | Vibration Direction: | Vertical Vibration Or X,y,z |
| Power: | 380v 3 Phase | Acceleration: | 100g |
| Highlight |
3500HZ Electromagnetic Vibration Testing Machine,3HZ Vibration Testing Machine,Tri Axis Electrodynamic Vibration Shaker |
||
Product Description

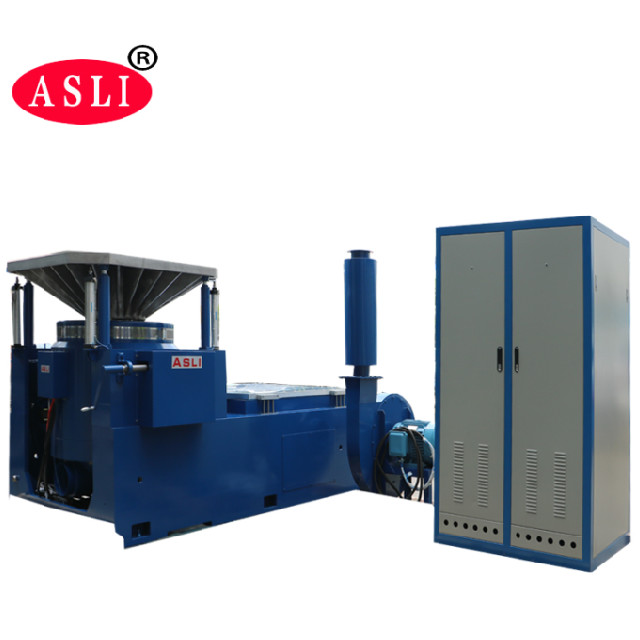

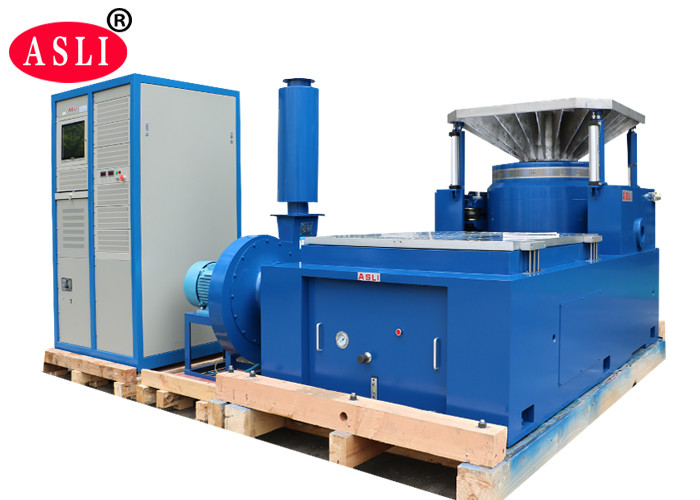

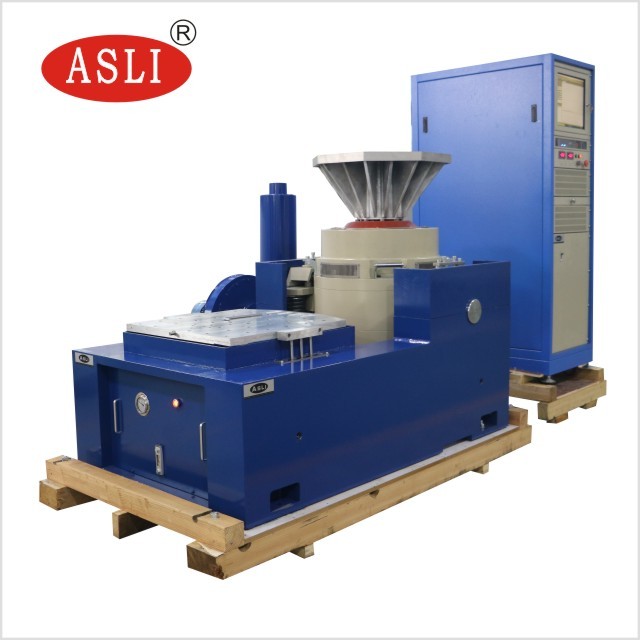

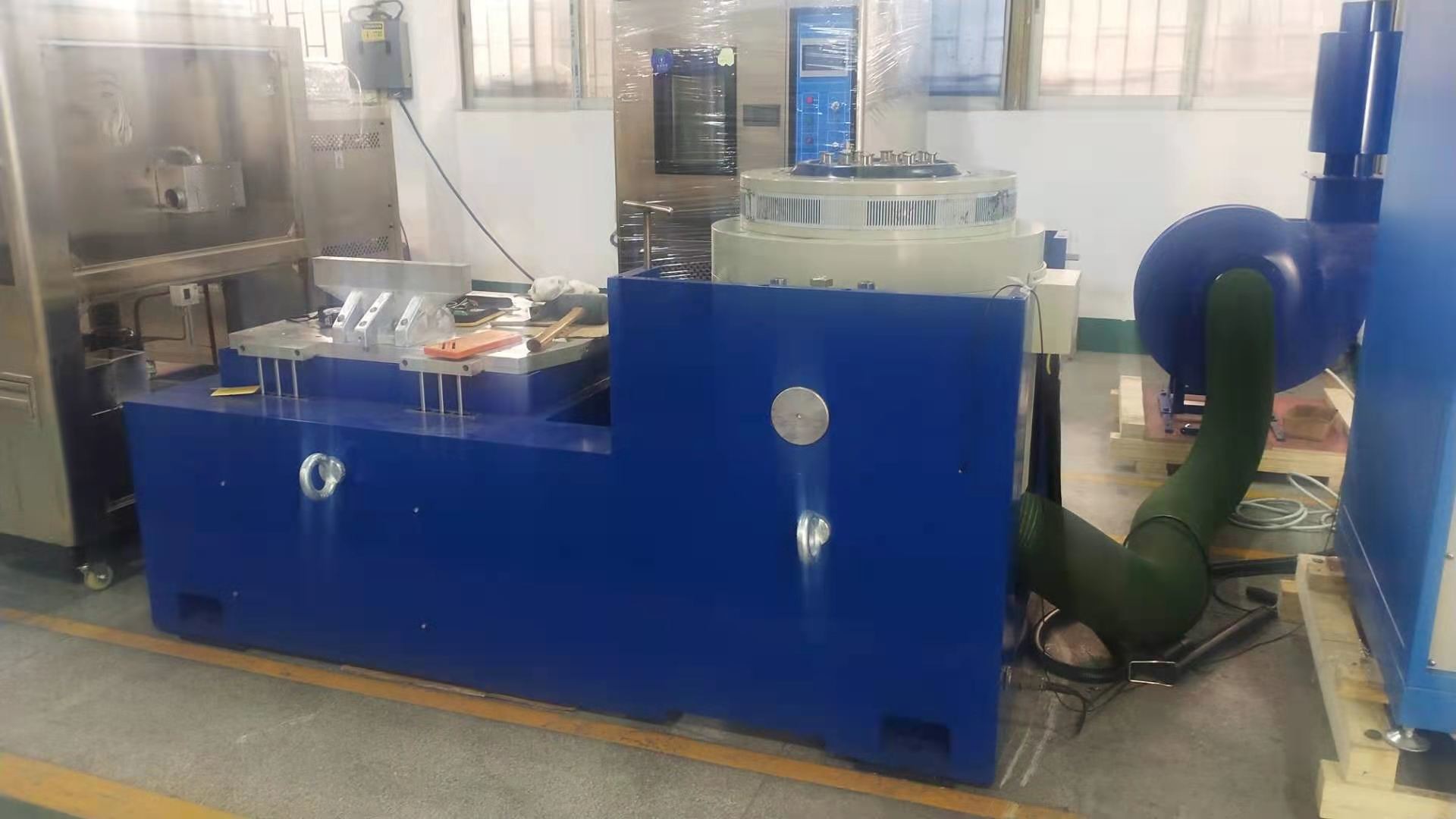

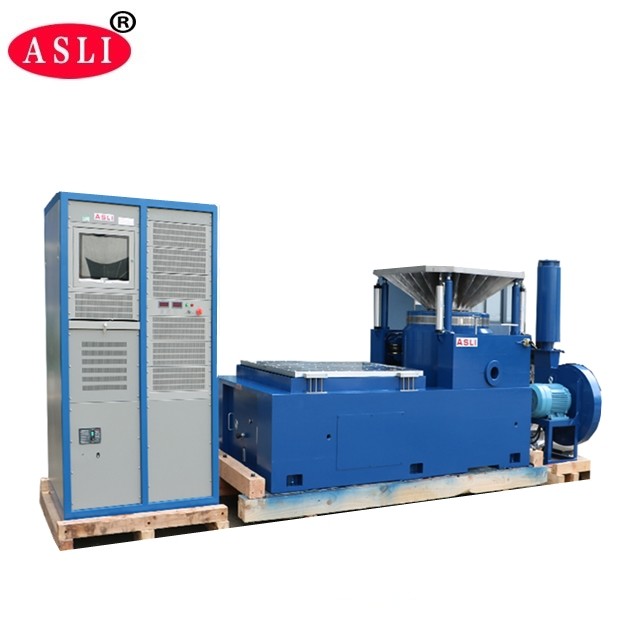

The Automobile Battery Sine Random Vibration Testing Machine is a 3-axis frequency electromagnetic vibration system designed for rigorous testing of batteries and other critical components. This electrodynamic shaker utilizes a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings, linear guidance, and trunnion isolation. It performs X, Y, and Z three-axis sinusoidal vibration tests, broadband random vibration tests, and classical pulse tests (half-sine, trapezoidal, sawtooth wave) as well as shock response spectrum testing.
These systems are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and home appliances industries.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3–2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |

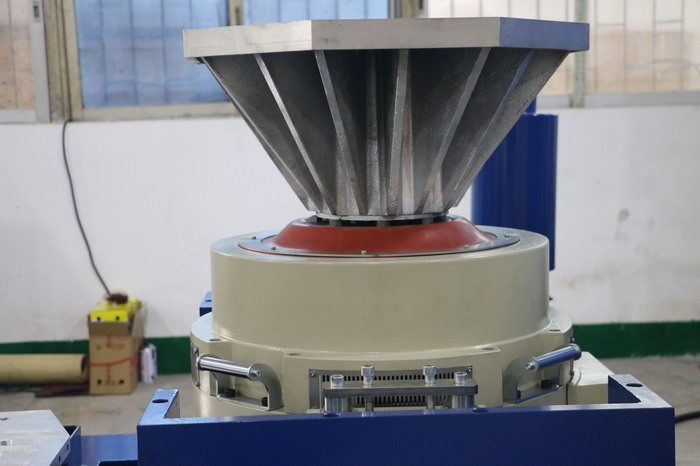

The electrodynamic shaker system employs a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings, linear guidance, and trunnion isolation. It is capable of completing X, Y, and Z three-axis sinusoidal vibration tests and broadband random vibration tests, as well as classical pulse tests (half-sine, trapezoidal, sawtooth wave) and shock response spectrum testing. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and home appliances fields.
The shock tester machine is first wrapped in PP film, then protected with 10mm foam between the machine and the case, and finally packed in a standard export plywood case.
If you have any questions about our vibration shakers, please feel free to contact us. Thank you.
For more information on the 3000 High Frequency Sine Random Force High Frequency Vibration Table, please contact our sales team.
Product Highlights
3-3500HZ three-axis electromagnetic vibration tester delivers 6000N sine force, 100g acceleration, and 1.6m/s speed on 380V 3-phase power. Supports vertical or X,Y,Z testing with sine, random, and shock modes. Ideal for automotive, aerospace, and electronics durability validation.
