IEC 60068-2-6 IEC 60598-1 Standard 40KN Vibration Test Equipment
Product Details
| Sine Force: | 40000N | Speed: | 1.8 M/s |
|---|---|---|---|
| Displacement: | 65mm | Frequency: | 3~3500HZ |
| Loading: | 500kg | Acceleration: | 100g |
| Armature: | 450mm | Brand: | ASLI |
| Table Size: | 600x600mm | ||
| Highlight |
IEC 60068-2-6 Vibration Test Equipment,IEC 60598-1 Vibration Test Equipment,40KN Vibration Test Machine |
||
Product Description
This vibration test system is engineered to meet the rigorous requirements of IEC 60068-2-6 and IEC 60598-1 standards, delivering reliable and repeatable vibration testing for a wide range of industrial and electronic products.

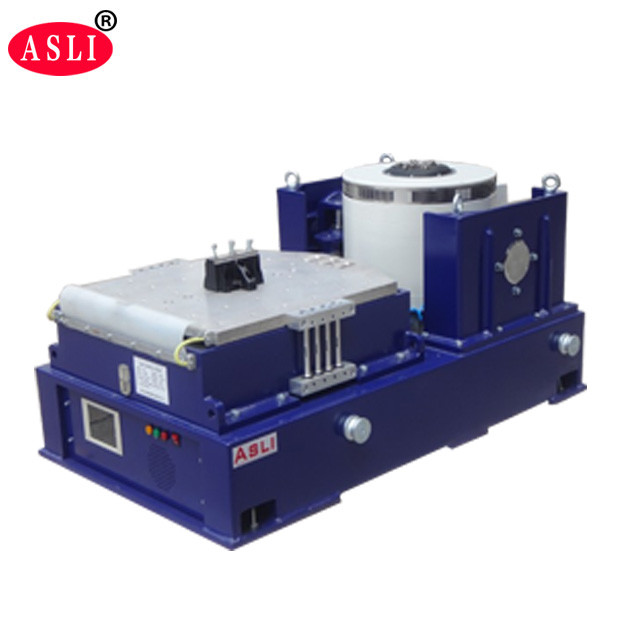

- One-piece horizontal vibration generator

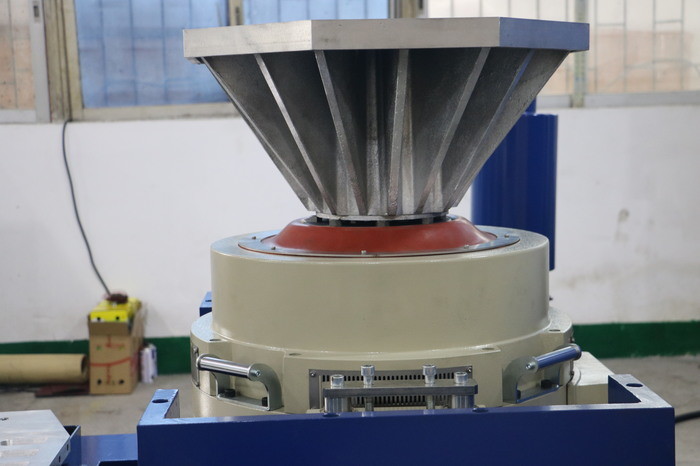

- Vertical expansion table

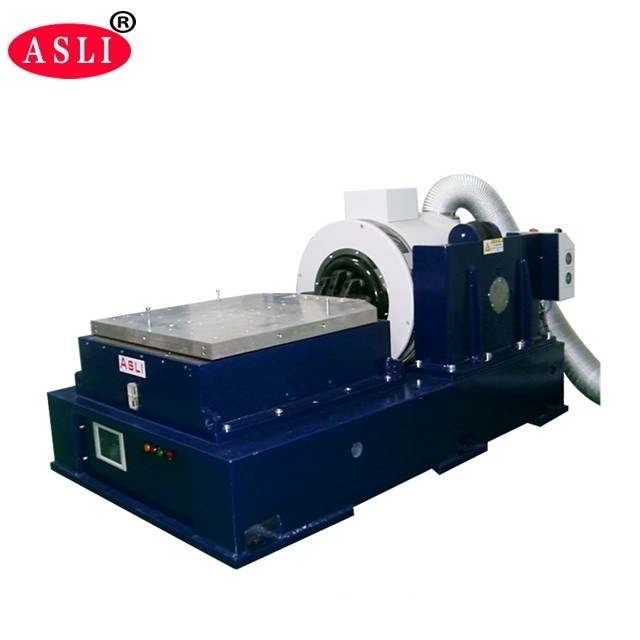

- Cooling fan with muffler
- Digital switching power amplifier
- Multi-function vibration control measuring instrument
Automobile Battery EN50604 IEC62133 UN38.3 Vibration Test Bench for Lab Testing
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
- Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
- Two-magnetic circuit design with low magnetic flux leakage, compact structure, and rational layout.
- Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation, providing excellent eccentric load capacity.
- Trunnion isolation foundation dedicated to hormone use, offering convenient mobile installation.
- Advanced technology move-around system ensures high reliability of the dynamic circle.
- New duct design enhances the cooling effect.
- Static stiffness and dynamic stiffness of the bearing with small balloon effect, raising the vibration table bearing capacity and improving low-frequency performance.
Product Highlights
ASLI ES-40 vibration test equipment meets IEC 60068-2-6 and IEC 60598-1 standards, delivering 40KN sine force, 3-3500Hz frequency, 100g acceleration, and 500kg load capacity. Features advanced cooling, high stiffness, and reliable dynamic performance for demanding lab testing.
