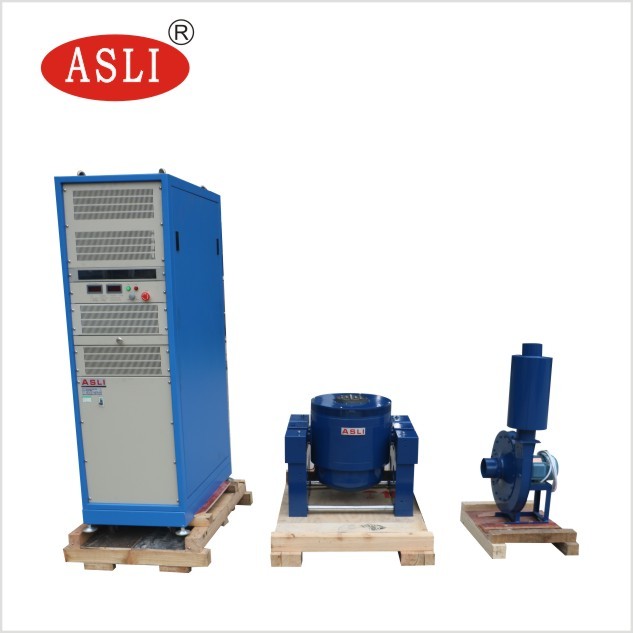

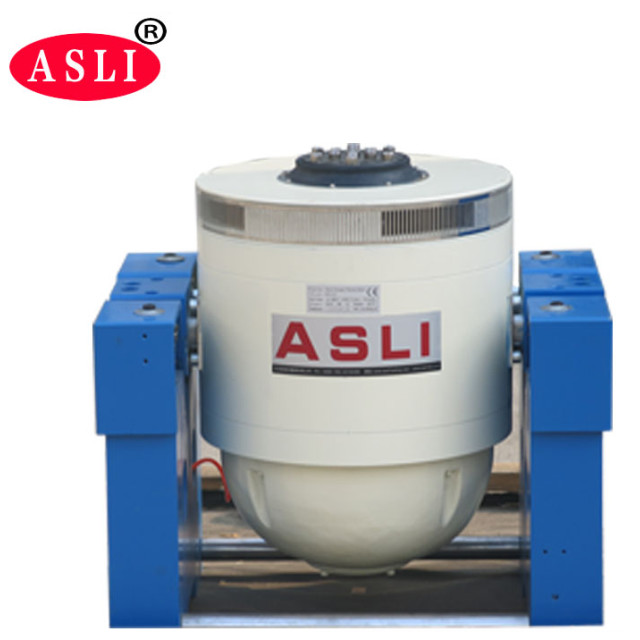

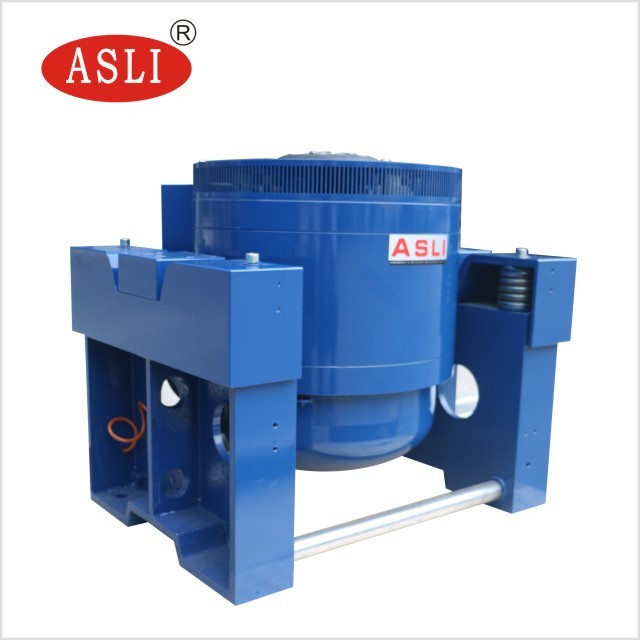

UL1642 6000N Laboratory Vibration Shaker Table
Product Details
| Slip Table: | 600*600mm | Vibration Direction: | Z Axis |
|---|---|---|---|
| Vibration Force: | 6KN | Test Standard: | IEC62133 |
| Shock Test: | Half - Sine, Trapezoidal, Saw Tooth Wave | Moving Coil: | 12kg |
| Highlight |
UL1642 Vibration Shaker Table,6000N Laboratory Vibration Shaker Table,6000N Vibration Table Test Equipment |
||
Product Description
Advanced Technology Vibration Shaker Table For Laboratory Testing With Life-Long
Test requirements:
1. IEC62133
2. UL1642
3. UN38.3
4. GB31241
5. MIL STD 810G
6. MIL STD 810F
7. IEC 60068-2-5
technical parameters:
| Model | Rated Sine | Rated Random | Frequency | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated displacement | Max. Loading (Kg) | moving coil(Kg) | Dimension of Moving coil(mm) |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3-2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3-2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3-2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3-1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
Features:
1. Set way: Chinese and English menu, computer operation, the use of specialized monitoring and control systems, the data of the whole process can be handing and output.
2. Display functions: dynamic display test curves, multi-Dan, on the number of data.
3. Curve recorder:real-time record of the test data, test data automatically, the test results can be stored, printed.

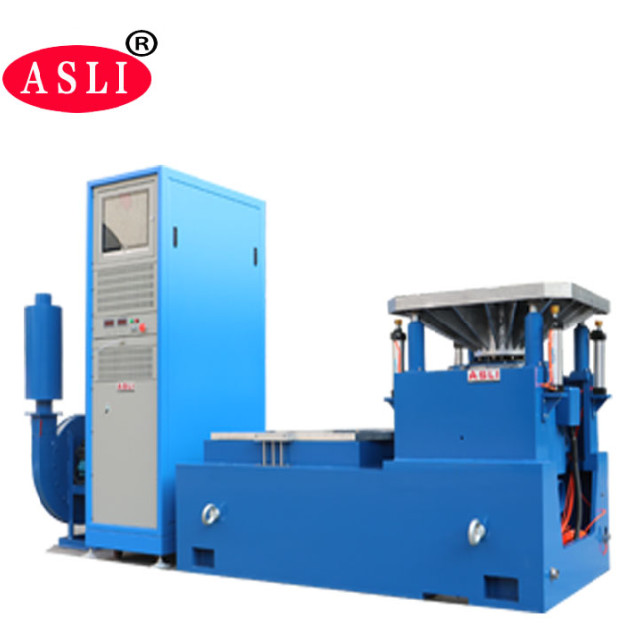

technical parameters of horizontal expander:
| Model | Bench Size (mm) | Frequency Range (Hz) | Weight of Moving Parts (kg) |
| LT0303 | 300×300×22 300×300×26 300×300×30 | 5-1000 5-1500 5-2000 | 6.6 7.8 9.0 |
| LT0404 | 400×400×22 400×400×26 400×400×30 | 5-l000 5-1400 5-2000 | 11.2 13.2 16.0 |
| LT0505 | 500×500×25 500×500×30 500×500×35 | 5-1000 5-1500 5-2000 | 19.3 23.1 27.0 |
| LT0606 | 600×600×25 600×600×30 600×600×40 | 5-1000 5-1200 5-2000 | 27.5 33.0 45 |
| LT0707 | 700×700×25 700×700×30 700×700×35 | 5-800 5-1000 5-1500 | 36.8 44.2 52 |
Universal High Frequency Electrodynamics Vibration Tester can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.
If you need more information about vibration shaker, please don't hesitate to contact us.
