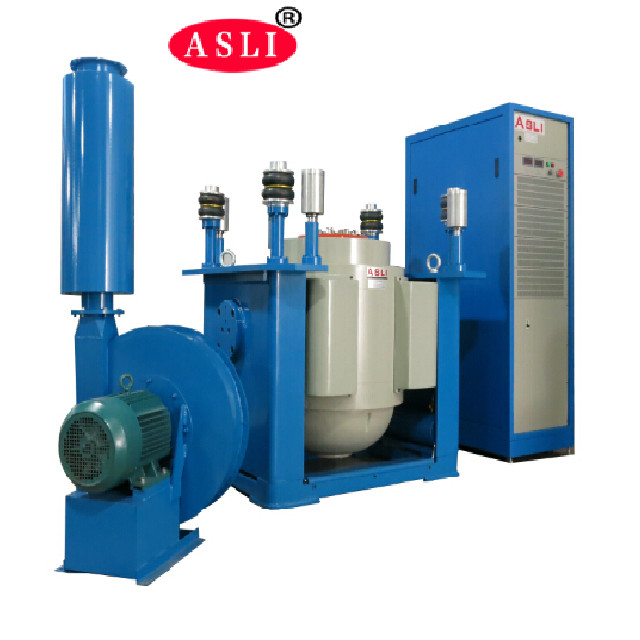

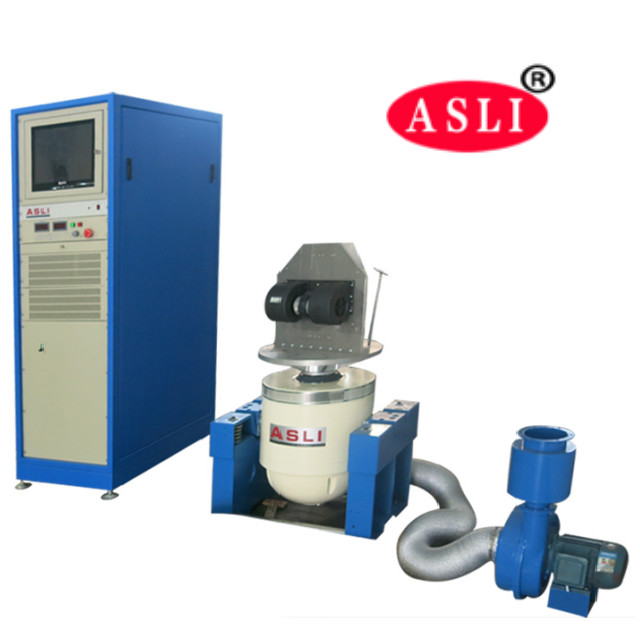

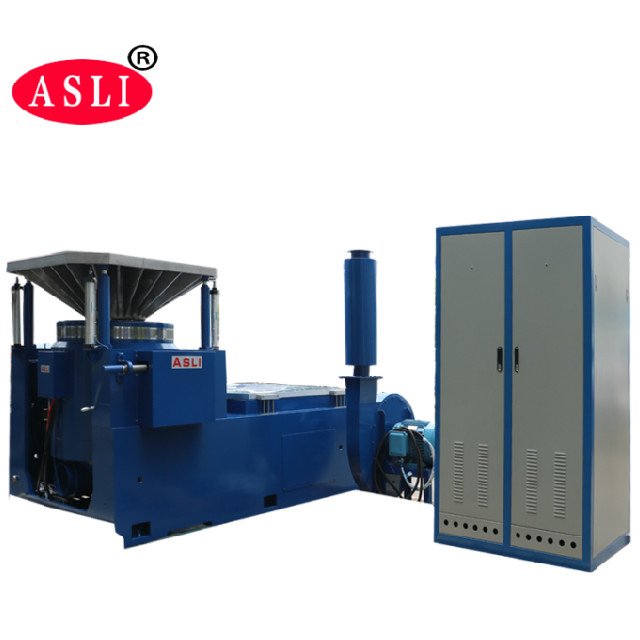

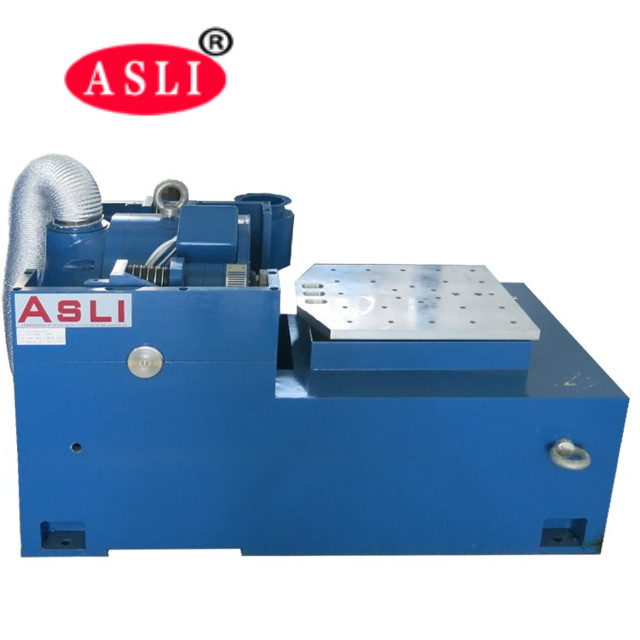

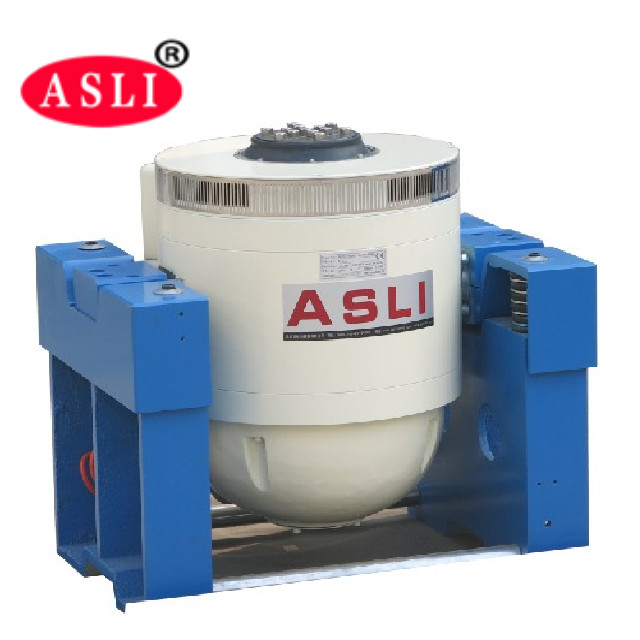

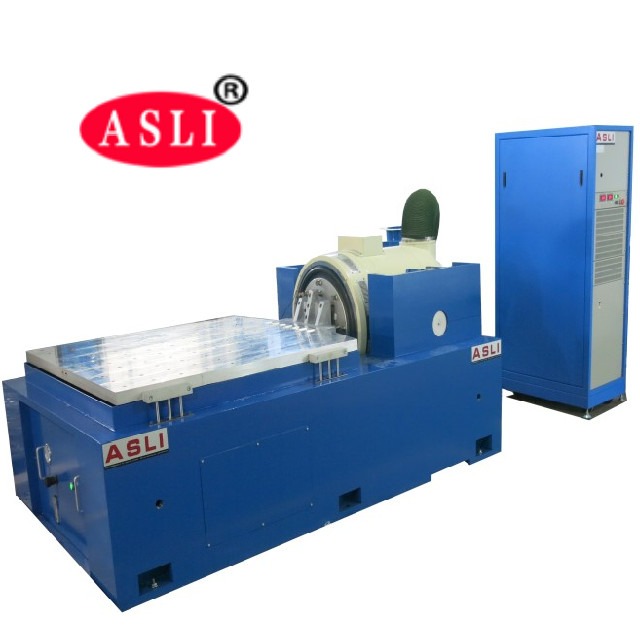

Electrodynamic Vibration Test Equipment For ANSI C135-31 Roadway And Area Lighting
Product Details
| Sine Force: | 20000N | Speed: | 1.8m/s |
|---|---|---|---|
| Displacement: | 51mm | Frequency: | 3~2000HZ |
| Loading: | 300kg | Acceleration: | 100g |
| Armature: | 320mm | ||
| Highlight |
Electrodynamic Vibration Test Equipment,ANSI C135-31 Roadway Lighting Vibration Test Equipment,Electrodynamic Vibration Table Test Equipment |
||
Product Description
High-frequency vertical and horizontal electromagnetic vibration shakers for semiconductor applications are used to evaluate resonant frequencies of product and package designs and to simulate the random vibration that occurs during distribution or in-use environments. The machine is simple to operate and can perform a wide range of vibration tests in accordance with government, industry, and corporate specifications.
- A combined structure of test chamber and refrigerating system boasting compact and graceful design; independent console.
- Convenient operation; original refrigerating compressor unit and its main accessories imported from abroad.
- Imported LCD color touch screen controller capable of automatic control of temperature and humidity programs.
- Equipped with RS232 telecommunication interface. To meet customer's unique demands, users may choose from different models of vibration test bench to ensure good cooling performance.
- Heat and air seal system; this vibration bench also boasts a remarkable effect of mechanical vibration reliability test equipment and shock vibration.
| Model | THV-408(A~F) |
|---|---|
| Internal Dimension | W600 × H850 × D800 (mm) |
| External Dimension | W850 × H1950 × D2100 (mm) |
| Temperature Range |
Low temperature: (A: 25°C; B: 0°C; C: -20°C; D: -40°C; E: -60°C; F: -70°C) High temperature: 100°C (150°C) |
| Humidity Range | 20%~98% R.H. (10%~98% R.H. / 5%~98% R.H. is a special optional condition, requires Dehumidifier) |
| Analytic Accuracy / Distribution Uniformity of Temperature and Humidity | 0.1°C; 0.1% R.H / ±2.0°C; ±3.0% R.H. |
| Control Accuracy of Temperature and Humidity | ±0.5°C; ±2.5% R.H. |
| Temperature Rising / Falling Speed Rate |
Temperature rising approx. 0.1~3.0°C/min / temperature falling approx. 0.1~1.5°C/min; (The Falling Speed Rate Min. 1.5°C/min is a special optional condition) |
| Internal and External Material | Material of the inner box is SUS 304# stainless steel; outer box is stainless steel or SEE cold-rolled steel with paint coated. |
| Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials. |
| Cooling System | Wind cooling or water cooling / single segment compressor (-40°C, double segment compressor -70°C) |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection. |
| Optional Accessories | Inner door with operation hole (Optional), Recorder (optional), Water Purifier, Dehumidifier. |
| Vibration Test Equipment | Choose proper vibration test bench according to customer's test condition; the technical parameters please take Electrodynamics Type Vibration Tester's parameters in this catalog for reference. |
| Power | AC380V 3 phase 5 Lines, 50/60HZ |
Packing Vibration Table / Vibration Table Tester for Auto Parts
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
- Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
- Two-magnetic circuit, low magnetic flux leakage, compact and rational structure.
- Rocker rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
- Trunnion isolation foundation dedicated to hormone use, convenient mobile installation.
- Advanced technology move-around system to ensure the dynamic circle of high reliability.
- New duct design and enhanced cooling effect.
- Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improving low-frequency performance.
Product Highlights
Electrodynamic vibration test equipment for ANSI C135-31 roadway and area lighting. Features 20000N sine force, 300kg loading, 3~2000Hz frequency, 100g acceleration, and 51mm displacement. Offers durable, efficient performance with imported controllers, customizable models, and reliable certification-ready testing.
