High Durability Vibration Testing Machine with 4000kgf Force and 100G Shock for MIL STD 810 G 514.6

Brand Name: ASLI
Model Number: ES-20
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Price: USD 20000~60000
Supply Ability: 30 set per month
Delivery Time: 40 work days after deposit
Payment Terms: T/T,
Standard Packaging: export standard plywood case

Product Details


Sine Force: 60000N Speed: 1.8 M/s
Displacement: 65mm Frequency: 3~3500HZ
Loading: 600kg Acceleration: 100g
Armature: 450mm Brand: ASLI
Table Size: 800x800mm
Highlight

800x800mm Vibration Testing System

,

1.8m/s Vibration Testing System

,

MIL STD 810 Vibration Testing Machine

Product Description

High Durability Vibration Testing Machine with 4000kgf Force and 100G Shock for MIL STD 810 G 514.6

The 4000kgf Force 100G Shock and Vibration Testing System is engineered for rigorous MIL STD 810 G 514.6 vibration testing. It delivers reliable, repeatable performance for evaluating the durability and reliability of machinery systems and structures under dynamic loads.

Download the ES-20 Vibration Test Equipment PDF (vibration test equipment ES-20.pdf)

Why Vibration Testing Is Essential

Vibration can significantly impact the durability and reliability of machinery systems and structures, leading to damage, abnormal stoppages, and catastrophic failures. Vibration measurement is a critical countermeasure to prevent these issues from occurring.

Please feel free to contact us right away with any questions you may have.

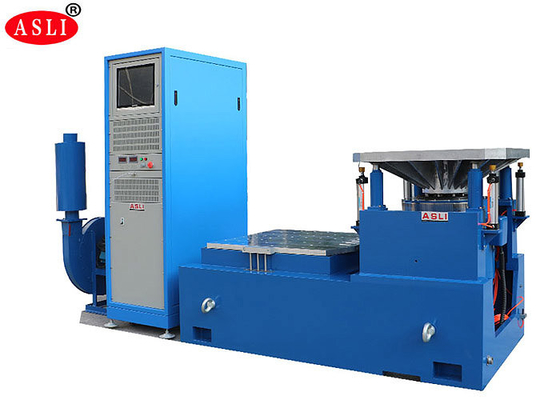

Vibration testing system setup with control equipment and shaker table

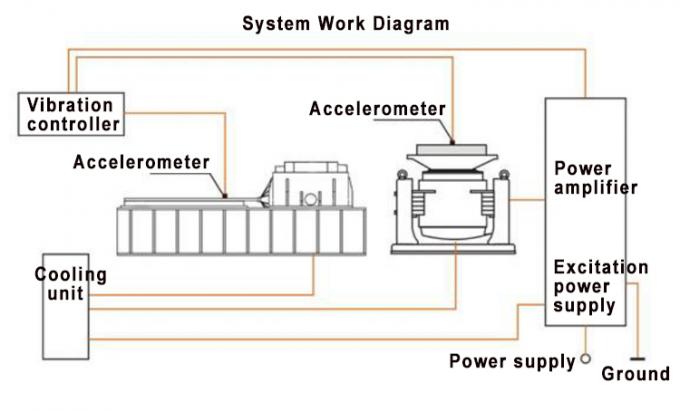

Test System Composition
  1. One-piece horizontal vibration generator
  2. Vertical expansion table
  3. Cooling fan with muffler
  4. Digital switching power amplifier
  5. Multi-function vibration control measuring instrument
4000kgf Force 100G Shock and Vibration Testing System — Specifications

The following table details the specifications for the ES series vibration test benches, including models suitable for automobile battery, EN50604, IEC62133, and UN38.3 testing.

Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p) mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-6 6000 6000 3–3500 1000 1.6 25 180 6.5 Φ230
ES-6a 6000 6000 3–3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3–3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3–3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3–2800 1000 1.8 51 450 40 Φ450
ES-40 40000 40000 3–2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3–2700 1000 1.8 51 750 50 Φ450
ES-60 60000 60000 3–2700 1000 1.8 51 750 60 Φ450
ES-100 100000 100000 3–2500 1000 1.8 51 1000 90 Φ450
Key Design Features
  1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
  2. Two-magnetic circuit, low magnetic flux leakage, compact and rational structure.
  3. Rocker rod roller bearings straight and import-oriented composite body stiffness orientation, with eccentric load capacity.
  4. Trunnion isolation foundation dedicated to hormone use, with convenient mobile installation.
  5. Advanced technology move-around system ensures high reliability of the dynamic circle.
  6. New duct design enhances the cooling effect.
  7. Static stiffness and dynamic stiffness of the bearing small balloon raise the vibration table bearing capacity and improve low-frequency performance.
Product Images

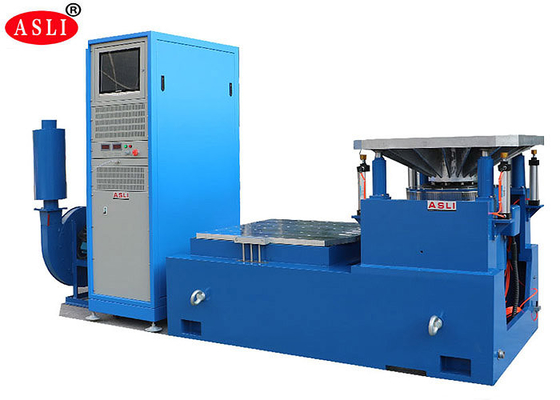

Vibrating shaker table vibration tester with control system
Close-up view of vibration testing machine components and connections
Environmental climate chamber used in conjunction with vibration testing equipment
Detailed view of vibration shaker system remark and labeling
Complete vibration testing system setup with amplifier and control instruments

Product Highlights

ASLI ES-60 vibration testing machine delivers 60000N sine force, 100g acceleration, 3-3500Hz frequency, and 600kg load capacity for MIL STD 810 G 514.6. Features dual magnetic circuit, low flux leakage, and enhanced cooling. Custom options available for reliable durability testing.
