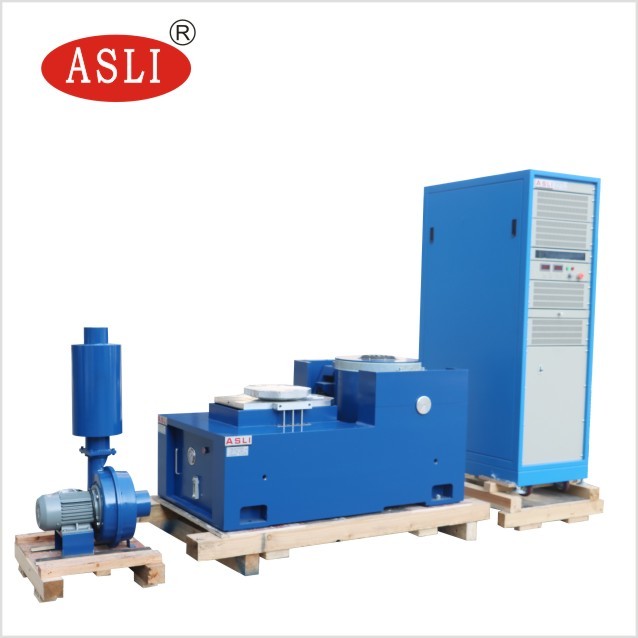

ISTA / ASTM Package Strength Integrity Random Vibration Shaker Tester Customized
Product Details
| Application: | Materila, Automobile Parts, Packing, House Hold Products | Voltage: | 380V |
|---|---|---|---|
| After-sales Service Provided: | Video Technical Support,Online Support,Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service | Applicable Industries: | Defence Industry, Civil, Electronic Appliances, Automotive, Spare Parts, Electronics, Aviation |
| Product Name: | Vibration Test System | Shaker Force: | 60KN |
| Suitable For: | Max Loading 500kgs Test Items | Frequency Range: | 3~2800HZ |
| Highlight |
ASTM Package Vibration Test,380V Package Vibration Test,ISTA High Frequency Vibration Shaker |
||
Product Description
This customized random vibration shaker tester is engineered to evaluate package strength integrity in accordance with ISTA and ASTM standards. It provides a reliable technical means for validating packaging performance throughout the distribution cycle.
The system helps you achieve the following objectives in your package testing program:
- Authenticate suitability for end-use applications
- Help solve problems with current packaging designs
- Identify potential cost savings in packaging materials and processes
- Provide a technical means of comparing package options objectively
- Determine or verify that requirements of a specification, regulation, or contract are met
- Provide standard data for quality assurance documentation
- Provide evidence for product liability, patents, or product claims
- Predict the performance of a package during distribution and use by your customers
To help us recommend the most suitable model for your application, please prepare the following details and send them with your inquiry:
- Specimen description
- Specimen test mass
- Specimen dimensions
- Test profile (if available)
- Maximum acceleration of test
- Test direction: X, Y, Z axes or Z direction only
| System Specification | |
|---|---|
| System Model | ES-60 |
| Frequency Range (Hz) | 3 ~ 2800 |
| Rated Force — Sine (N) | 60000 |
| Rated Force — Random (N) | 60000 |
| Rated Force — Shock (N) | 120000 |
| Maximum Acceleration — Sine (m/s²) | 1000 |
| Maximum Acceleration — Random (m/s² rms) | 1000 |
| Maximum Acceleration — Shock (m/s²) | 2000 |
| Maximum Velocity — Sine (m/s) | 1.8 |
| Maximum Velocity — Shock (m/s) | 1.8 |
| Maximum Displacement — Maximum Travel (mm p-p) | 51 |
| Moving Coil Mass | 50 kg |
| Dimension of Moving Coil | Dia 450 mm |
| Max Load | 750 kg |
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (kg) | Moving Coil (kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-1 | 1000 | 1000 | 3–3500 | 400 | 1.2 | 25 | 70 | 2.5 | Φ150 |
| ES-2 | 2000 | 2000 | 3–3500 | 800 | 1.6 | 25 | 70 | 2.5 | Φ150 |
| ES-2a | 2000 | 2000 | 3–3500 | 300 | 1.6 | 40 | 70 | 8 | Φ230 |
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3–2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3–2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3–2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3–1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
Random vibration test profile example

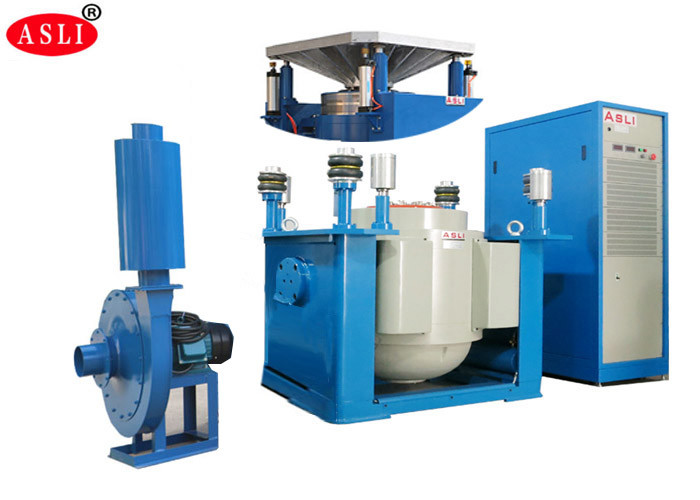

- Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
- Two-magnetic circuit design with low magnetic flux leakage, compact structure, and rational layout.
- Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation, providing excellent eccentric load capacity.
- Trunnion isolation foundation dedicated to hormone use, offering convenient mobile installation.
- Advanced technology in the moving system ensures high reliability of the dynamic circle.
- New duct design enhances the cooling effect.
- Static stiffness and dynamic stiffness of the bearing with small balloon effect, raising the vibration table capacity and improving low-frequency performance.

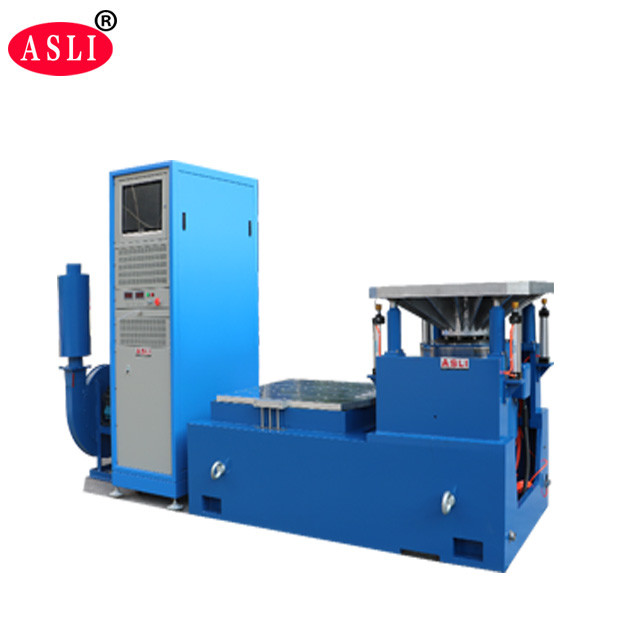

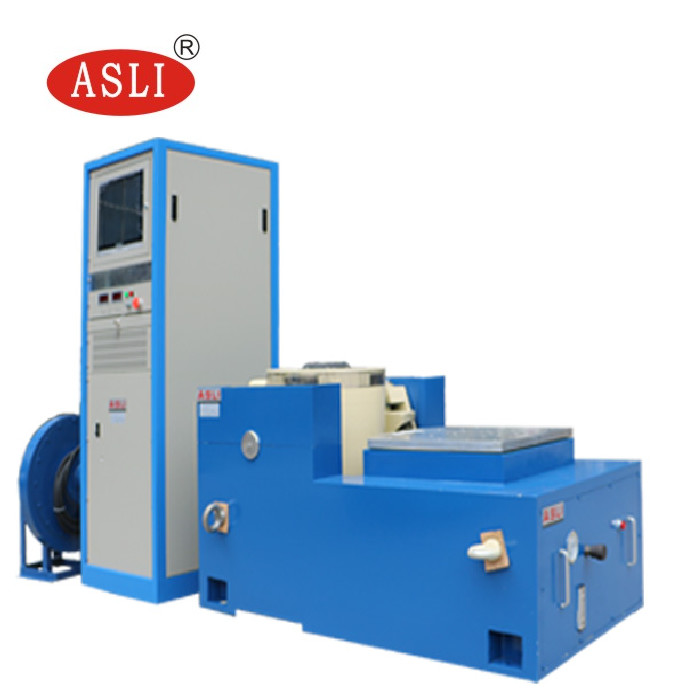

Horizontal vibration table technical parameters (X, Y axis test)
Vertical vibration table technical parameters (Z axis test)
Customer visit at ASLi Company
Product Highlights
ISTA/ASTM vibration shaker tester with 60KN force, 3-2800Hz range, and 500kg max load. Features durable two-magnetic circuit design, high reliability, and enhanced cooling. Offers customized options, global after-sales support, and meets international standards for package integrity testing.
