High Frequency Vibration Test Stand ES-30 for Engine Mounted Vehicles ASLI Sine Vibration Testing
Product Details
| Sine Force: | 6000N | Speed: | 1.6 M/s |
|---|---|---|---|
| Displacement: | 51mm | Frequency: | 3~3500HZ |
| Loading: | 180kg | Acceleration: | 100g |
| Armature: | 230mm | Table Size: | 600x600mm |
| Highlight |
High Frequency Vibration Test Stand,ES-30 Sine Vibration Testing,Engine Mounted Vehicles Vibration Test |
||
Product Description

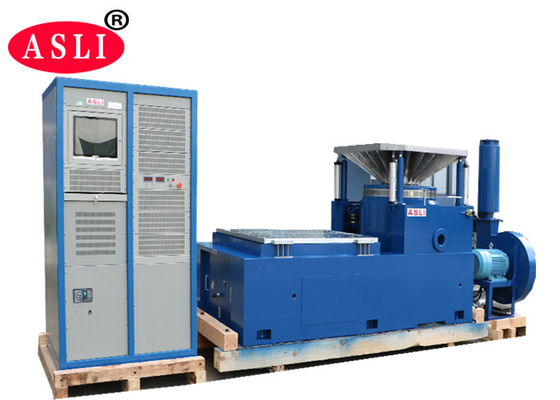

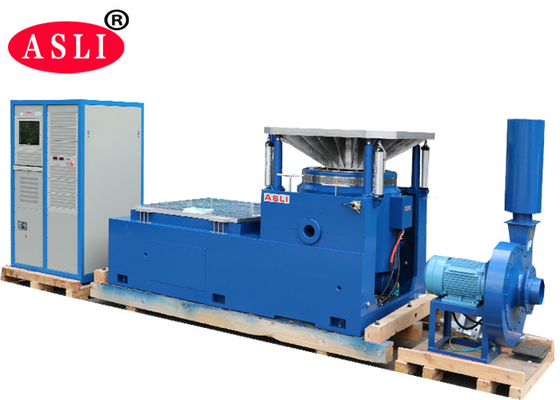

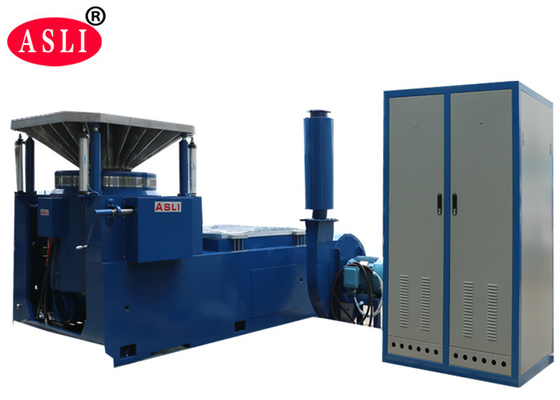

The ASLI ES-30 is a high-frequency vibration test stand engineered for sine vibration testing of engine-mounted vehicle components and automotive products. It delivers reliable, repeatable vibration and shock bump testing for demanding automotive validation programs.
Download ES-30 Specification (PDF)
- One-piece horizontal vibration generator
- Vertical expansion table
- Cooling fan with muffler
- Digital switching power amplifier
- Multi-function vibration control measuring instrument
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
- Well-designed dynamic circle skeleton with a higher stage axial resonance frequency.
- Two-magnetic circuit design with low magnetic flux leakage, compact structure, and rational layout.
- Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation, providing strong eccentric load capacity.
- Trunnion isolation foundation dedicated to vibration isolation, offering convenient mobile installation.
- Advanced technology in the moving system ensures high reliability of the dynamic circle.
- New duct design enhances the cooling effect.
- Static stiffness and dynamic stiffness of the bearing with small balloon effect, raising the vibration table bearing capacity and improving low-frequency performance.
Product Highlights
ES-30 high-frequency vibration test stand delivers 6000N sine force, 3-3500Hz range, 180kg load, and 100g acceleration for engine-mounted vehicle testing. Features advanced cooling, low magnetic leakage, and durable armature. Custom options available.
