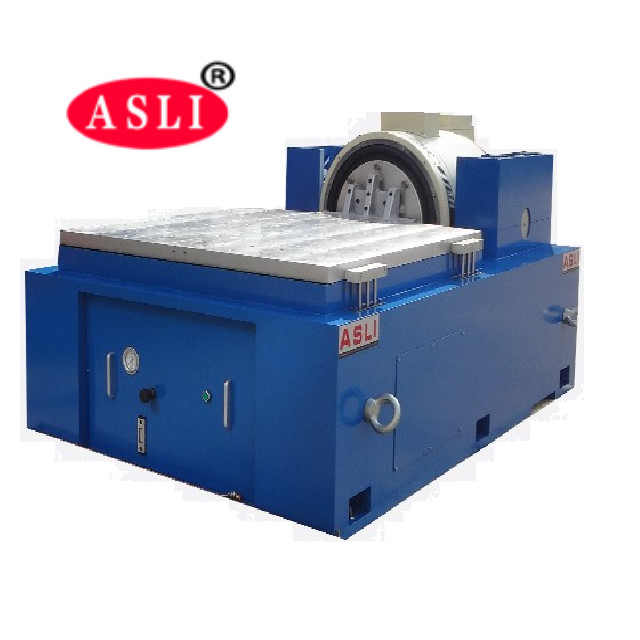

Sine and Random Electrodynamic Vibration Shaker for Vehicle Parts ISO 16750
Product Details
| Certificate: | ISO 9001:20015, CE | Vibration: | 3 Axis |
|---|---|---|---|
| Vibration Force: | Customized | Table Size: | Customized |
| Standard: | ISO 16750 | Application: | Vehicle Parts |
| Test: | Sine And Random | Vibration Direction: | X,Y,Z Three-axis |
| Highlight |
Sine Electrodynamic Vibration Shaker,Vehicle Parts Electrodynamic Vibration Shaker,Random Electrodynamic Shaker System |
||
Product Description
What industry is shaking table suitable for?
- Satellite component testing
- Product and package testing
- General stress screening
- Automotive parts and systems - qualification testing
- Electronic assembly, computer equipment testing
- Avionics hardware testing
Product Description
Vibration Test Equipment adopted the double- magnetic circuit structure, self-generated skeleton action circles, Airborne Support and roller bearings and linear guidance, trunnion isolation advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test.
Not only limited to Automotive Parts, but also widely used in the fields of national defense, weapon, aviation, spaceflight, communication, electronics, electric appliance, transportation and household appliances.
Technical Parameters:
| Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s2) | Rated Speed(m/s) |
Rated displacement (p-p)mm |
Max. Loading (Kg) | moving coil(Kg) |
Dimension of Moving coil(mm) |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |

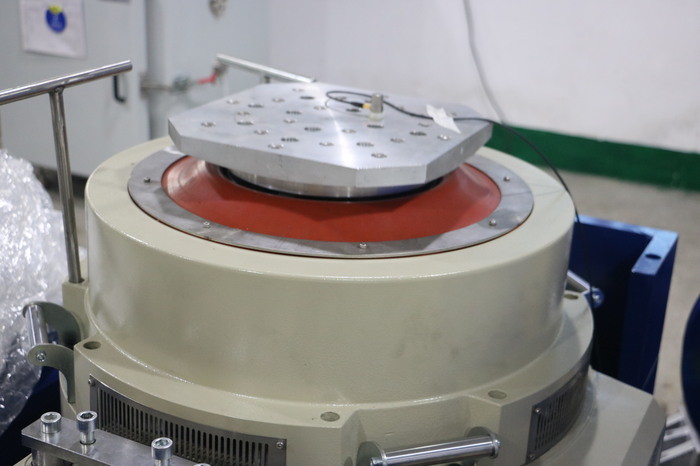

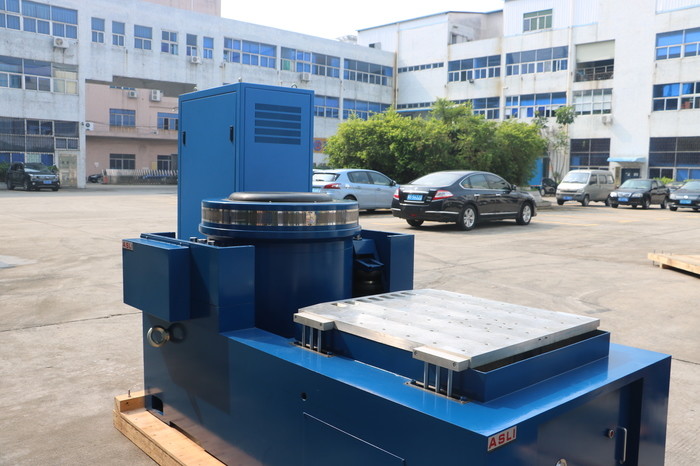

Technical parameters of horizontal expander:
Technical parameters of vertical expander:
Table Size can be customized~
Vibration Shaker can be combined with climatic chamber:
Welcome your inquiry~ ^_^
