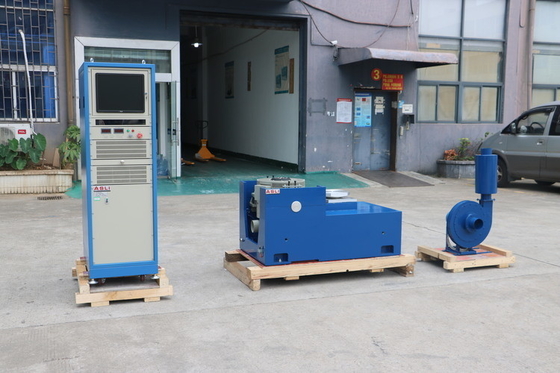

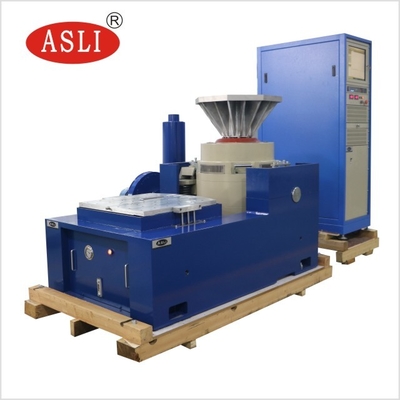

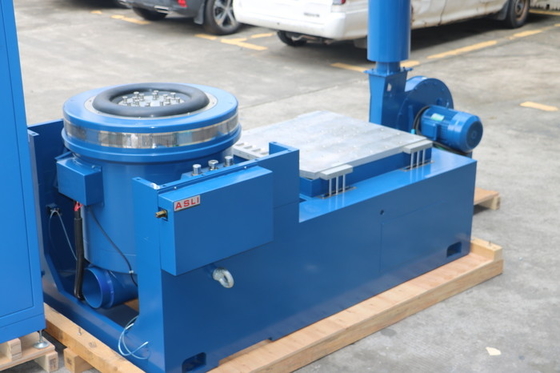

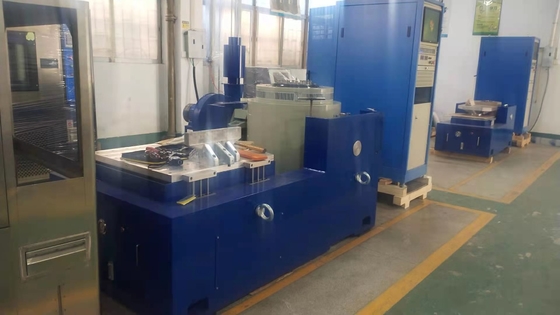

1000kg.F Vertical And Horizontal Vibration Table Testing Equipment For Car Parts
Product Details
| Sine Force: | 6000N | Speed: | 1.8m/s |
|---|---|---|---|
| Displacement: | 25mm | Frequency: | 3~3500HZ |
| Loading: | 180kg | Acceleration: | 100g |
| Armature: | 450mm | Table Size: | 500x500mm |
| Highlight |
1000kg.F Vibration Table Testing Equipment,Electrodynamic Vibration Table Testing Equipment,1.8m/s Vibration Testing Equipment |
||
Product Description
1000kg.f Vertical and Horizontal Vibration Table Testing Equipment for Car Parts Testing
Electrodynamic Vibration Shaker System Random Sine and Shock Function is widely used in defense, aviation, aerospace, communications, electronics, automobiles, home appliances, and other industries. This type of equipment is used for discovering the early faults, simulating the actual working condition and the structure strength test, the product application is wide, the application width is obvious, the test effect is remarkable and reliable. Sine wave, FM, sweep, programmable, frequency multiplier, logarithm, maximum acceleration, amplitude modulation, time control, full function computer control, simple fixed acceleration/fixed amplitude. Equipment through continuous failure to run 3 months of testing, stable performance, reliable quality.
STANDARD SPECIFICATIONS
| Item | Description |
| Sine Force | 10000N |
| Shock Force | 20000KN |
| Frequency Range | 5~3000 Hz |
| Displacement | 51 mm |
| Max. Velocity | 1.8m/s |
| Max. Acceleration | 981 m/s² (without loading) |
| Armature Diameter | 200 mm |
| Permitted Load Torque | >300 N•m |
| Effective Armature Mass | 6 kg |
| Max. Load Capacity | 100kg |
| Magnetic Leakage | ≤1 mT |
| Axial Vibration Isolation Frequency | <3 Hz |
| Load attachment | 16 stainless steel M8 inserts |
| Dimension(L*W*H) | 850*665*760mm |
| Approx. weight | 990kg |
Specification
| Name | Automobile Battery EN50604 IEC62133 UN38.3 Vibration Test Bench for Lab testing | ||||||||
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated displacement (p-p)mm | Max. Loading (Kg) | moving coil (Kg) | Dimension of Moving coil (mm) |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.
