High Frequency Electrodynamics Type Vibration Tester with Shock Response Spectrum Function
Product Details
| Vibration Force: | 30000N | Application: | Battery |
|---|---|---|---|
| Standard: | UN38.3 Standard | Type: | Electromagnetic |
| Vibration Direction: | Electrodynamics | Test: | Sine, Random, Shock, RSTD |
| Optional Function: | Shock Response Spectrum | Frequency Range: | 3~2800hz |
| Highlight |
30000N Electrodynamics Type Vibration Tester,UN38.3 Standard Electrodynamics Vibration Tester,30000N Electromagnetic Test Equipment |
||
Product Description
The High Frequency Electrodynamics Type Vibration Tester with Shock Response Spectrum Function is designed for educational, research, and laboratory environments. It adopts a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings, linear guidance, and trunnion isolation advanced modern technology. This system can perform X, Y, Z three-axis sinusoidal vibration tests and broadband random vibration tests, as well as classical pulse tests (half-sine, trapezoidal, sawtooth wave) and shock response spectrum tests.
These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and home appliances fields.
Download ES-3A Vibration Tester PDF (Specification Document)
| Sine Thrust | 3000 kgf |
| Random Thrust | 3000 kgf |
| Impact Thrust | 6000 kgf |
| Frequency Range | 3–2800 Hz |
| Continued Displacement | 51 mm |
| Impact Displacement | 51 mm |
| Maximum Speed | 1.8 m/s |
| Maximum Acceleration | 981 m/s² |
| Moving Coil Diameter | Φ450 mm |
| Allow Eccentric Moment | >196 N·m |
| Load Connection Point | 6 point |
| Equivalent Mass of Moving Parts | 40 kg |
| Countertops Screw Size (Standard) | M10 |
| Vibration Direction | Vertical + Horizontal |
| Axial Isolation Frequency | <3 Hz |
| Maximum Load | 500 kg |
| Magnetic Flux Leakage | <1 mT |
| Dimensions (without packaging) (L×W×H) | 1000 mm × 550 mm × 850 mm |
| Vibration Table Weight | 1300 kg |
- Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
- Two-magnetic circuit design ensures low magnetic flux leakage, compact structure, and rational layout.
- Rocker rod roller bearings, straight and import-oriented composite body stiffness orientation, and high eccentric load capacity.
- Trunnion isolation foundation dedicated to hormone use, with convenient mobile installation.
- Advanced technology move-around system ensures high reliability of the dynamic circle.
- New duct design enhances the cooling effect.
- Static stiffness and dynamic stiffness of the bearing small balloon raise the vibration table bearing capacity and improve low-frequency performance.

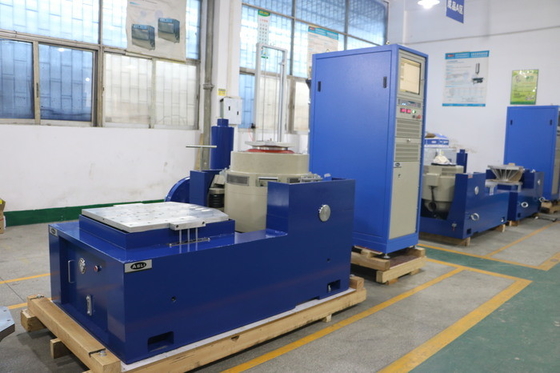

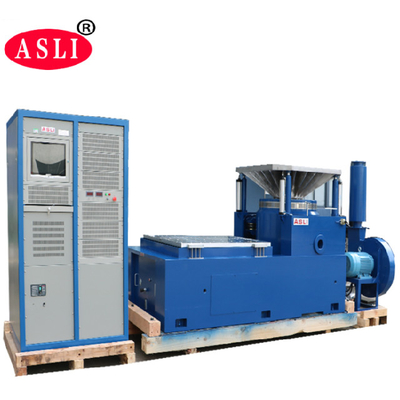

Vibration test bench, power amplifier, cooling fan, slip table, vertical expander.
Any doubt or needs about the High Frequency Electrodynamics Type Vibration Tester with Shock Response Spectrum Function, please feel free to send your inquiry.
