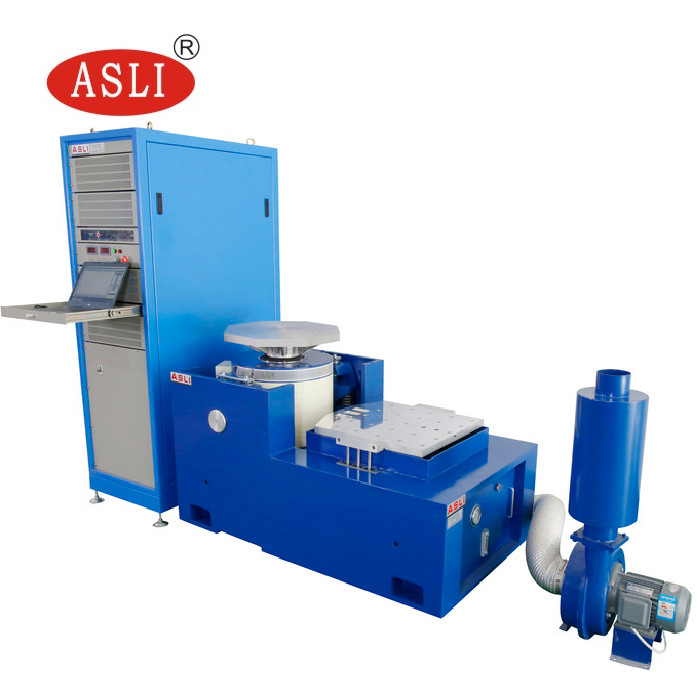

Vertical Horizontal Frequency Sweep Vibration Testing Equipment For Vibration Resistance Test
Product Details
| Vibration Force: | 30000N | Vibration Direction: | Vertical Horizontal |
|---|---|---|---|
| Application: | Auto Parts | Displacement: | 51mm |
| Table Size: | 1000*1000mm | Type: | High Frequency |
| Highlight |
30000N Frequency Sweep Vibration Tester,51mm Vibration Resistance Tester,High Frequency Vibration Resistance Tester |
||
Product Description
The Vertical Horizontal Frequency-Sweep Vibration Testing Equipment for Vibration Resistance Test is widely used in defense, aviation, aerospace, communications, electronics, automobiles, home appliances, and other industries. This type of equipment is used for discovering early faults, simulating actual working conditions, and conducting structure strength tests. The product application is broad, the application width is obvious, and the test effect is remarkable and reliable.
It supports sine wave, FM, sweep, programmable, frequency multiplier, logarithm, maximum acceleration, amplitude modulation, and time control. It features full-function computer control and simple fixed acceleration/fixed amplitude operation. The equipment has undergone continuous failure-free running tests for 3 months, demonstrating stable performance and reliable quality.
Download High Frequency Vibration Test Stand ES-30 (PDF)
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3–2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3–2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3–2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3–1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
| Parameter | Specification |
|---|---|
| Table Size | 1000 × 1000 mm |
| Material | Aluminum alloy |
| Thickness | 40 mm |
| Max. Work Frequency | Sine 1000 Hz, Random 1200 Hz |
| Parameter | Specification |
|---|---|
| Expander Size | 1000 × 1000 mm |
| Material | Aluminum alloy |
| Max. Work Frequency | Sine 500 Hz, Random 1000 Hz |
| Parameter | Specification |
|---|---|
| Max. Output Power | 42 kVA |
| Frequency Response | > 65 dB |
| Output Voltage | 100 Vrms |
| Conversion Efficiency | > 90% |
| Parameter | Specification |
|---|---|
| Power | 15 kW |
| Air Volume | 0.66 m³/min |
| Air Pressure | 0.08 kgf/cm² |
| Air Tube Diameter | 200 mm |
If you need more information about the Vertical Horizontal Frequency-Sweep Vibration Testing Equipment for Vibration Resistance Test, please feel free to contact us.
Product Highlights
ES-30 vibration tester delivers 30000N force, vertical/horizontal testing, 51mm displacement, and 1000x1000mm table. Ideal for auto parts, electronics, and aerospace. Features sine, random, and sweep modes with full computer control. Stable, reliable, and built for rigorous vibration resistance testing.
