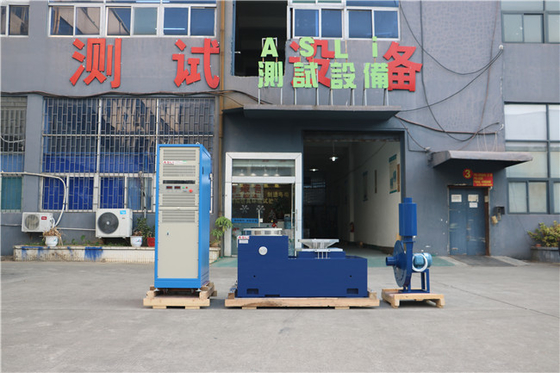

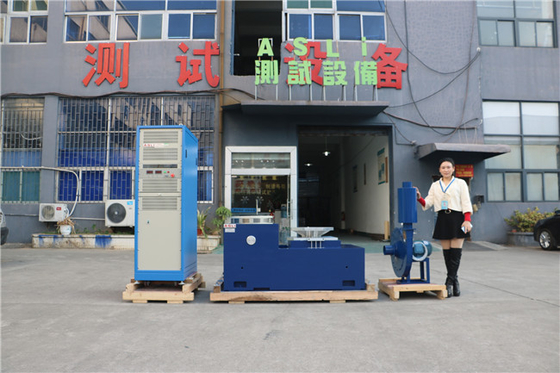

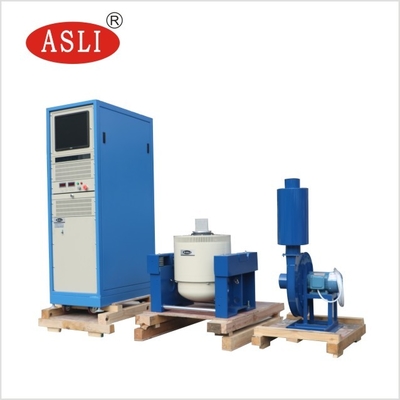

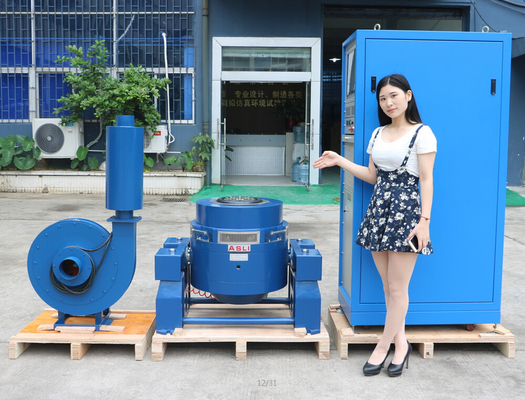

3 Axis Sine And Random Lithium Battery Vibration Shaker Table With UN38.3 Standard
Product Details
| Table Size: | Customized | Voltage: | 3 Phase 380V/50HZ |
|---|---|---|---|
| Frequency Range: | 5 Hz To 3000Hz | Vibration Directions: | 3 Axis |
| Application: | Lithium Battery | Moving Coil: | 3.5kg |
| Highlight |
Sine Vibration Shaker Table,Vibration Shaker Table 3000Hz,UN38.3 3 Axis Vibration Table |
||
Product Description
Vibration testing allows designers, engineers, and manufacturers to determine the stress limits their products can withstand. Testing through vibrations ensures the product is qualified for its intended purpose and meets safety and regulatory standards, as well as complies with any International Standards Organization (ISO) requirements.
This vibration shaker table is specifically designed for lithium battery testing in accordance with the UN38.3 standard. It delivers reliable three-axis sinusoidal and broadband random vibration testing for a wide range of industrial applications.
| Parameter | Specification |
|---|---|
| Model | ES-3 |
| Max Sine Exciting Force (Kg.f) | 300 Kg.f |
| Vibration Body Dimensions | 730 × 550 × 650 mm (L × W × H) |
| Table Size (mm) | Customized |
| Frequency Range (Hz) | 5–2000 Hz |
| Weight of Vibration Body (Kg) | Approx. 450 kg |
| Moving Coil Diameter (mm) | 150 mm |
| Max Displacement (p-p) mm | 25 mm |
| Max Acceleration (m/s²) | 980 m/s² (100g) — without load |
| Max Speed (m/s) | 1.6 m/s |
| Working Environment | Temperature: 0–40°C, Humidity <80% (non-condensing) |
| Cooling Type | Air cooling |
| Power Supply | 3-phase AC 380V, 50Hz / 60Hz |
The Vibration Shaker Table is widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, home appliances, and other fields.
The Vibration Shaker Table adopts a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings, linear guidance, and trunnion isolation — advanced modern technology combined with specialized engineering. It can perform X, Y, Z three-axis sinusoidal vibration tests and broadband random vibration tests, as well as classical pulse tests (half-sine, trapezoidal, sawtooth wave) and shock response spectrum tests.
- The careful design of the moving coil skeleton provides a higher first-order axial resonant frequency.
- Light armature, high stiffness, and a frequency range up to 4500 Hz.
- Computer-connected line control with immediate material storage.
- Display controlling chart for real-time monitoring.
- Low resistance and high-performance design — high efficiency, low cost.
- High reliability with low fault rate.
ES-3 3 Axis Sine and Random Vibration Shaker Table
Temperature Humidity Vibration Test System
Big High Frequency Vibration Shaker
Mechanical Shock and Impact Tester
Product Highlights
3-axis sine and random vibration shaker for lithium battery UN38.3 testing. 5-3000Hz, 300kg.f force, air-cooled, customizable table. High stiffness, low fault, efficient and reliable for defense, aerospace, and electronics.
