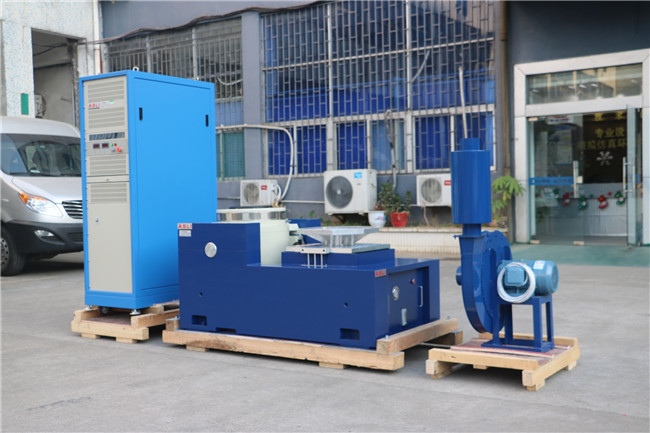

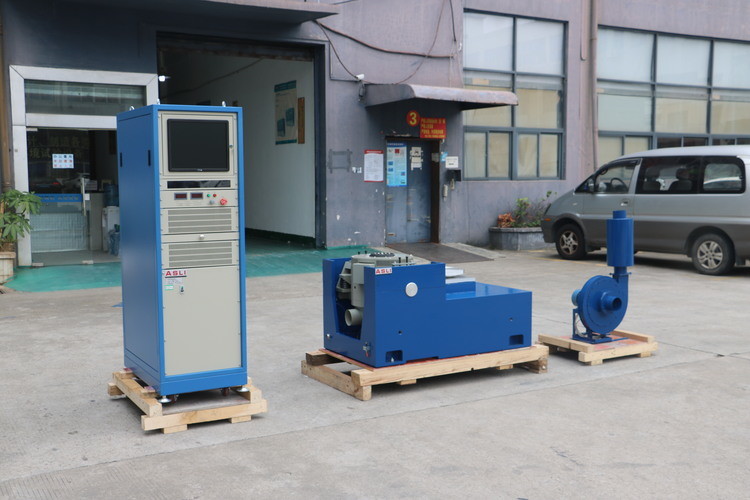

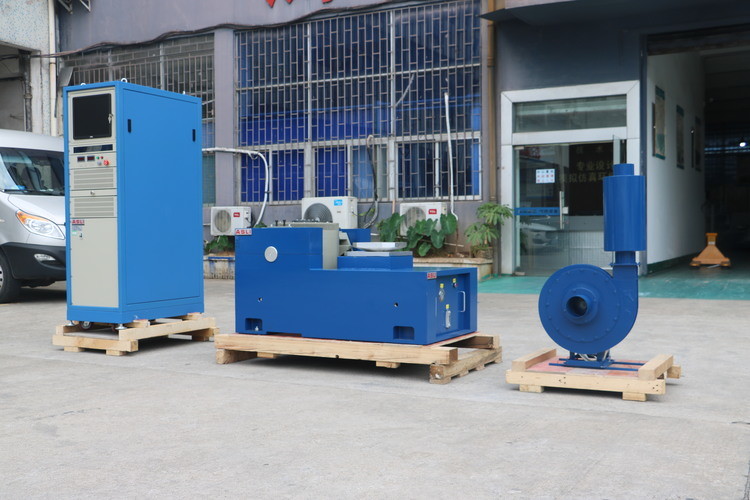

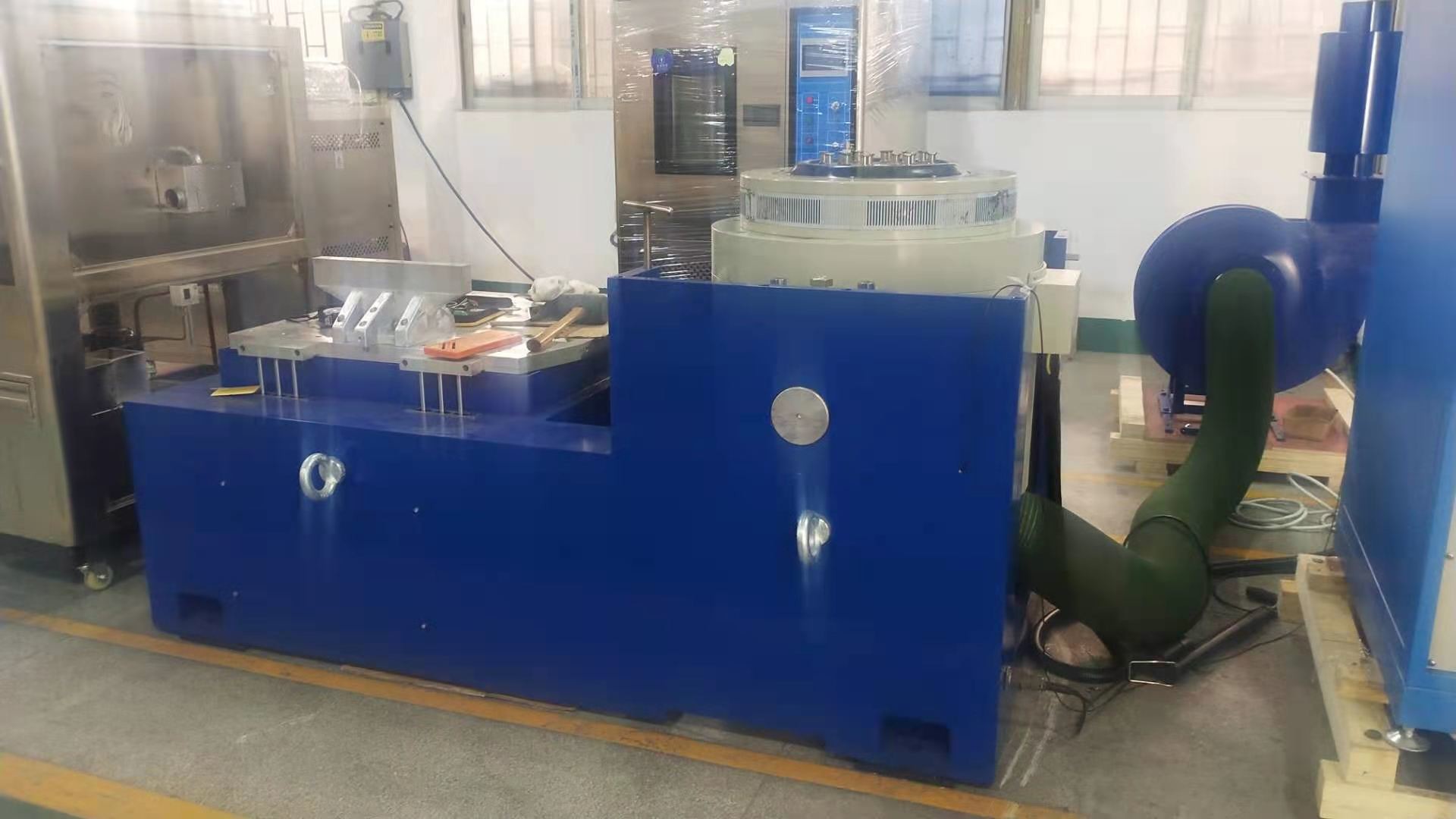

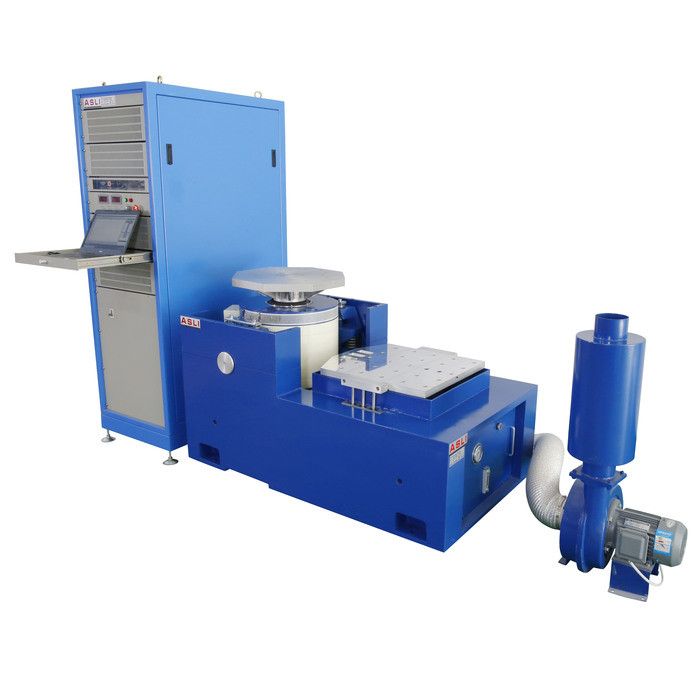

1000kg.F Electromagnetic Vibration Shaker With MIL-STD DIN ISTA
Product Details
| Vibration Direction: | Vertical And Horizontal | Frequency: | 5~3000hz |
|---|---|---|---|
| Vibration Wave: | Sine, Random, Shock | Controller: | Venzo-820 |
| Application: | LED, Auto Parts | Usage: | Electrodynamic Vibration Test |
| Vibration Force: | 1000kg.f | Standard: | MIL-STD DIN ISTA |
| Highlight |
1000kg.F Electrodynamic Shaker System,DIN Electrodynamic Vibration System,1000kg.F Electrodynamic Vibration Shaker |
||
Product Description
The 1000kg.f Electromagnetic Vibration Shaker is engineered to meet rigorous MIL-STD, DIN, and ISTA testing standards. It delivers reliable performance across a wide range of vibration testing applications, including fixed frequency, sweep, sine, random, and shock testing.
This electrodynamic vibrator shaker utilizes a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings, linear guidance, and trunnion isolation. These advanced technologies enable completion of X, Y, and Z three-axis sinusoidal vibration tests, broadband random vibration tests, and classical pulse and shock response spectrum tests (half-sine, trapezoidal, sawtooth wave). The system is widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and home appliances industries.
- Frequency range: 5 Hz to 3000 Hz
- Fixed frequency, sweep back and forth, sine, random, and shock testing modes
- Three-axis (X, Y, Z) sinusoidal vibration testing
- Broadband random vibration testing
- Classical pulse testing: half-sine, trapezoidal, sawtooth wave
- Shock response spectrum testing
- Automotive electronics devices
- Motor meter assemblies
- Automobile storage batteries
- Automotive electric equipment
- Automotive motors
- Water-soluble dielectric batteries
- Safety valves
- Auto air conditioning compressors
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
- Carefully designed moving coil skeleton with higher first-order axial resonant frequency.
- Light armature, high stiffness, and frequency up to 3500 Hz.
- Computer connecting line control with immediate material storage capability.
- Display controlling chart for real-time monitoring.
- Low resistance and high-performance design ensuring high efficiency and low cost.
- High reliability with low fault rate.

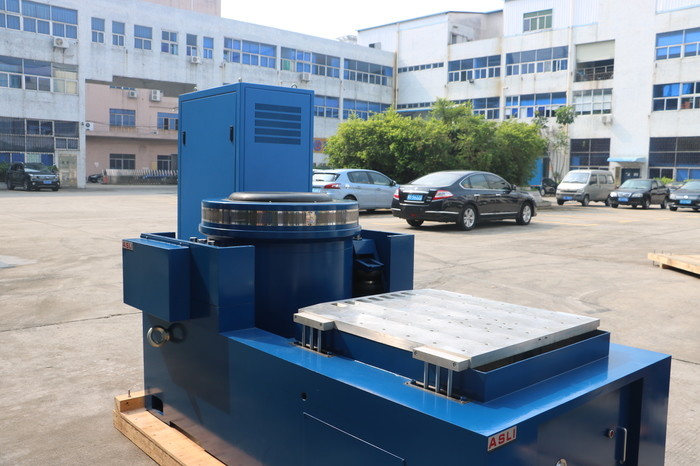

The VT vertical extended-bench and specified clamps are precision-calculated and elaborately designed to ensure the customer acquires the best performance through perfect structure, high-quality materials, and superior workmanship.
- Small loading bench enables higher acceleration and working frequency, improving the loading capacity and performance of the whole machine bench.
- Horizontal bench and vibration bench are an integral type with perfect structure, offering convenience for installation and adjustment.
- Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
- Built-in oil pump with good structure and easy operation.
Any doubt or needs about the 1000kg.f Electromagnetic Vibration Shaker With MIL-STD DIN ISTA, please feel free to contact us.
