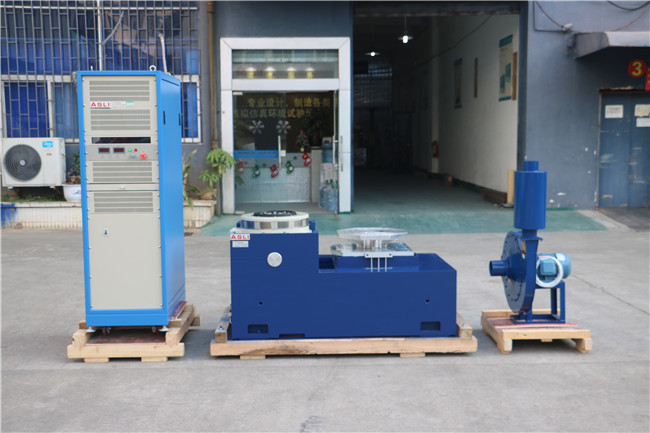

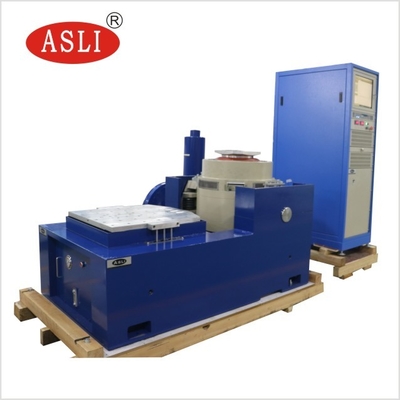

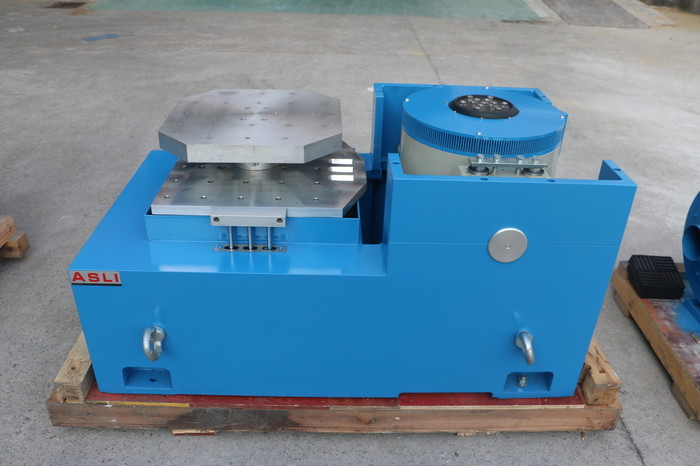

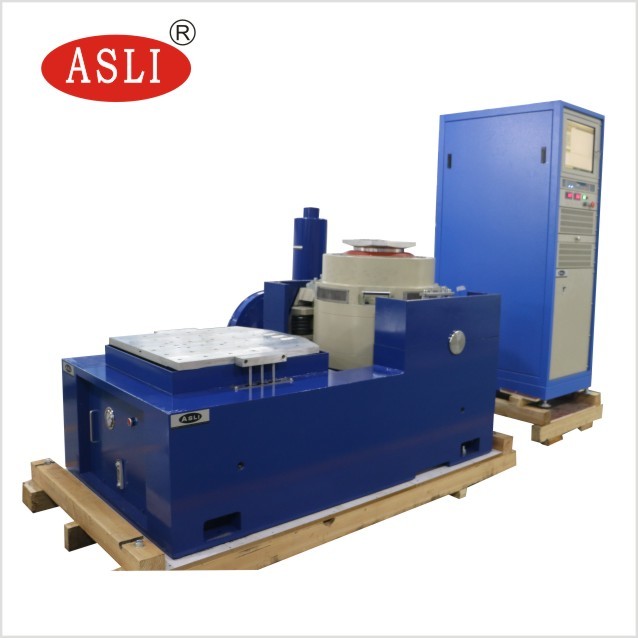

High Frequency Vibration Shaker Table , Laboratory Industrial Vibration Test Machine
Product Details
| Vibration Force: | 30KN | Frequency: | 3~2800 Hz |
|---|---|---|---|
| Speed: | 1.8 M/s | Vibration Direction: | Vertical+horizontal Vibration |
| Acceleration: | 100g | Application: | Laboratory And Industrial |
| Test Standard: | MIL-STD-810G | Displacement: | 100mm |
| Highlight |
30KN Vibration Shaker Table,Laboratory Vibration Shaker Table,2800Hz Vibration Test Machine |
||
Product Description
The High Frequency Vibration Shaker Table is a laboratory and industrial-grade vibration test machine designed for product vibration and shock environment testing, environmental stress screening, and reliability testing. It is suitable for a wide range of applications, from circuit boards and batteries to aircraft, ships, rockets, missiles, automobiles, and home appliances.
The electromagnetic vibration tester is designed in full compliance with battery-related testing standards. During testing, the battery or battery pack is fixed to the vibration table and subjected to vibration along three mutually perpendicular directions at prescribed frequency, acceleration, and displacement modes. The battery must not leak, lose capacity, break, catch fire, or explode under these conditions.
The ASLI vibration shaker meets the following international standards:
- MIL-STD, MIL-STD-810G
- DIN
- ISO
- ASTM
- IEC
- ISTA
- GB, GJB
- JIS
- BS
Download the technical document for storage: High Frequency Vibration Test Stand ES-30.pdf
| Parameter | Specification |
|---|---|
| Sine Force (Peak) | 30 kN |
| Shock Force (Peak) | 60 kN |
| Frequency Range | 3–2800 Hz |
| Displacement (Continuous) | 100 mm |
| Max. Velocity | 1.8 m/s |
| Max. Acceleration | 100 G |
| Armature Diameter | 445 mm |
| 1st Order Resonant Frequency | 2,400 Hz |
| Allowable Eccentric Moment | >500 N·m |
| Armature Weight | 40 kg |
| HE/ST Screw Dimension | M10 (metric) |
| Axial Vibration Isolation Frequency | <3 Hz |
| Max. Payload | 500 kg |
| Magnetic Flux Leakage | ≤1 mT |
| Dimensions (L×W×H, Unpacked) | 1,330 × 860 × 1,250 mm |
| Weight (Unpacked) | 2,500 kg |
| Installation | Rubber mat (anchor bolts required) |
The 30kN High Frequency Vibration Shaker Machine with MIL-STD-810G standard is primarily used for product vibration and shock environment testing, environmental stress screening, and reliability testing.
The electromagnetic vibration tester is designed in full compliance with battery-related testing standards. During testing, the battery or battery pack is fixed to the vibration table and subjected to vibration along three mutually perpendicular directions at prescribed frequency, acceleration, and displacement modes. The battery must not leak, lose capacity, break, catch fire, or explode under these conditions.
The application scope of vibration testing is extremely broad, covering circuit boards, batteries, aircraft, ships, rockets, missiles, automobiles, home appliances, and other industrial products.
- GB/T 31486-2015 — Electrical performance requirements and test methods for traction battery of electric vehicle
- UL 1642:2012 — Standard for Lithium batteries
- UL 2054:2012 — Household and Commercial Batteries
- UN38.3 (2012) — Part 3: Proposal for dangerous goods transport — test and standard manual
- IEC 62133-2:2017 — Safety requirements for portable sealed secondary cells, and for batteries made from them, for use in portable applications — Part 2: Lithium systems
- IEC 62281:2004 — The safety requirements in transport of Lithium battery and battery
- IEC 60086:2007 — Galvanic cell part 4: the security requirements of lithium-ion batteries
Ultra-quiet operation: The machine base uses high-quality materials, installs conveniently, and operates smoothly.
Digital control: The control circuit features digital control and display frequency, with PID adjustment function for stable and reliable equipment operation.
Flexible operation modes: Sweep frequency and fixed frequency operation modes adapt to different professional test requirements.
Electromagnetic interference resistance: Solves the interference of strong electromagnetic fields on the control circuit and increases working time settings, allowing the test product to reach accurate test time.
Wooden case packaging for safe transport and storage.
If you need more information about the High Frequency Vibration Shaker Table Test Machine for laboratory and industrial use, please feel free to send your inquiries.
Product Highlights
30KN high frequency vibration shaker table for lab and industrial testing. Features 3-2800Hz, 100g acceleration, 100mm displacement, vertical+horizontal vibration. Meets MIL-STD-810G, ISO, ASTM, IEC standards. Ideal for battery, automotive, and electronics reliability tests.
