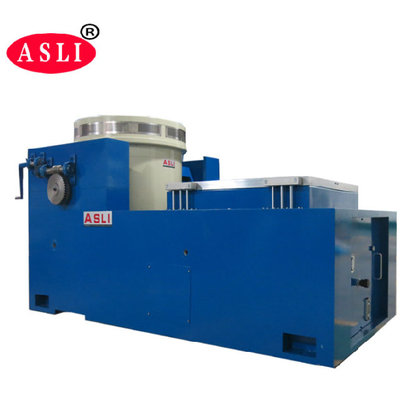

Electromagnetic Type High Frequency Vibration Test Machine Horizontal And Vertical
Product Details
| SINE Force: | 30000N | Frequency: | 3 To 2500hz |
|---|---|---|---|
| Speed: | 1.8m/s | Displacement: | 80mm Or Customized |
| Vibration Direction: | Vertical Or X,y,z | Load Max: | 450kg |
| Meet Standard: | ISTA | Function: | Random Vibration Test |
| Highlight |
30000N Vibration Test Machine,1.8m/s Vibration Test Machine,ISTA Standard Vibration Testing Machine |
||
Product Description

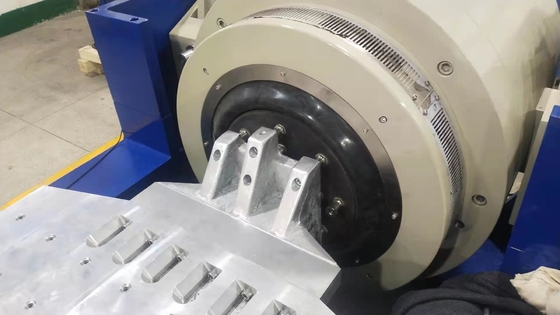

We are a manufacturer of high frequency vibration testers. The High Frequency Vibration Test Machine series adopts advanced modern technologies including a "double-magnetic circuit structure," "self-generated skeleton action circles," "airborne support," "roller bearings and linear guidance," and "trunnion isolation." These systems are capable of completing X, Y, and Z three-axis sinusoidal vibration tests and broadband random vibration tests, as well as classical pulse tests (half-sine, trapezoidal, sawtooth wave) and shock response spectrum tests.
These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and home appliances industries.
- Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
- Two-magnetic circuit design with low magnetic flux leakage, compact structure, and rational layout.
- Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation, providing high eccentric load capacity.
- Trunnion isolation foundation dedicated to hormone use, offering convenient mobile installation.
- Advanced technology move-around system ensures high reliability of the dynamic circle.

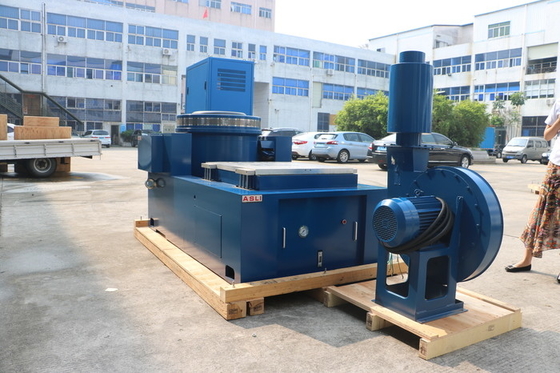

- New duct design enhances the cooling effect.
- Static stiffness and dynamic stiffness of the bearing small balloon raise the vibration table capacity and improve low-frequency performance.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-1 | 1000 | 1000 | 3–3500 | 400 | 1.2 | 25 | 70 | 2.5 | Φ150 |
| ES-2 | 2000 | 2000 | 3–3500 | 800 | 1.6 | 25 | 70 | 2.5 | Φ150 |
| ES-2a | 2000 | 2000 | 3–3500 | 300 | 1.6 | 40 | 70 | 8 | Φ230 |
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3–2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3–2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3–2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3–1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
| Model | Weight (kg) | Max. Frequency (Hz) | Bench Size |
|---|---|---|---|
| VT300 | 10 | 2000 | Φ300 |
| VT400 | 16 | 2000 | Φ400 |
| VT500 | 25 | 1500 | Φ500 |
| VT600 | 35 | 1000 | Φ600 |
| VT0303 | 15 | 2000 | 300×300 |
| VT0404 | 22 | 1500 | 400×400 |
| VT0505 | 30 | 500 | 500×500 |
| VT0606 | 58 | 350 | 600×600 |
| VT0808 | 140 | 350 | 800×800 |
| VT1010 | 180 | 350 | 1000×1000 |
| VT1212 | 250 | 350 | 1200×1200 |
| VT1212 (Round bench) | 220 | 350 | Φ1200 |
We are a testing equipment manufacturer with a long history. Over the past 25 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. The Vibration Shaker Table, which meets ISTA standards and performs random shock tests, is one of our star products, and we have obtained CE certification for this machine.
Any doubt or needs about the Electromagnetic type high frequency horizontal and vertical vibration test machine, please don't hesitate to let us know.
Product Highlights
Electromagnetic high-frequency vibration tester with 30000N force, 3-2500Hz, 450kg load, X/Y/Z axes, ISTA-compliant. Features dual-magnetic circuit, air suspension, and trunnion isolation for durability and efficiency. Custom displacement available. CE certified by 25-year manufacturer.
