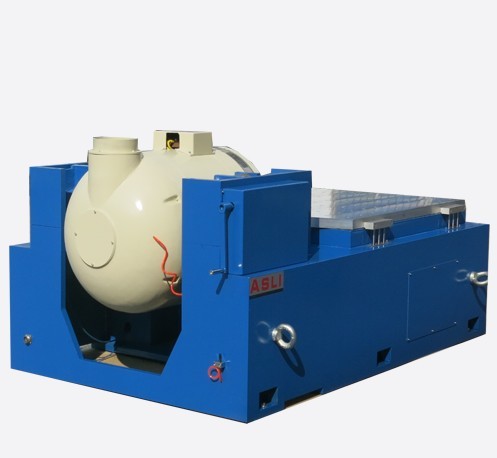

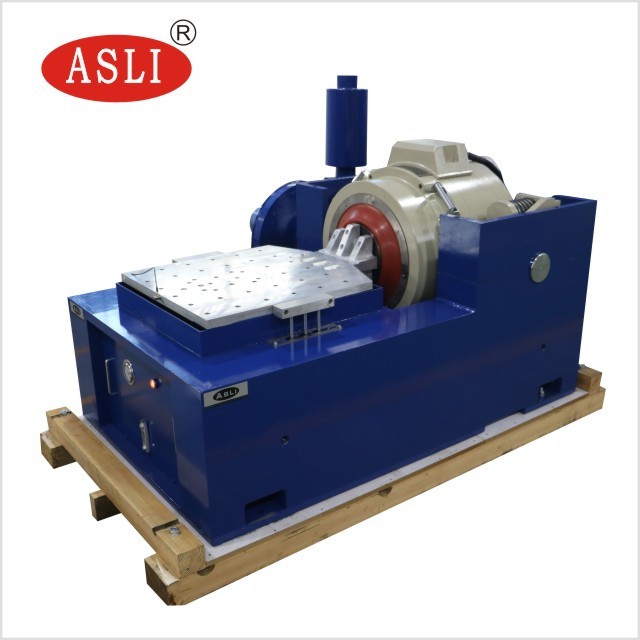

Big Force Electrodynamics High Frequency Vibration Shaker Table 100g Acceleration
Product Details
| Vibration Force: | 30000N | Vibration Direction: | Vertical Horizontal |
|---|---|---|---|
| Application: | Auto Parts | Displacement: | 51mm |
| Table Size: | 1000*1000mm | Type: | High Frequency |
| Acceleration: | 100g | Moving Coil: | 40kg |
| Highlight |
Electrodynamics Vibration Shaker Table,Auto Parts Vibration Shaker Table,30000N Random Vibration Testing Equipment |
||
Product Description
The Big Force Electrodynamics Type High Frequency Vibration Shaker Table with 100g Acceleration is a vertical and horizontal frequency-sweep vibration testing system designed for vibration resistance testing. It is widely used across defense, aviation, aerospace, communications, electronics, automotive, home appliance, and other industries.
This equipment is engineered for discovering early faults, simulating actual working conditions, and conducting structural strength tests. Its broad application range and remarkable, reliable test results make it an essential tool for quality assurance and product validation.
The system supports sine wave, FM, sweep, programmable, frequency multiplier, logarithm, maximum acceleration, amplitude modulation, and time control modes. It features full-function computer control with simple fixed acceleration and fixed amplitude settings. Each unit undergoes continuous failure-free operation testing for 3 months to ensure stable performance and reliable quality.
Download High Frequency Vibration Test Stand ES-30 (PDF)
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3–2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3–2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3–2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3–1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
| Table Size | 1000 × 1000 mm |
|---|---|
| Material | Aluminum alloy |
| Thickness | 40 mm |
| Max. Work Frequency | Sine 1000 Hz, Random 1200 Hz |
| Expander Size | 1000 × 1000 mm |
|---|---|
| Material | Aluminum alloy |
| Max. Work Frequency | Sine 500 Hz, Random 1000 Hz |
| Max. Output Power | 42 kVA |
|---|---|
| Frequency Response | >65 dB |
| Output Voltage | 100 Vrms |
| Conversion Efficiency | >90% |
| Power | 15 kW |
|---|---|
| Air Volume | 0.66 m³/min |
| Air Pressure | 0.08 kgf/cm² |
| Air Tube Diameter | 200 mm |
The Big Force Electrodynamics Type High Frequency Vibration Shaker Table with 100g Acceleration can also be combined with a temperature humidity test chamber for comprehensive environmental testing.
If you need more information about the Vertical Horizontal Frequency-Sweep Vibration Testing Equipment for Vibration Resistance Test, please feel free to contact us.
