Use Friendly High Frequency Dynamic Vibration Shaker System CE Certificated
Product Details
| Vibration Method: | Sine &Random Vibration | Application: | Electrical Parts |
|---|---|---|---|
| Sine Force: | 10000N | Frequency: | 3~3500HZ |
| Max. Speed: | 1.8m/s | Vibration Direction: | Vertical +horizontal Vibration |
| Highlight |
Use Friendly Vibration Shaker System,1.8m/s Vibration Shaker System,IGBT FET Vibration Shaker System |
||
Product Description
The main components of the intelligent high voltage power amplifier are: front control, power amplifier module, protection circuit, power supply part and electric cabinet. The system adopts high voltage and small current output form, which reduces the power loss during transmission and achieves effective and reasonable impedance matching.
technical parameters:
| Model |
Rated Sine |
Random Force (N) |
Frequency (Hz) |
Acceleration (m/s2) | (m/s) |
(p-p)mm |
Max. Load (Kg) | moving coil(Kg) |
DiA coi l(mm) |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |

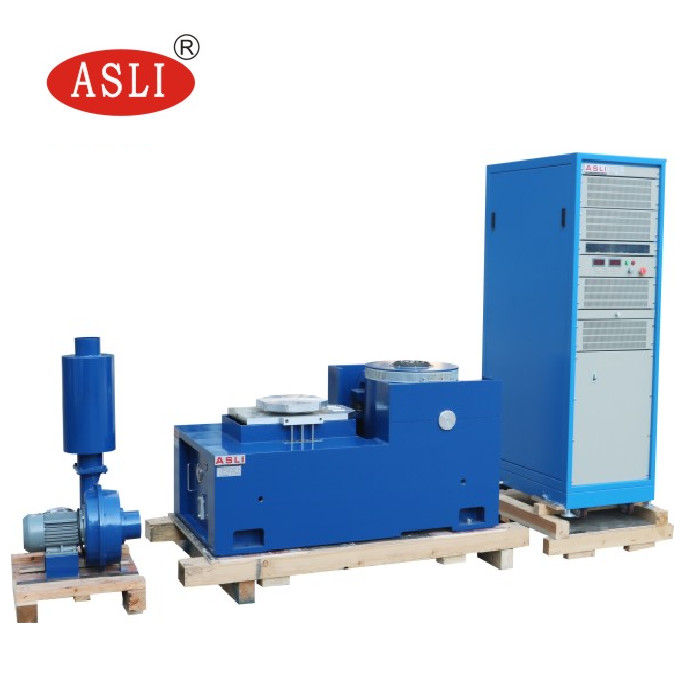

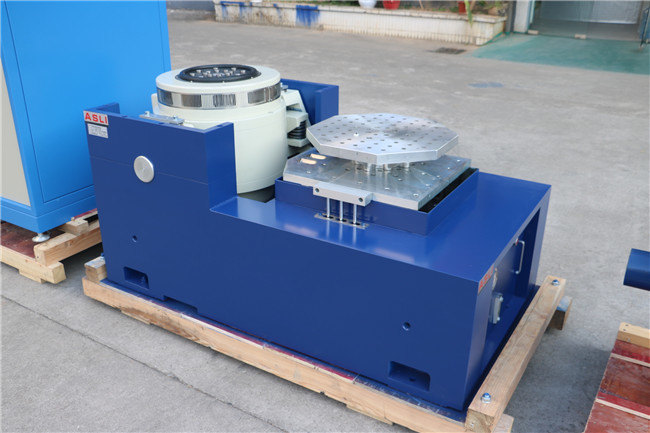

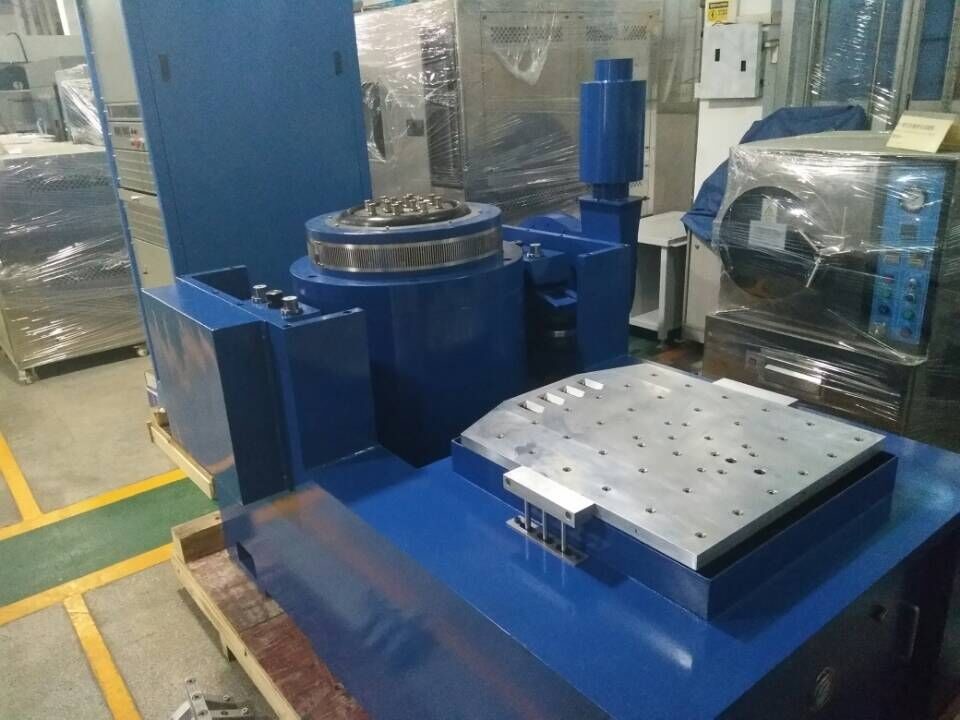

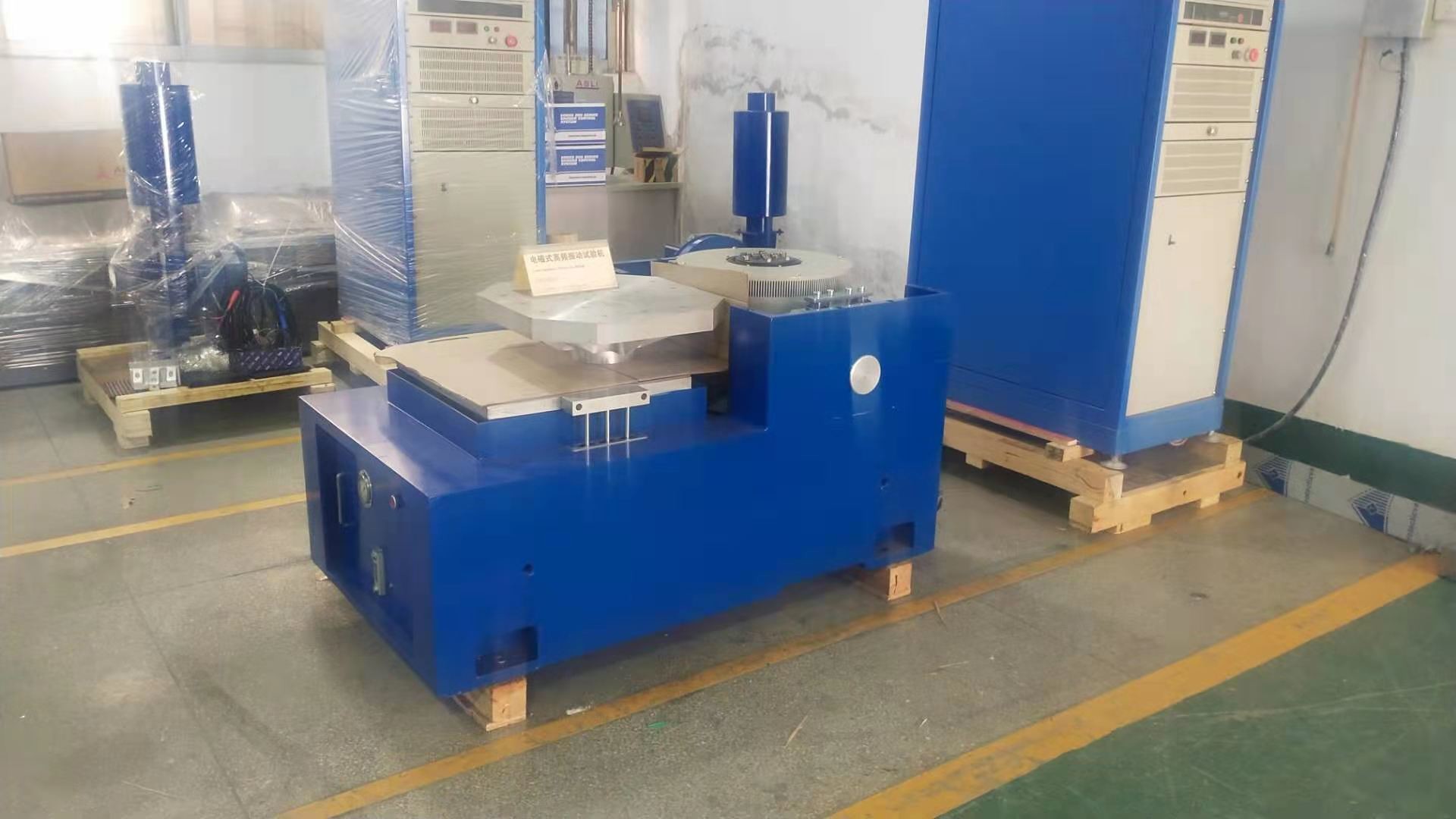

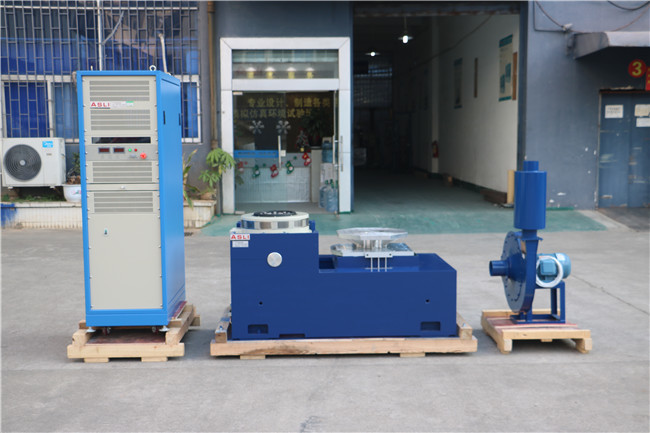

* An air-cooled electro-dynamic shaker
* vibration controller and power amplifier structured into all-in-one cabinet
* achieving 2400 newton's peak sine thrust.

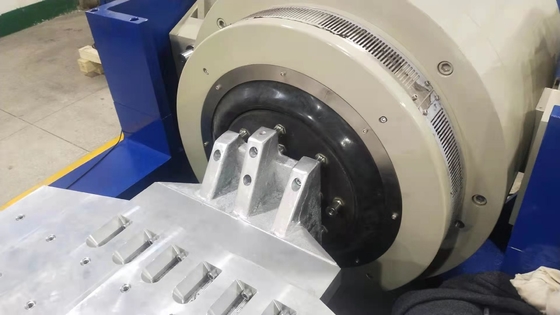

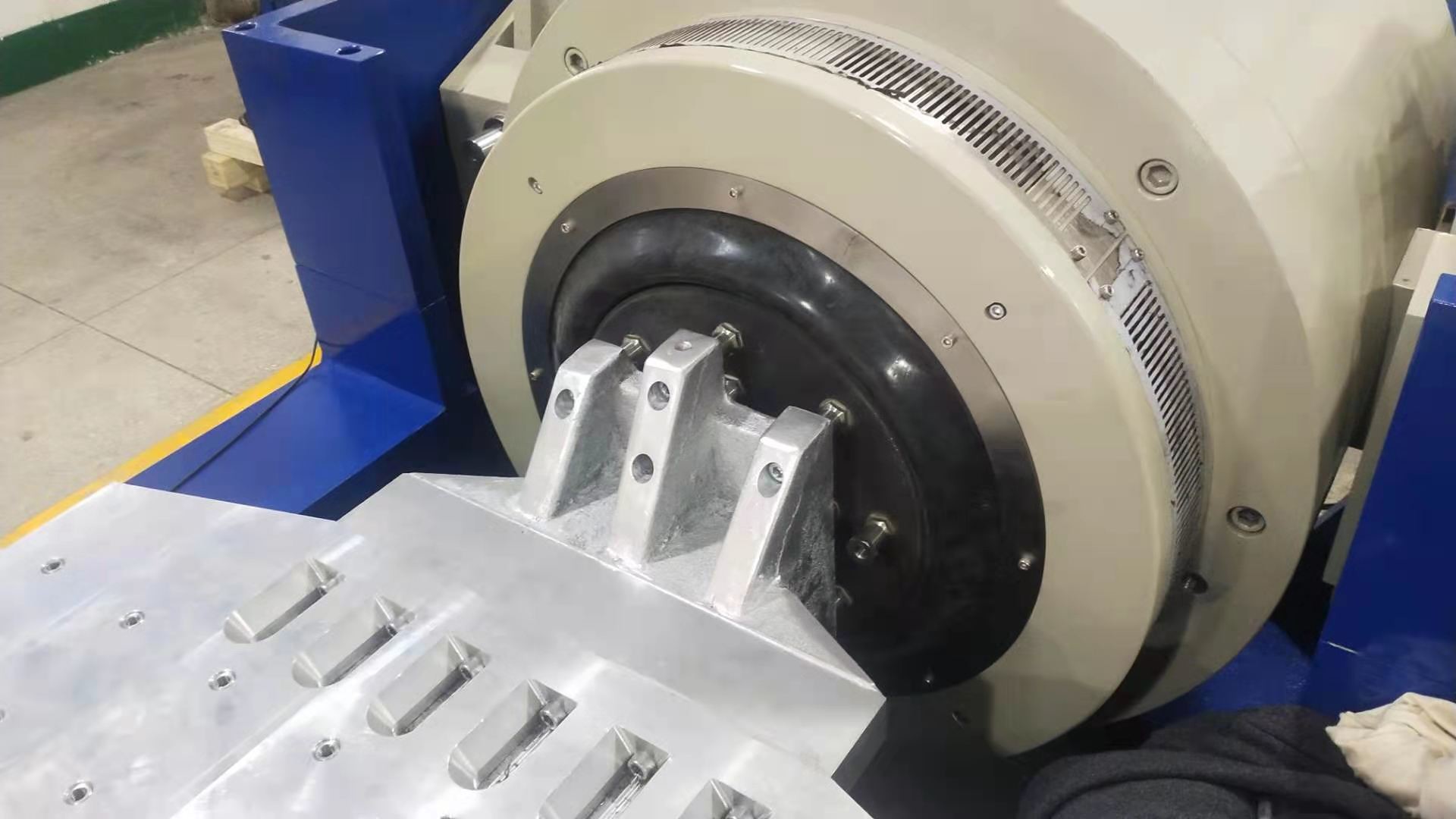

* Xyz 3 axis testing
Control Functions
* Fixed-frequency sinusoidal vibration
* Swept vibration
* Random vibration
* Classical shock
User Benefits
* Easy installation can be done by user
* User interface: lcd touch screen for local mode and pc-windows (thru ethernet) for remote mode;
* Local mode: quick start a pre-defined test, dozens of test specifications can be stored;
* Remote mode: all operations of the system, including test defining and store the test specifications onto mostar, test control, test data review and documentation.
Product Highlights
Electro-dynamic Vibration Mechanical Shaker Table XYZ Axis Testing High Frequency Vibration Tester The system uses a digital power amplifier with sinusoidal pulse width modulation. The working principle is: using the high-frequency switching capability of the IGBT FET, the low-voltage signal input ...
