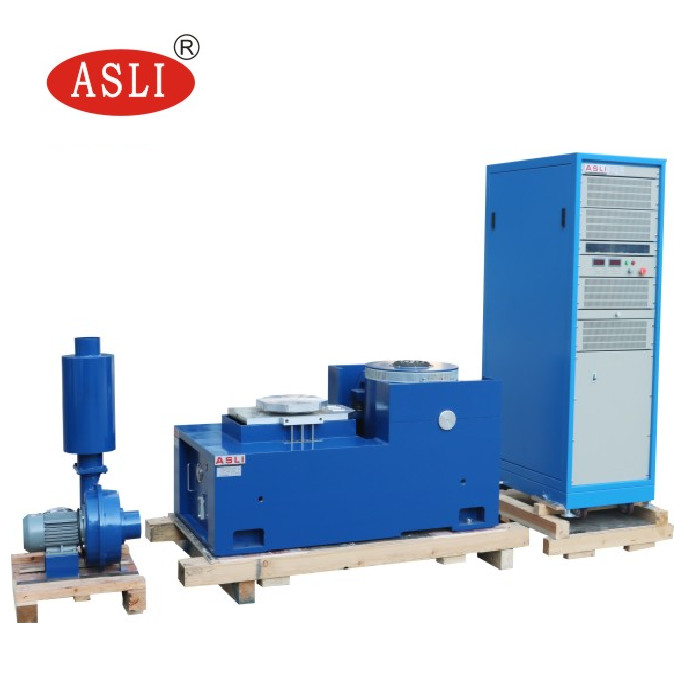

Three Directions Free Vibration High Frequency Vibration Tester For Sinusoidal Vibration Test
Product Details
| Sine Force: | 10000N | Frequency: | 3~3500HZ |
|---|---|---|---|
| Speed: | 1.8m/s | Vibration Direction: | Three Directions |
| Power: | 380v 3 Phase | Acceleration: | 100g |
| Displacement: | 51mm | FUNCTION: | Sinusoidal Vibration Test |
| Highlight |
Three Phase Vibration Tester,Vibration Tester 10000N,1.8m/s High Frequency Vibration Shaker |
||
Product Description

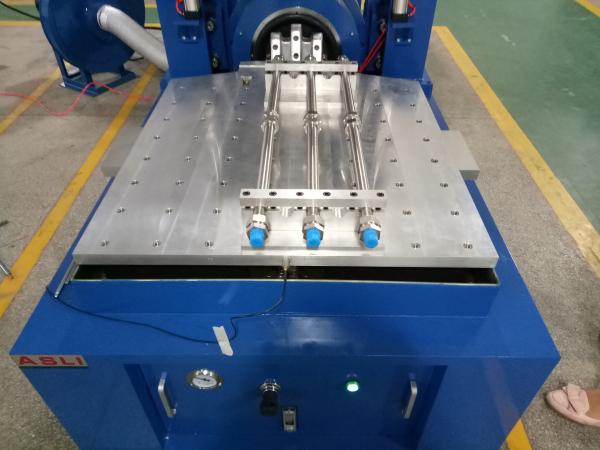

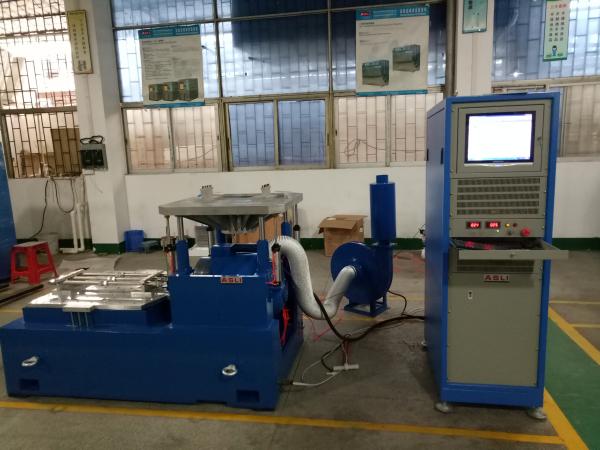

The Three Directions Free Vibration High Frequency Vibration Tester is engineered for precise sinusoidal vibration testing. It utilizes an electrodynamic shaker with a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings, linear guidance, and trunnion isolation. This advanced design enables completion of X, Y, and Z three-axis sinusoidal vibration tests, broadband random vibration tests, and classical pulse tests (half-sine, trapezoidal, sawtooth wave) as well as shock response spectrum testing.
These systems are widely deployed across national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and home appliance industries.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3–2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
The shock tester machine is first wrapped in PP film, then protected with 10mm foam between the machine and the case, and finally packed in a standard export plywood case.
If you have any questions about the Three Directions Free Vibration High Frequency Vibration Tester for Sinusoidal Vibration Test, please feel free to contact us. Thank you.
