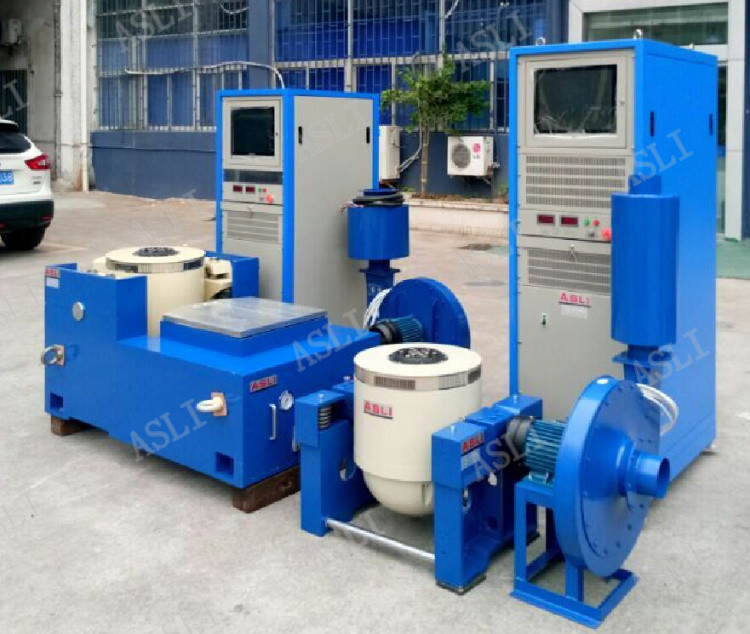

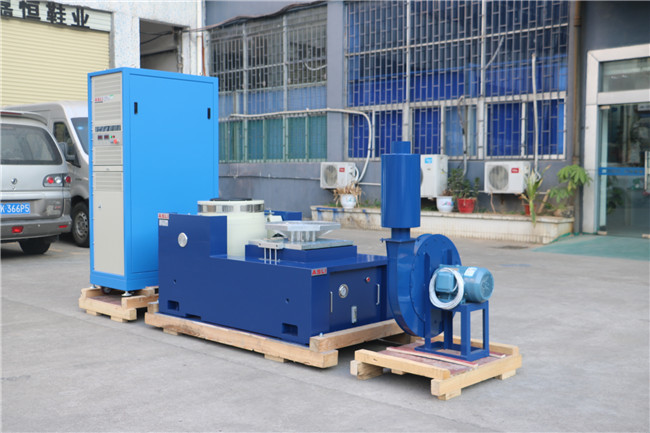

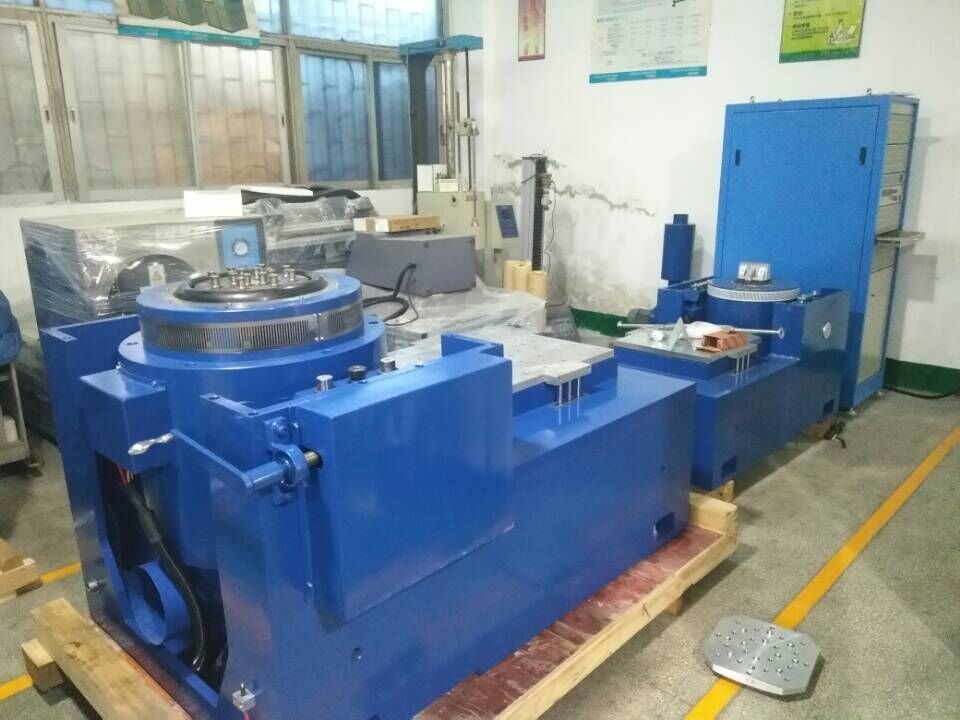

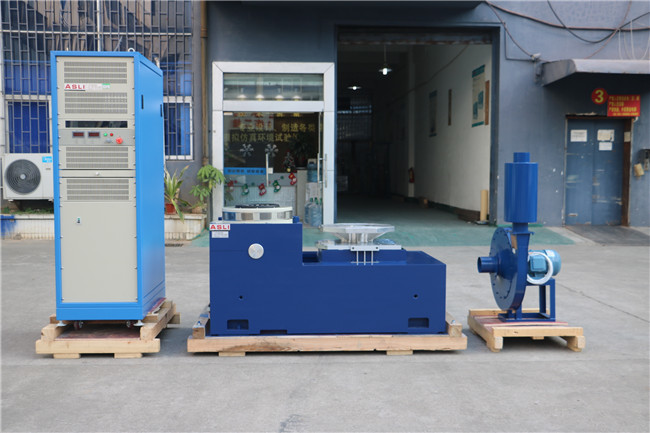

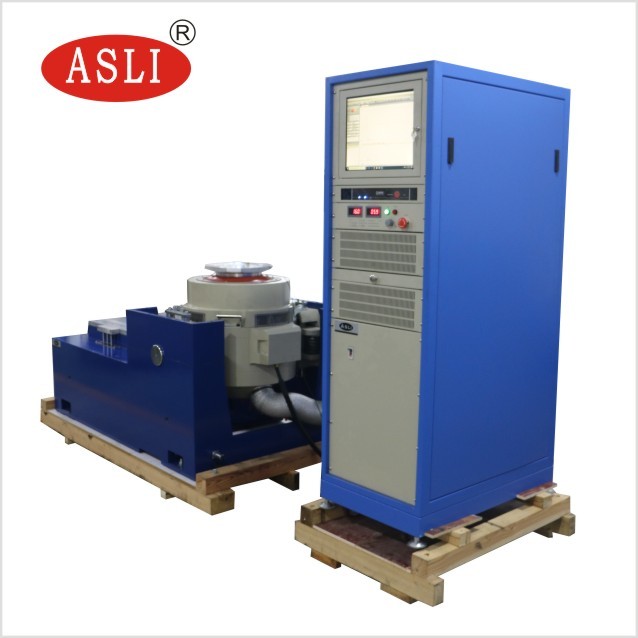

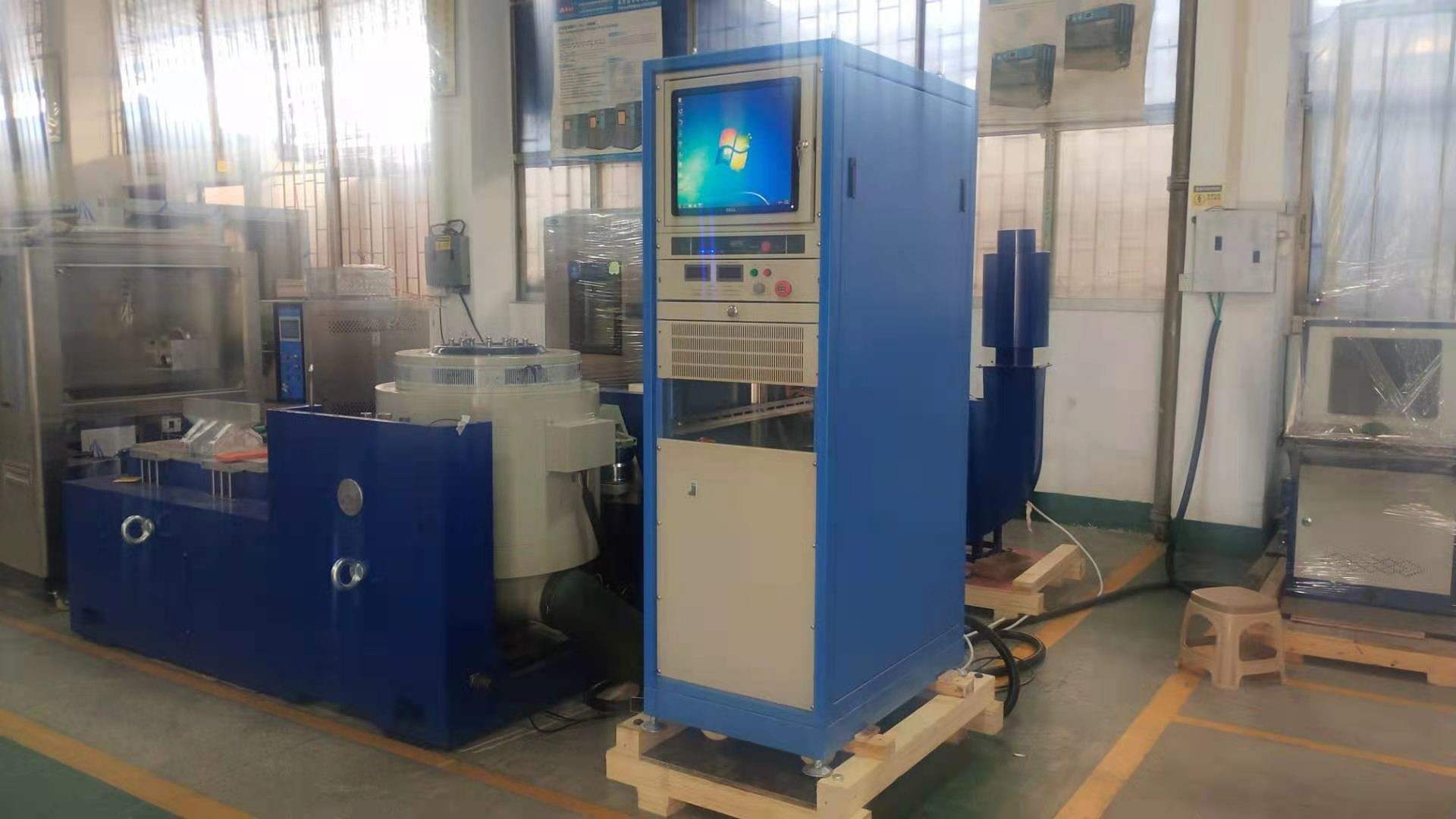

3 Axis Sine Vibration Test Machine For Shock And Vibration Testing
Product Details
| Test Standard: | MIL-STD-810G | Vibration Direction: | 3 Axis |
|---|---|---|---|
| Shaker Force: | 20KN | Suitable For: | Max Loading 300kgs Test Items |
| Frequency Range: | 3~3500HZ | Acceleration: | 100g |
| Applucatuib: | Auto Parts | Function: | Shock And Vibration Testing |
| Highlight |
Loading 300kgs Vibration Test Machine,20KN Vibration Test Machine,Sine Vibration Measuring Equipment |
||
Product Description
To help us recommend the most suitable model for your 3 Axis Sine Vibration Test Machine (Vibration Measuring Equipment for Shock and Vibration Testing), please prepare the following information and send it with your inquiry:
- Specimen description
- Specimen test mass
- Specimen dimensions
- Test profile (if available)
- Maximum acceleration required for the test
- Test direction: X, Y, Z axes or Z direction only
| System Specification | ||
|---|---|---|
| System Model | ES-20 | |
| Frequency Range (Hz) | 3 ~ 3500 | |
| Rated Force (N) | Sine | 20000 |
| Random | 20000 | |
| Shock | 40000 | |
| Maximum Acceleration | Sine (m/s²) | 1000 |
| Random (m/s² rms) | 1000 | |
| Shock (m/s²) | 2000 | |
| Maximum Velocity | Sine (m/s) | 1.8 |
| Shock (m/s) | 1.8 | |
| Maximum Displacement (mm p-p) | 51 | |
| Moving Coil Mass | 30 kg | |
| Dimension of Moving Coil | Dia 320 mm | |
| Max Load | 300 kg | |
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p mm) | Max. Loading (kg) | Moving Coil (kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-1 | 1000 | 1000 | 3–3500 | 400 | 1.2 | 25 | 70 | 2.5 | Φ150 |
| ES-2 | 2000 | 2000 | 3–3500 | 800 | 1.6 | 25 | 70 | 2.5 | Φ150 |
| ES-2a | 2000 | 2000 | 3–3500 | 300 | 1.6 | 40 | 70 | 8 | Φ230 |
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3–2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3–2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3–2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3–1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
- Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
- Two-magnetic circuit, low magnetic flux leakage, compact structure, and rational design.
- Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation, providing excellent eccentric load capacity.
- Trunnion isolation foundation dedicated to hormone use, with mobile convenience for installation.
- Advanced technology moving system ensures high reliability of the dynamic circle.
- New duct design enhances the cooling effect.
- Static stiffness and dynamic stiffness of the bearing with small balloon effect, raising the vibration table capacity and improving low-frequency performance.
If you need more information about the 3 Axis Sine Vibration Test Machine (Vibration Measuring Equipment for Shock and Vibration Testing), please don't hesitate to send your inquiry.
Product Highlights
ES-20 3 Axis Sine Vibration Test Machine meets MIL-STD-810G, 20KN force, 3~3500Hz, 100g acceleration, 300kg load. Ideal for auto parts shock and vibration testing. Durable, efficient, customizable models available.
