Sine and Random Vibration Testing Machine , Vibration Shaker Table Systems
Product Details
| Sine Force: | 10000N | Frequency: | 3~3500HZ |
|---|---|---|---|
| Speed: | 1.8m/s | Vibration Direction: | VERTICAL HORIZONTAL VIBRATION |
| Power: | 380v 3 Phase | Acceleration: | 100g |
| Displacement: | 51mm | Function: | Sine And Random |
| Highlight |
Vibration Testing Machine 10000N,Vibration Testing Machine 1.8m/s,Random Vibration Shaker Table |
||
Product Description

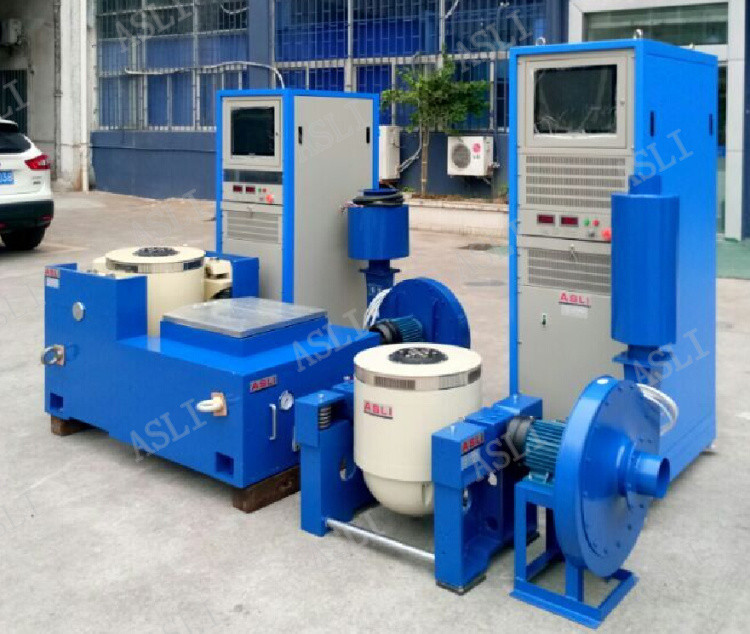

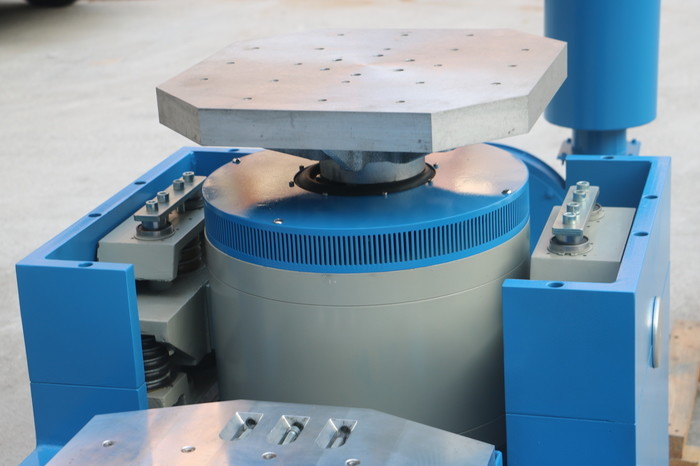

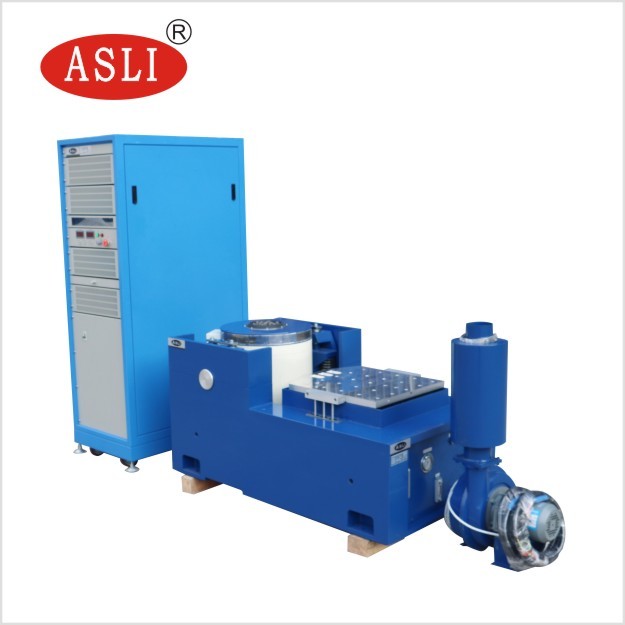

The Electrodynamic Vibration Shaker System is engineered with a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings, linear guidance, and trunnion isolation. This advanced design enables precise completion of X, Y, and Z three-axis sinusoidal vibration tests and broadband random vibration tests. It also supports classical pulse testing (half-sine, trapezoidal, sawtooth wave) and shock response spectrum analysis.
These systems are widely deployed across national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and home appliance industries.
Download the ES-10 Vibration Test Equipment PDF (vibration test equipment ES-10.pdf)
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3–2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |

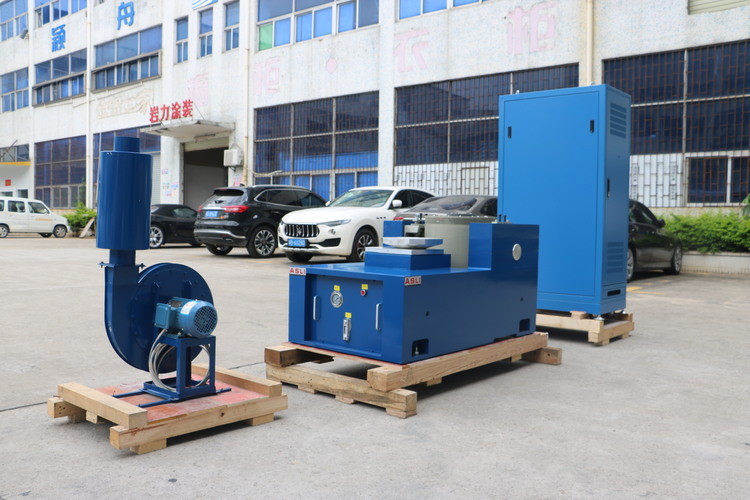

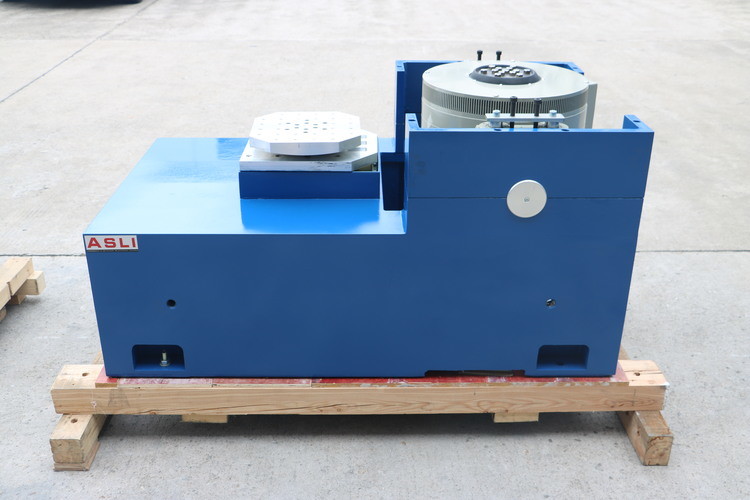

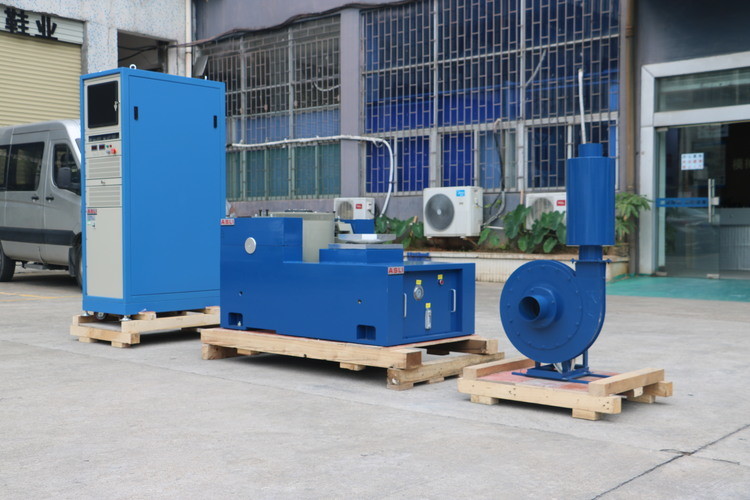

Each shock tester machine is first wrapped in PP film, then protected with 10mm foam between the machine and the case, and finally packed in a standard export plywood case.
If you have any questions about the Sine and Random Vibration Testing Machine or Vibration Shaker Table Systems, please feel free to contact us. Thank you.
