Vertical Horizontal 3 Axis XYZ Vibration Test Machine for Accelerated Vibration Testing

Brand Name: ASLI
Model Number: ES-3
Place of Origin: CHINA
Certification: CE
Minimum Order Quantity: 1 set
Price: $20000
Supply Ability: 100 sets per quarter
Delivery Time: 30~40 days
Payment Terms: T/T, L/C, Western Union
Standard Packaging: strongly wooden case

Product Details


Vibration Force: 3000N Vibration Direction: 3 Axis
Vibration Mode: Sine Random Displacement: 25 Mm
Diameter Of Moving Coil: 230mm Application: Auto Parts
Power: 380v 3phase 5 Line Max Load: 100kgs
Function: Accelerated Vibration Testing
Highlight

380v Vibration Test Machine

,

Vibration Test Machine 3000N

,

Accelerated XYZ Vibration Testing Machine

Product Description

Product Overview

The ES series electromagnetic vibration system simulates vibration environments under laboratory conditions, testing the impact strength and reliability of various vibration test applications. In the laboratory, with the aid of a vibration testing system, model simulation of sinusoidal, random, resonant search and dwell, classical shock, and road simulation can be achieved. It is essential for product quality assurance, new product research, and development.

Download ES-3A Vibration Tester PDF (Technical Datasheet)

Technical Parameters
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p) mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-3 3000 3000 3–3500 1000 1.6 25 100 3.5 Φ 150
ES-3a 3000 3000 3–3500 400 1.6 40 120 9 Φ230
ES-6 6000 6000 3–3500 1000 1.6 25 180 6.5 Φ230
ES-6a 6000 6000 3–3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3–3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3–3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3–2800 1000 1.8 51 450 40 Φ450
ES-40 40000 40000 3–2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3–2700 1000 1.8 51 750 50 Φ450
ES-60 60000 60000 3–2700 1000 1.8 51 750 60 Φ450
ES-100 100000 100000 3–2500 1000 1.8 51 1000 90 Φ450
ES-120 120000 120000 3–2200 1000 1.8 51 1100 90 Φ500
ES-160 160000 160000 3–2100 1000 1.8 51 1500 150 Φ600
ES-200 200000 200000 3–2000 1000 1.8 51 2500 200 Φ650
ES-350 350000 350000 3–1700 1000 1.8 51 4500 300 Φ870
Key Features & Design

The X, Y, Z 3-axis vibration test system with 3500 Hz frequency, sine/random force, and high-frequency vibration is specially designed to meet the need for long-time operation. Installation of a vibration-resistant base enables both vertical and horizontal vibration. The standard platform is equipped with a high-efficiency airbag shock isolation device, minimizing vibration transmitted to the building and, at the same time, avoiding the need for an additional foundation in most cases.

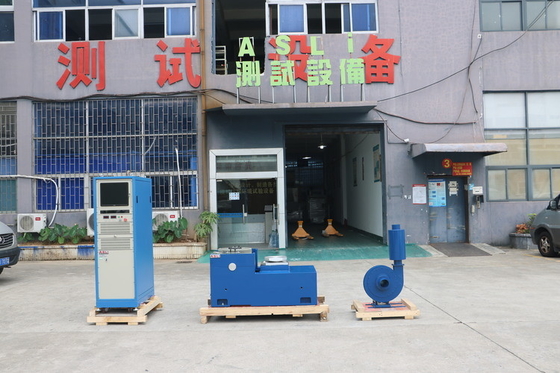

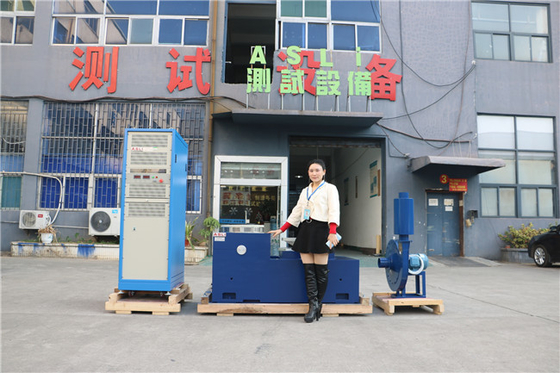

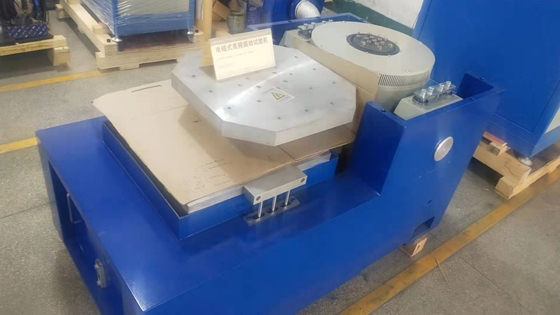

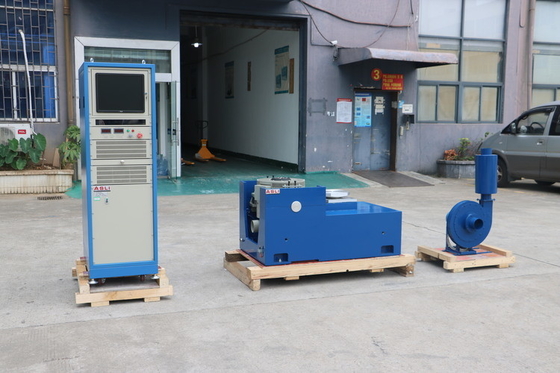

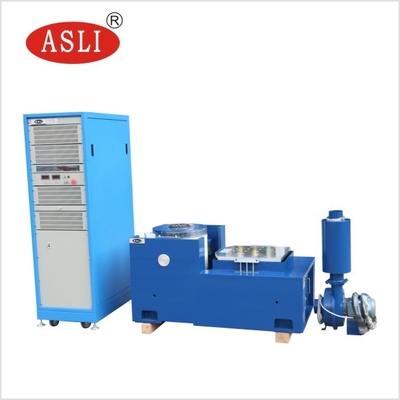

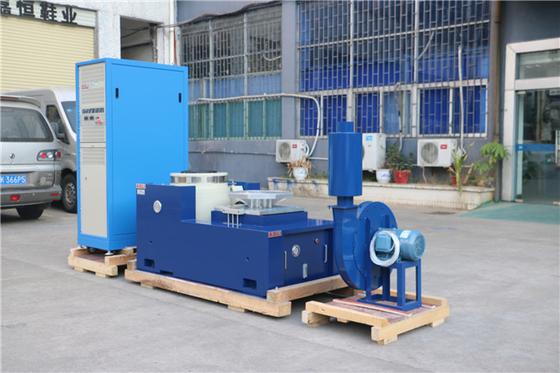

ES series vibration test machine with vertical and horizontal 3-axis configuration Close-up view of vibration shaker moving coil and armature assembly Complete vibration testing system with power amplifier and control console
System Composition & Compliance

A complete set of the X, Y, Z 3-axis vibration test system (3500 Hz frequency, sine/random force, high-frequency vibration) is composed of a shaker, power amplifier, and vibration measuring control system. It is designed in accordance with relevant national and international standards — such as MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIB, BS, and others — to provide technical support for establishing product quality inspection.

If you have any questions or require further information about the Vertical Horizontal 3 Axis XYZ Vibration Test Machine for Accelerated Vibration Testing, please don't hesitate to send your inquiry.

Product Highlights

ES-3A 3-axis XYZ vibration tester delivers 3000N force, 3-3500Hz sine/random testing, 100kg load, and 25mm displacement for auto parts. Vertical/horizontal operation with airbag isolation, no foundation needed. Complies with MIL-STD, ISO, IEC, ASTM standards.
