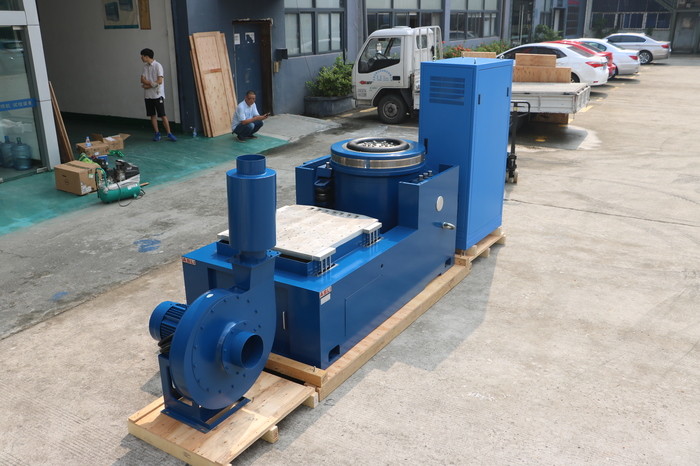

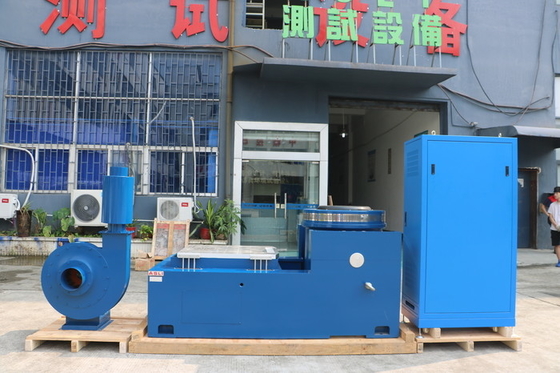

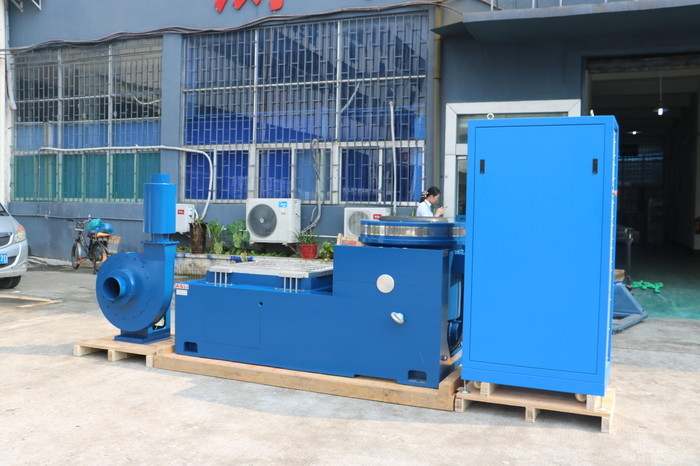

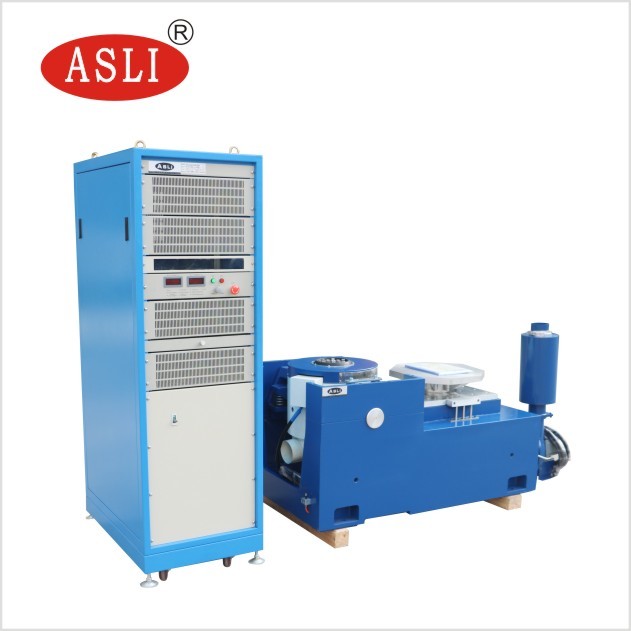

Un38.3 Test Standard Battery Vibration Testing Machine For Sinusoidal Vibration Test

Download ES-3A Vibration Tester PDF (Specification Sheet)

We are a manufacturer of Electrodynamic High Frequency Vibration Shaker series products. Our systems adopt advanced technologies including a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings and linear guidance, and trunnion isolation. These technologies enable completion of X, Y, Z three-axis sinusoidal vibration tests and broadband random vibration tests, as well as classical pulse tests (half-sine, trapezoidal, sawtooth wave) and shock response spectrum tests.

These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, home appliances, and other fields.

1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit design with low magnetic flux leakage, compact and rational structure.
3. Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation, providing strong eccentric load capacity.
4. Trunnion isolation foundation dedicated to vibration isolation, with convenient mobile installation.
5. Advanced technology move-around system ensures high reliability of the dynamic circle.
6. New duct design enhances the cooling effect.
7. Static stiffness and dynamic stiffness of the bearing are optimized, raising the vibration table capacity and improving low-frequency performance.

1. Rated Force: Sine force 3000N; Random force 3000N; Shock force 6000N
2. Frequency Range: 3Hz to 3500Hz; Fixed frequency, sweep back and forth, sine, random, shock
3. Sweep-frequency Mode: Linear, logarithmic, sweep back and forth, fixed frequency
4. Sweep-frequency Times: 1 to 32767
5. Sweep-frequency Time: Fixed frequency / single 1–3600 mins; sweep-frequency curves can be displayed
6. Max. Acceleration: 1000 m/s² (non-load)
7. Max. Speed: 1.6 m/s
8. Max. Displacement: 25 mm p-p (non-load), double peak
9. Impact Displacement: 25 mm
10. Weight of Moving Coil: 3.5 kg
11. Vibration Directions: Vertical
12. Vibration Wave: Sine, random, shock
13. Diameter of the Moving Coil: Φ150 mm
14. Vibration System Dimension: W750 × H599 × D680 mm
15. Vibration System Weight: 490 kg

1. Double magnetic circuit structure ensures high magnetic field intensity and reduces flux leakage. A special degaussing structure can reduce flux leakage to below 1 mT.
2. U-type spring, rollers, and linear bearing provide strong resistance to deflecting load.
3. Air springs are used for vibration isolation. The vibration system works steadily even with heavy load, with no need for a special foundation.
4. Protection devices are provided for over-thermal, over-load, over-current, over-voltage, and over-displacement of the vibration tester. Electrical network protection devices cover over-voltage, under-voltage, and lacking phase. Drive power protection includes current-limiting, soft-start, over-temperature, short-circuit, and module fault protection.
5. Can complete sine, random, and impact environmental tests.
6. This system has minimal requirements for voltage fluctuation — ≤±10% is acceptable.
7. This system has minimal requirements for grounding resistance — ≤4Ω is acceptable.
8. High reliability, especially suitable for long-time running.

1. Within a small loading bench, higher acceleration and working frequency are realized, improving the loading capacity and performance of the whole machine bench.

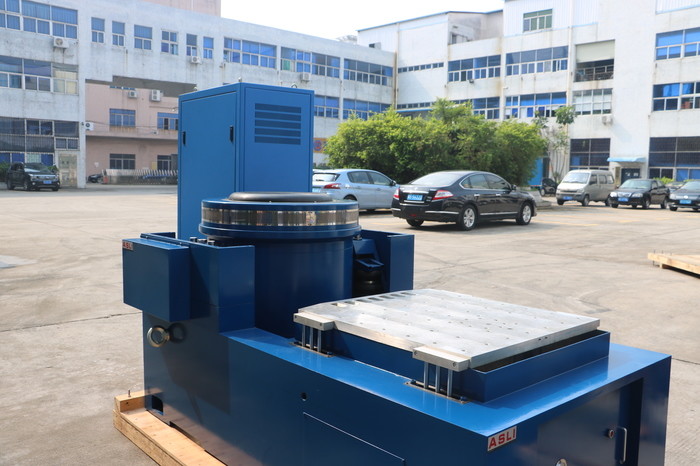

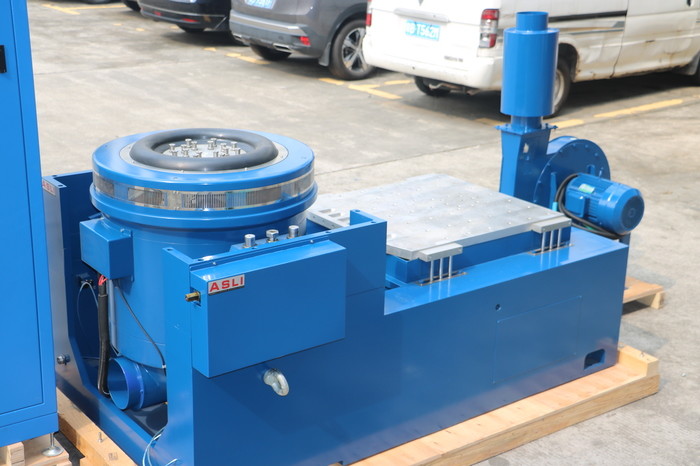

2. The horizontal bench and vibration bench are an integral type, with a perfect structure and convenient installation and adjustment.
3. Static pressure track, V-shape, with capacity for slope resistance and bias-loading resistance. Built-in oil pump, good structure, and easy operation.

VT vertical extended-bench and specified clamps are precision calculated and elaborately designed to ensure the customer acquires the best performance, with a perfect structure, high-quality material, and excellent workmanship.

If you have any inquiries about the UN38.3 Test Standard Battery Vibration Testing Machine for Sinusoidal Vibration Test, please feel free to contact us.
