Transport Simulation Electrodynamic Shaker Systems for Lab with Shock Isolation Device
Product Details
| Sine Force: | 10000N | Vibration Direction: | Triaxial |
|---|---|---|---|
| Acceleration: | 100g | RESISTANCE SHOCK: | Shock Isolation Device |
| Displacement: | Sine And Random Large Displacement | Moving Coling: | 14kg |
| Application: | Electronic Products | Usage: | Vibration Test |
| Highlight |
Lab Electrodynamic Shaker Systems,Shock Isolation Electrodynamic Shaker Systems,Vibration Shaker System 10KN |
||
Product Description

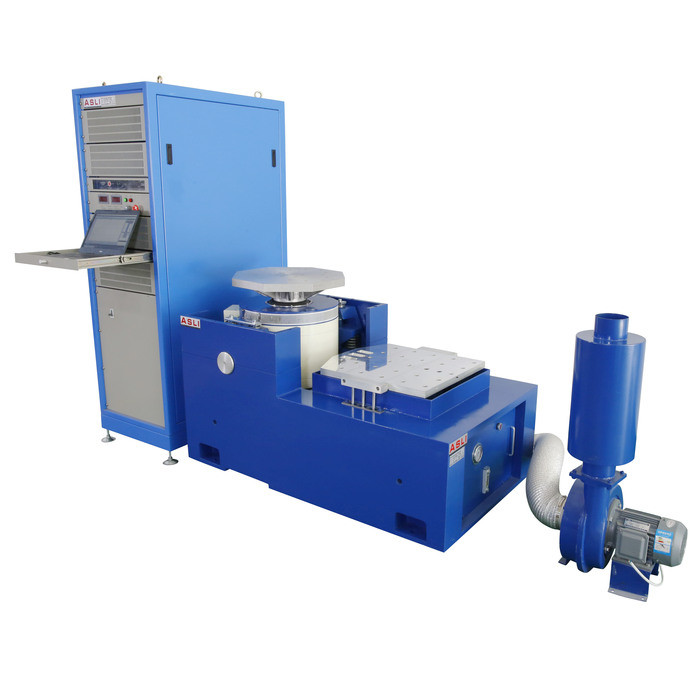

The electromagnetic vibration testing system is specifically engineered for extended operational periods. With an integrated vibration-resistant base, it delivers both vertical and horizontal vibration testing capabilities. The standard platform features a high-efficiency airbag shock isolation device that minimizes vibration transmission to the building structure, eliminating the need for additional foundation work in most installation scenarios.

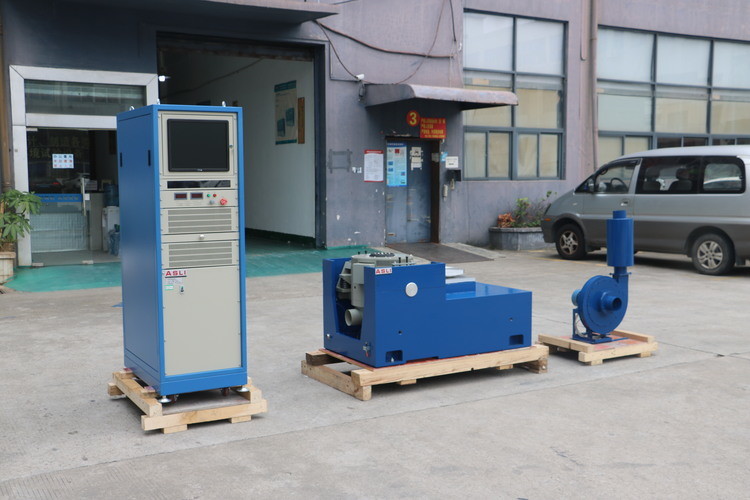

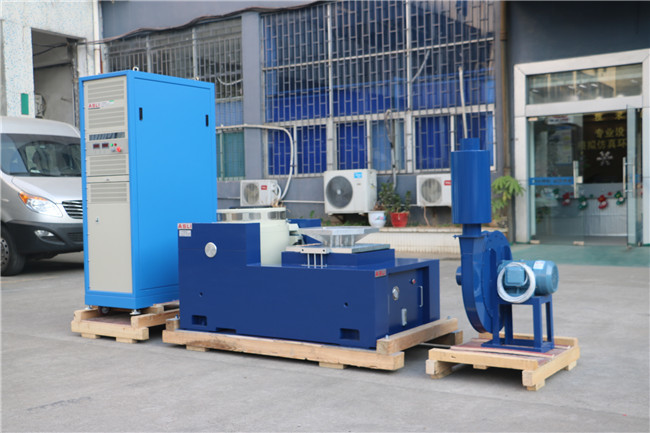

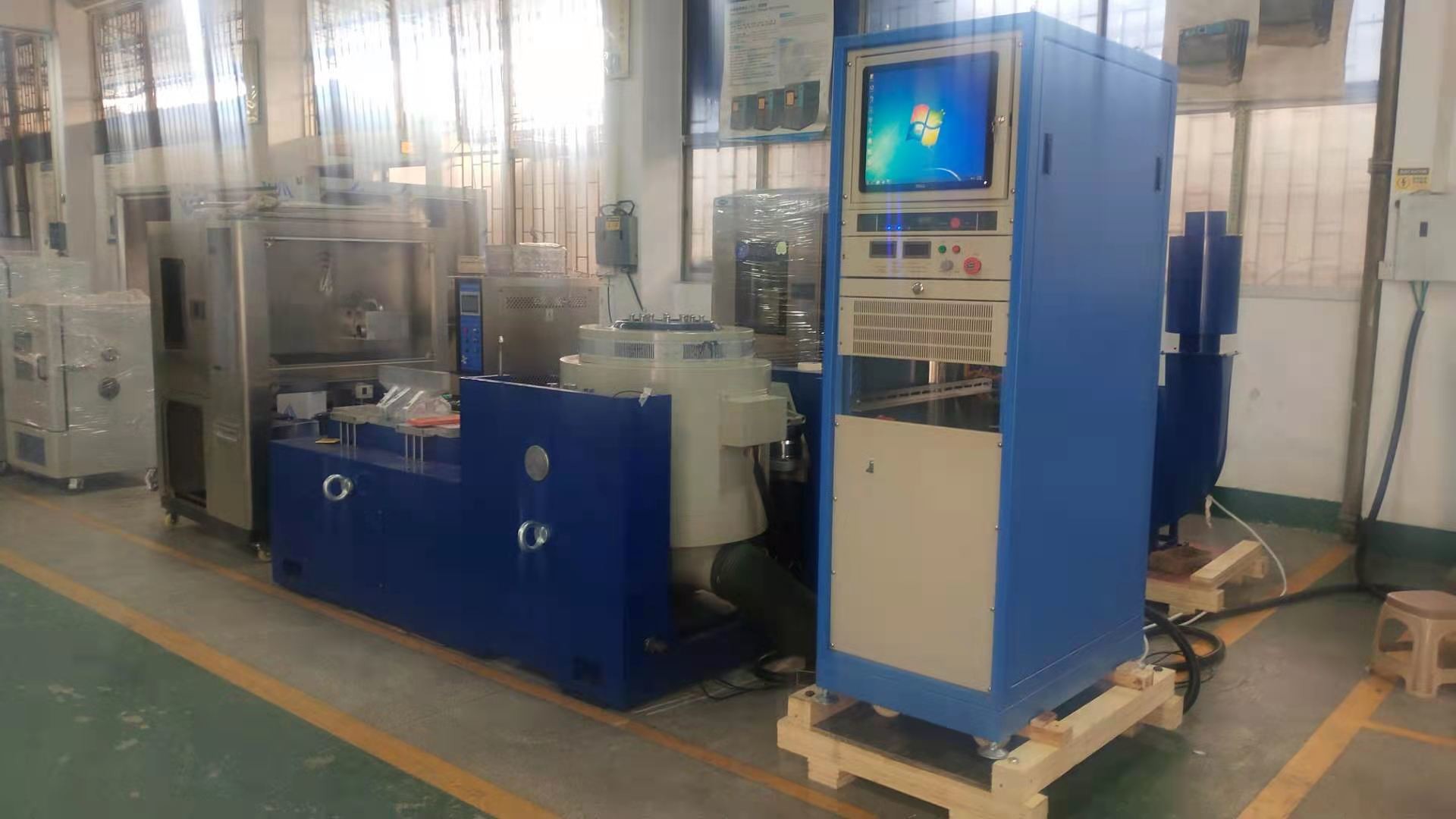

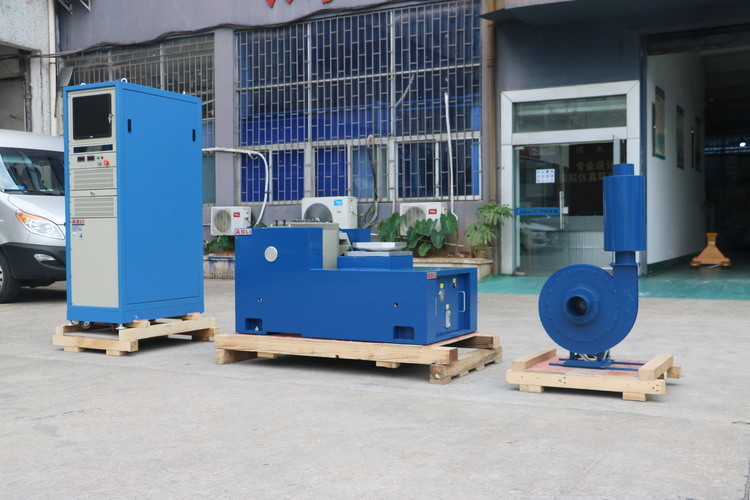

A complete vibration testing system comprises a shaker, power amplifier, and vibration measurement control system. It is designed in accordance with relevant national and international standards — including MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIB, BS, and others — providing reliable technical support for establishing product quality inspection protocols.
Vibration testing and data analysis promote a better understanding of machine health, efficiency, and productivity, enabling more accurate estimates and operating schedules. By compiling and condensing a machine's lifetime of wear and stress data into a short period of time, vibration testing provides valuable insights into the working status and condition of machines, structures, and products.
Download document for storage — ES-10 mechanical vibration test system.pdf
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |

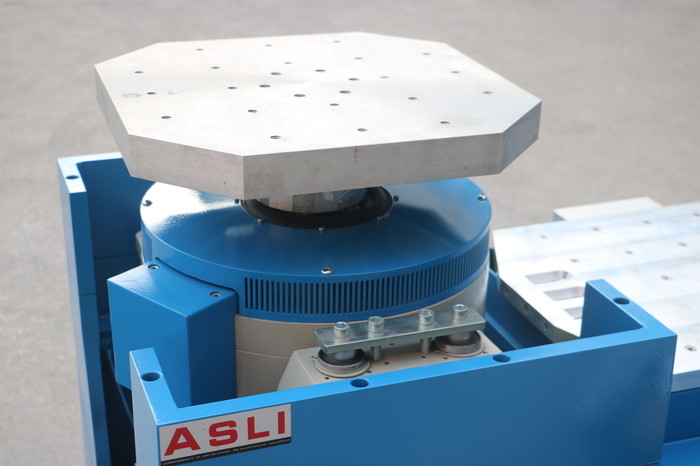

- Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
- Two-magnetic circuit design with low magnetic flux leakage, compact structure, and rational layout.
- Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation, providing high eccentric load capacity.
- Trunnion isolation foundation dedicated to hormone use, with convenient mobile installation.
- Advanced technology integrated throughout the system ensures high reliability of the dynamic circle.
- New duct design enhances the cooling effect.
- Static stiffness and dynamic stiffness of the bearing with small balloon effect, raising the vibration table bearing capacity and improving low-frequency performance.
If you need more information about the Transport Simulation Electrodynamic Shaker Systems for Lab with Shock Isolation Device, please don't hesitate to send your inquiry.
