What is RMS value in vibration testing?
In vibration testing It is generally demanded that a random Signal should contain peak-values of three times the RMS value. The force produced by an exciter is mainly limited by the heating effect of the current. i.e. the RMS value. whereas the power amplifier rating is influenced by the peak values.
Download document for storage -- click here ----→vibration test equipment ES-10.pdf

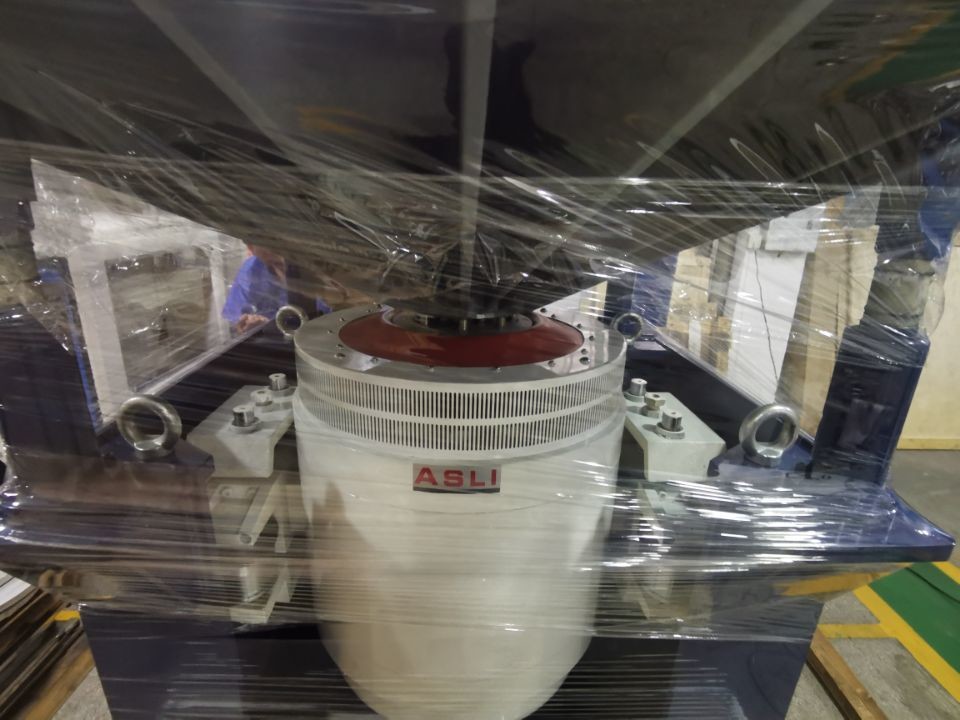

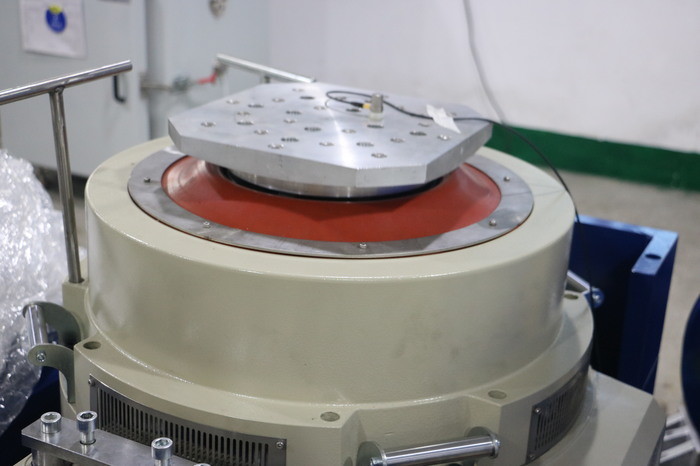

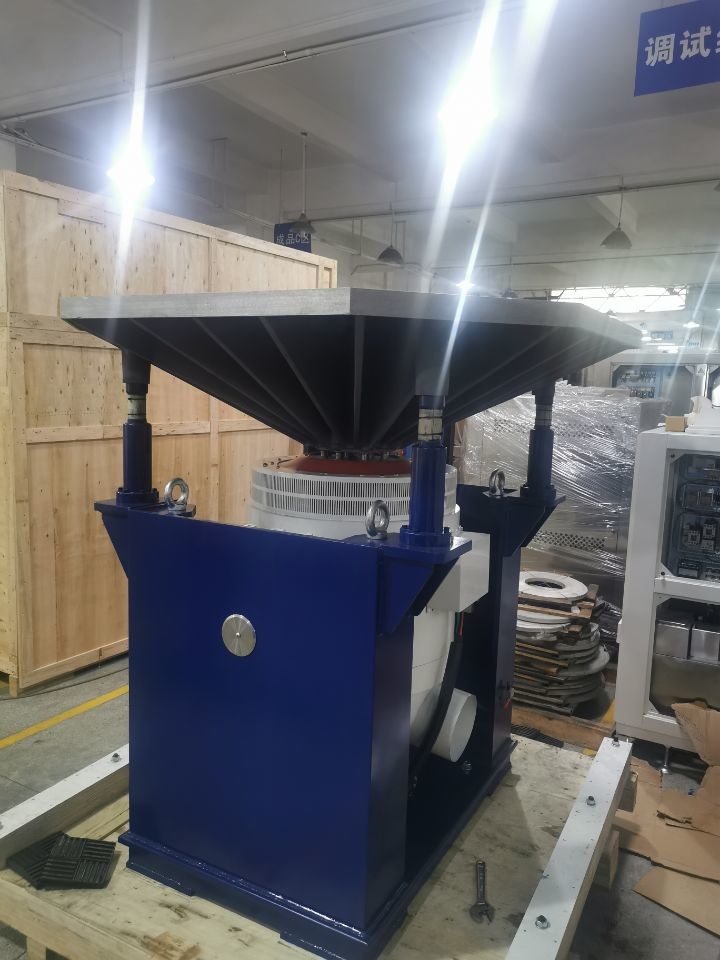

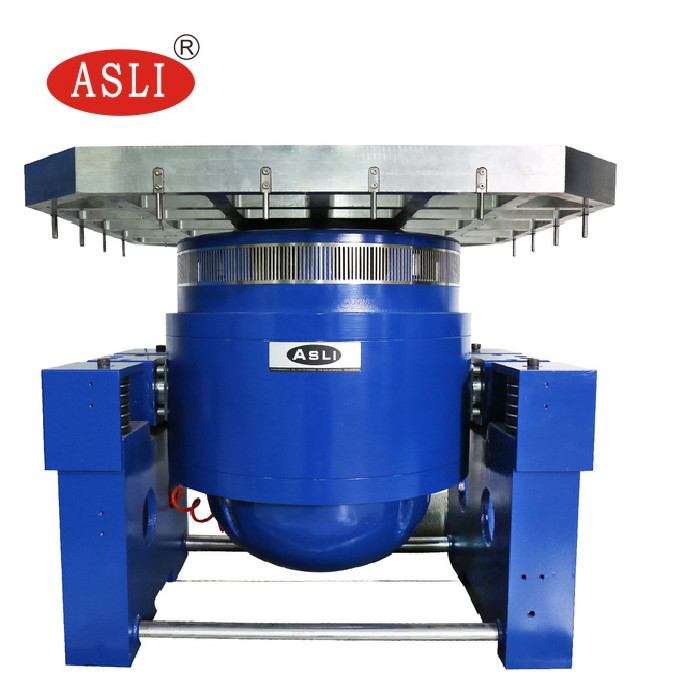

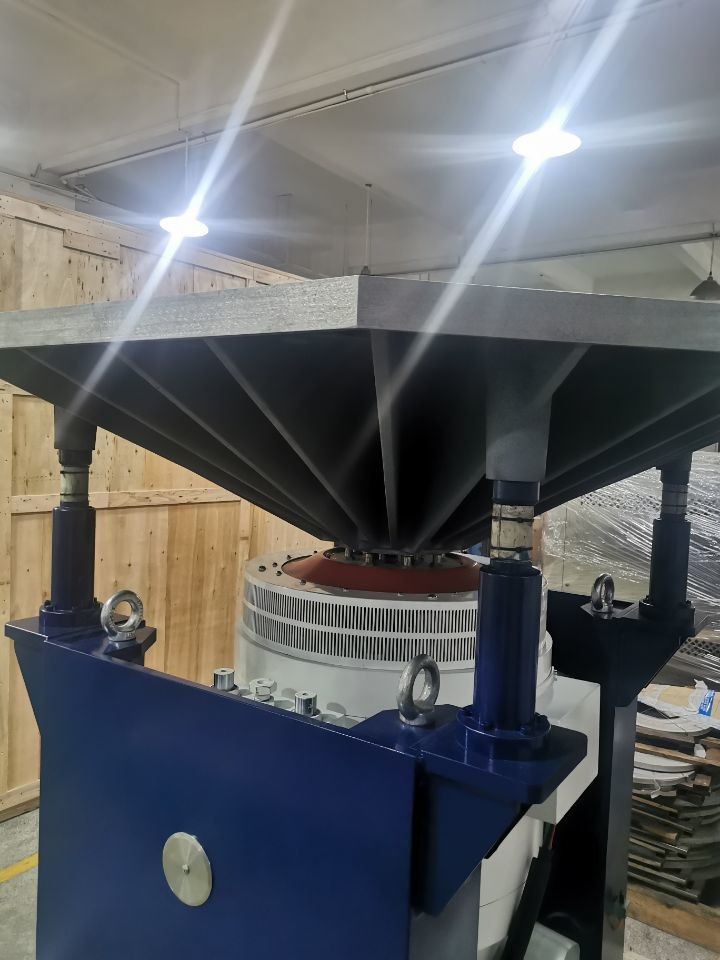

Electrodynamic Shaker Vibrator Meet Ista Standard for Random Vibration Resistance Test
sine and random electromagnetic high frequency vibration tester completely according to the standard design battery related testing, simulation, under the certain condition of the vibration test of battery, the battery or battery pack is fixed on the vibration table, according to the prescribed frequency, acceleration and displacement mode along the battery sample vibration of three mutually perpendicular direction measured battery should not leak, don't lose heart, not broken, no fire and explosion.
Technical Parameters:
| Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s2) | Rated Speed(m/s) |
Rated displacement (p-p)mm |
Max. Loading (Kg) | moving coil(Kg) |
Dimension of Moving coil(mm) |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| Power Amplifier | |
| Amplifier output | 30 kVA |
| SNR | >65 dB |
| Rated output voltage | 120 Vrms |
| Dimensions (L×W×H, unpacked) | 800x900x2,100 mm |
| Blower | |
| Air volume | 0.46 m3/s |
| Power | 7.5 kW |
| Air duct diameter | 200 mm |
| Air pressure | 8.8kPa |
| Installation | Able to connect to ceiling (up to two 90 degree bends), max 20’ run |
Vibration shaker Features:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table capacity, improve low-frequency performance.
Electrodynamic Shaker Vibrator Meet Ista Standard for Random Vibration Resistance Test also can be combined use with temperature humidity test chamber.
