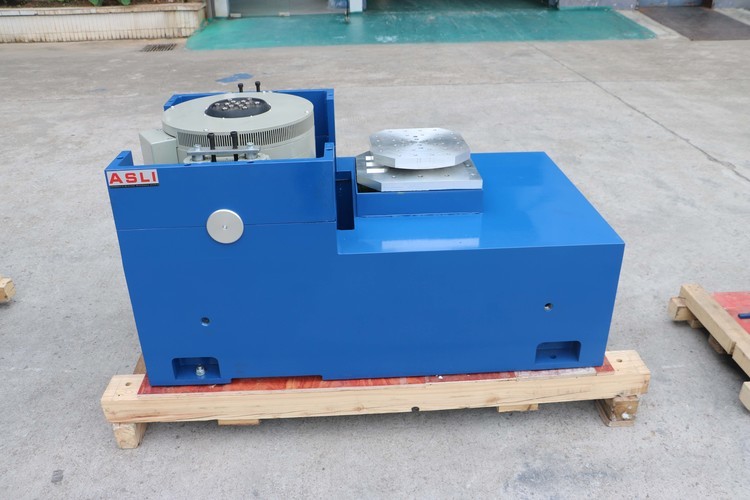

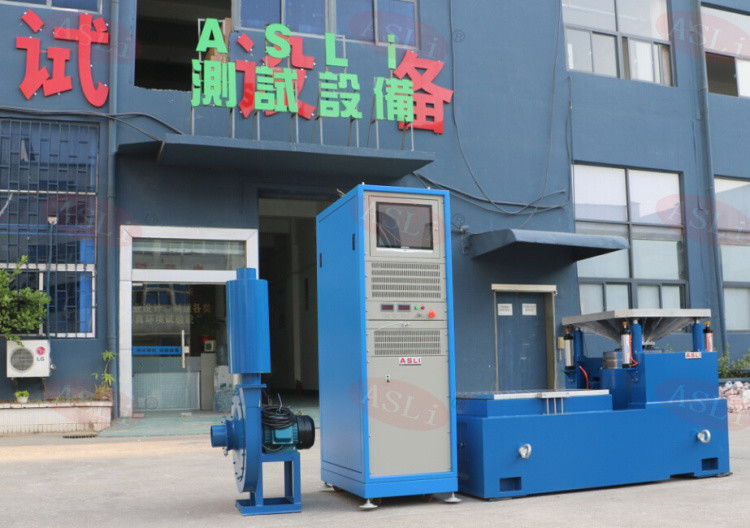

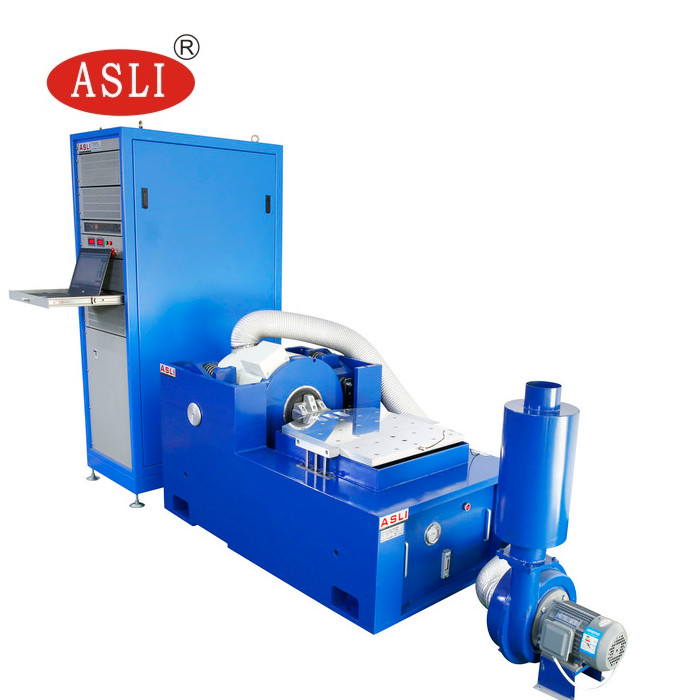

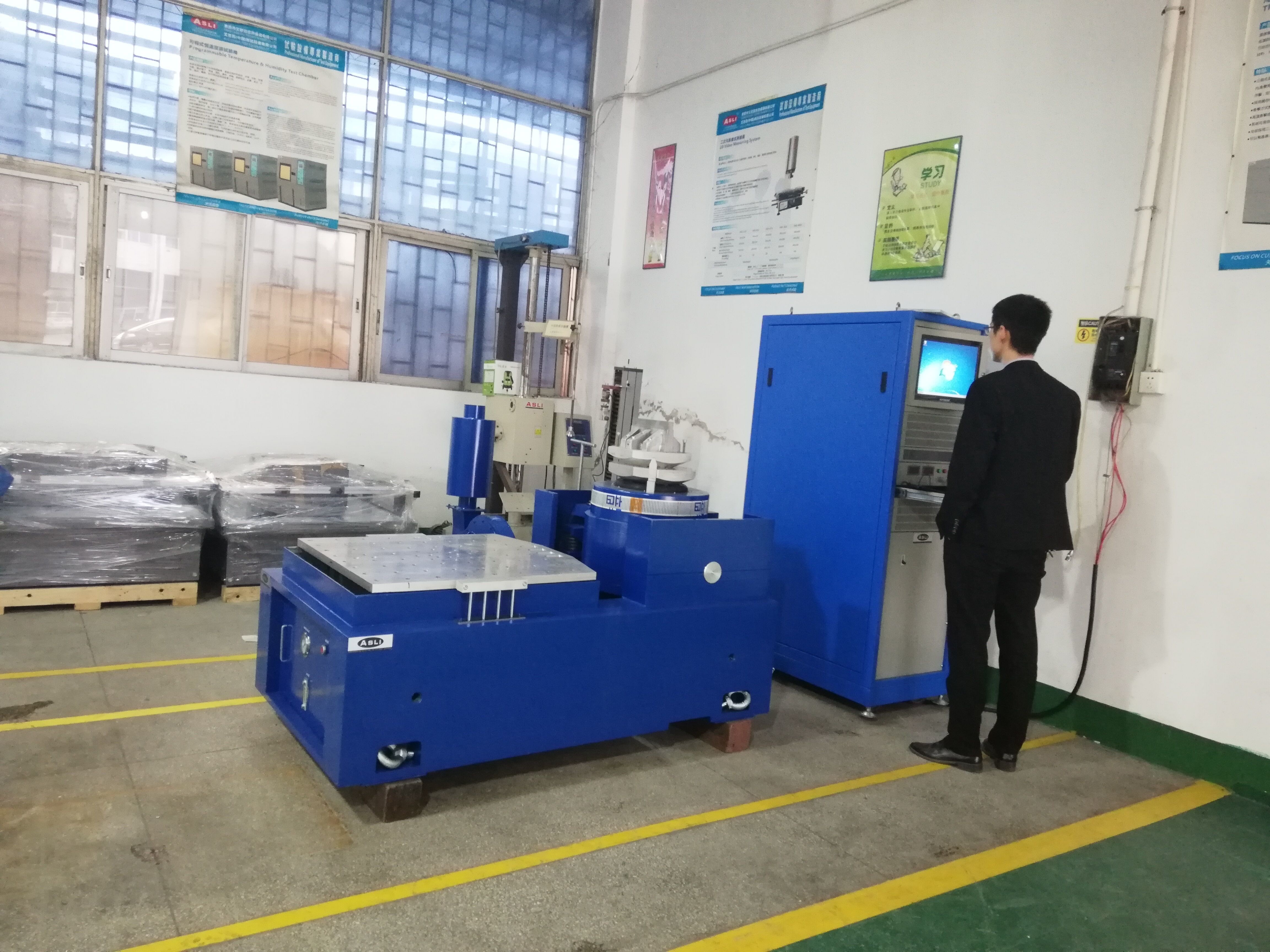

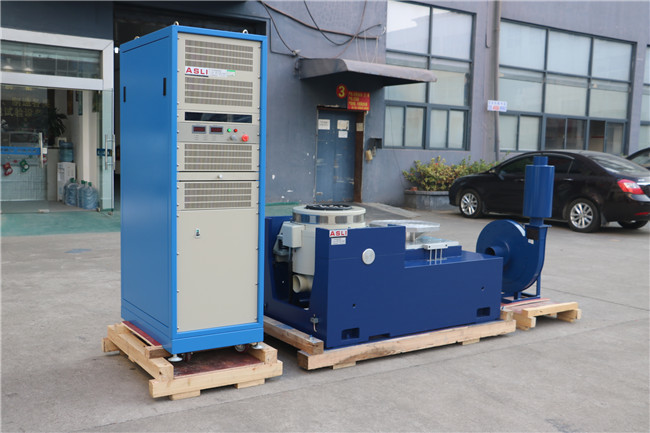

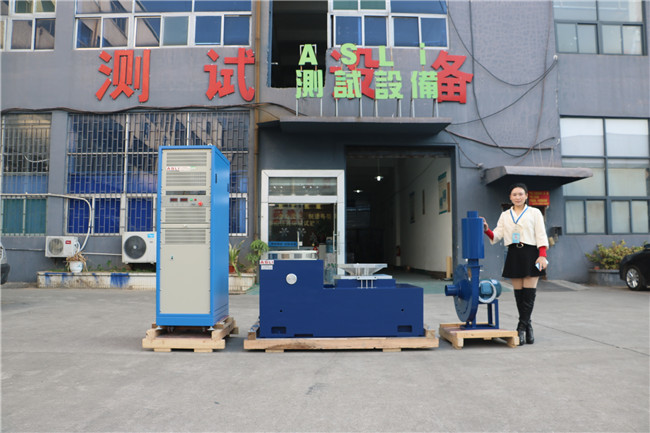

Electrodynamic Vibration Shaker Device With Magnesium Alloy Table And Horizontal Bench
Product Details
| Vibration Force: | 10KN | Controller: | VENZO |
|---|---|---|---|
| Frequency: | 5-3000hz | Acceleration: | 1000m/s2 |
| Vibration Direction: | Vertical & Horizontal | Application: | Battery |
| Table Material: | Magnesium Alloy | Test Standard: | Iec 62133 |
| Highlight |
1000m/s2 Electrodynamic Vibration Shaker,Horizontal Bench Electrodynamic Vibration Shaker,Magnesium Alloy Table Vibration Test Bench |
||
Product Description
Vibration testing and data collection promote a better understanding of machine health, efficiency, productivity, and operating schedules. By compiling and collating data from a machine's lifetime of wear and stress into a short period of time, vibration testing provides valuable insights into the working status and condition of machines, structures, and products.
Download document for storage — vibration test equipment ES-10.pdf
The sine and random vibration table / 3-axis vibration direction test machine simulates a series of controlled vibrations (ocean waves, wind, earthquakes, rain, etc.) produced by natural or human-made sources. It tests how products withstand transportation and vibration environments over their entire lifespan, thereby helping to control product quality and support the design of superior products. It is widely applied in national defense, aviation, aerospace, communications, electronics, automotive, home appliance, and other industries.
- Light armature, high stiffness, 4000 Hz frequency.
- Computer connecting line control with immediate material storage.
- Display controlling chart.
- Low resistance and high-performance design — high efficiency, low cost.
- High reliability, low fault rate.
| Model | ES-3 | ES-6 | ES-10 |
|---|---|---|---|
| Rated sine force (N) | 2940 | 5880 | 9800 |
| Random force (N) | 2940 | 5880 | 9800 |
| Shock force (bmax) | 5880 | 11760 | 19600 |
| Frequency (Hz) | 5–3500 | 5–3000 | 5–3000 |
| Max acceleration (m/s²) | 980 | 980 | 1000 |
| Rated speed (m/s) | 1.6 | 1.5 | 2.0 |
| Max displacement (mm p-p) | 25 | 25 | 25 |
| Max load (kg) | 120 | 200 | 120 |
| Consumption power (KVA) | 7.5 | 17 | 22 |
- Small loading bench enables higher acceleration and working frequency, improving the loading capacity and performance of the whole machine bench.
- Horizontal bench and vibration bench are an integral type with a perfect structure — convenient to install and adjust.
- Static pressure track, V-shape, with capacity for slope-resistant and bias-loading resistant operation.
- Built-in oil pump — good structure and easy operation.
| Model | Bench Size (mm) | Frequency Range (Hz) | Weight of Moving Parts (kg) |
|---|---|---|---|
| LT0303 | 300 × 300 × 22 | 5–1000 | 6.6 |
| 300 × 300 × 26 | 5–1500 | 7.8 | |
| 300 × 300 × 30 | 5–2000 | 9.0 | |
| LT0404 | 400 × 400 × 22 | 5–1000 | 11.2 |
| 400 × 400 × 26 | 5–1400 | 13.2 | |
| 400 × 400 × 30 | 5–2000 | 16.0 | |
| LT0505 | 500 × 500 × 25 | 5–1000 | 19.3 |
| 500 × 500 × 30 | 5–1500 | 23.1 | |
| 500 × 500 × 35 | 5–2000 | 27.0 | |
| LT0606 | 600 × 600 × 25 | 5–1000 | 27.5 |
| 600 × 600 × 30 | 5–1200 | 33.0 | |
| 600 × 600 × 40 | 5–2000 | 45 | |
| LT0707 | 700 × 700 × 25 | 5–800 | 36.8 |
| 700 × 700 × 30 | 5–1000 | 44.2 | |
| 700 × 700 × 35 | 5–1500 | 52 | |
| LT0808 | 800 × 800 × 30 | 5–1000 | 57.7 |
| 800 × 800 × 40 | 5–1500 | 76.9 | |
| 800 × 800 × 45 | 5–2000 | 86.5 | |
| LT1010 | 1000 × 1000 × 30 | 5–1000 | 89.1 |
| 1000 × 1000 × 40 | 5–1300 | 118.8 | |
| 1000 × 1000 × 50 | 5–1500 | 147 | |
| LT1212 | 1200 × 1200 × 30 | 5–800 | 126 |
| 1200 × 1200 × 40 | 5–1100 | 168 | |
| 1200 × 1200 × 50 | 5–1400 | 210 |
If you need more information about the Electrodynamic Vibration Shaker Device with Magnesium Alloy Table & Horizontal Bench, please don't hesitate to send your inquiries.
Product Highlights
Electrodynamic Vibration Shaker with magnesium alloy table and horizontal bench. VENZO controller, 10KN force, 5-3000Hz, 1000m/s² acceleration, IEC 62133 compliant. Ideal for battery testing. Features light armature, high stiffness, low fault rate, and computer control. Custom options available.
