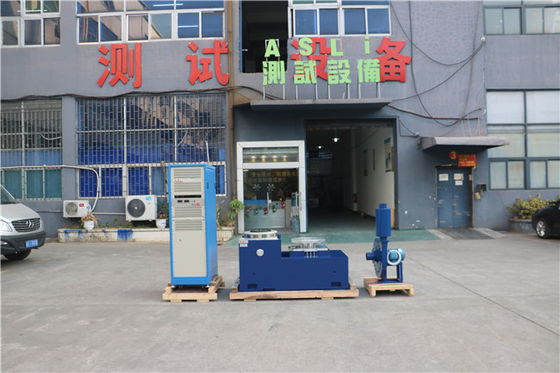

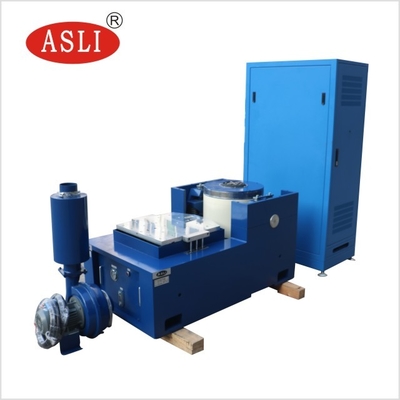

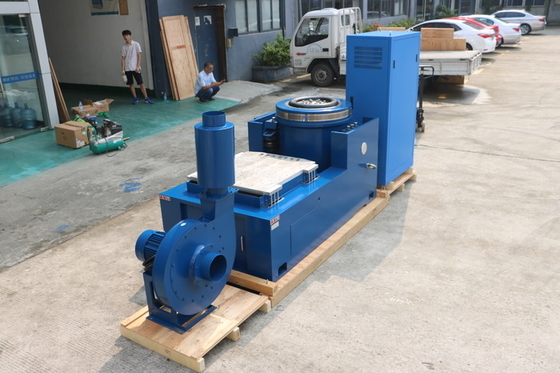

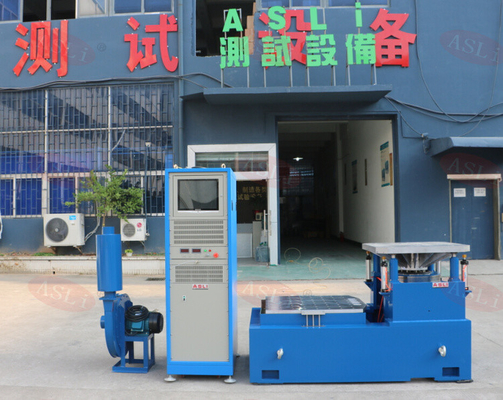

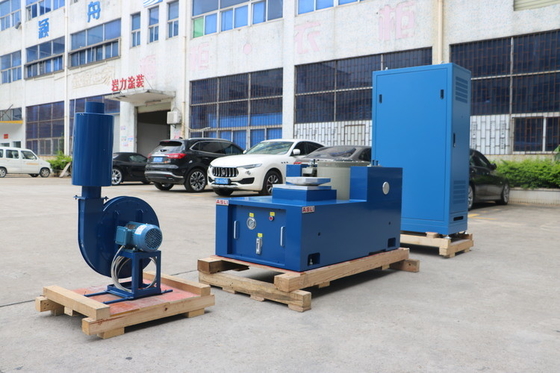

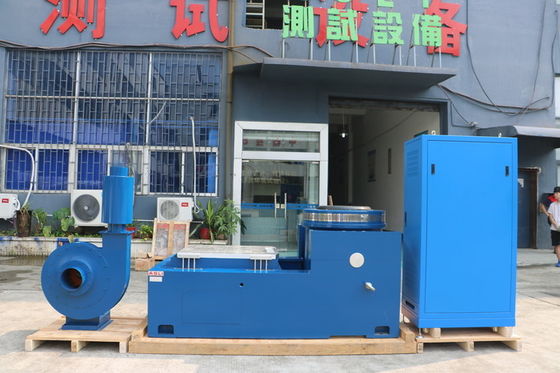

3 Axis Large Force Electrodynamic Vibrator Shaker Table For Sinusoidal Vibration Test
Product Details
| Sine Force: | 60000N | Speed: | 1.8m/s |
|---|---|---|---|
| Displacement: | 51mm | Frequency: | 3~3500HZ |
| Loading: | 250kg | Acceleration: | 100g |
| Armature: | 230mm | Vibration Direction: | 3 Axis |
| Application: | Aerospace | Function: | Sine & Random |
| Highlight |
MIL-STD Shaker Table,1.8m/s Speed Shaker Table,230mm Vibration Shaker Table |
||
Product Description
Download: Vibration Temperature Test Machine THV-Volume (PDF)
The 3 Axis Large Force Electrodynamic Vibrator Shaker Table is engineered for sinusoidal vibration testing and is capable of meeting the following test standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, NASA, GB, GJB, JIS, BS, and others.
The High Frequency Vibration Testing Machine / Vertical Shaker System, designed for IEC, ISTA, and MIL-STD test standards, adopts advanced modern technologies including a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings and linear guidance, and trunnion isolation. It can perform X, Y, and Z three-axis sinusoidal vibration tests and broadband random vibration tests, as well as classical (half-sine) pulse and shock response spectrum tests.
It is widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, home appliances, and other fields.
| System Model | ES-60 |
|---|---|
| Frequency Range (Hz) | 3 ~ 3500 |
| Rated Force — Sine (N) | 60000 |
| Rated Force — Random (N) | 60000 |
| Rated Force — Shock (N) | 120000 |
| Maximum Acceleration — Sine (m/s²) | 1000 |
| Maximum Acceleration — Random (m/s² rms) | 1000 |
| Maximum Acceleration — Shock (m/s²) | 2000 |
| Maximum Velocity — Sine (m/s) | 1.8 |
| Maximum Velocity — Shock (m/s) | 1.8 |
| Maximum Displacement / Travel (mm p-p) | 51 |
| Moving Coil Mass (kg) | 60 |
| Dimension of Moving Coil | Dia 40 mm |
| Vertical Table Size | Customized — selected according to test requirements |
| Horizontal Table Size | Customized — selected according to test requirements |
| Max Load (kg) | 800 |
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (kg) | Moving Coil (kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
- Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
- Two-magnetic circuit design with low magnetic flux leakage, compact structure, and rational layout.
- Rocker rod roller bearings, straight and import-oriented composite body stiffness orientation, with eccentric load capacity.
- Trunnion isolation foundation dedicated to hormone use, with convenient mobile installation.
- Advanced technology move-around system ensures high reliability of the dynamic circle.
- New duct design enhances the cooling effect.
- Static stiffness and dynamic stiffness of the bearing small balloon raise the vibration table bearing capacity and improve low-frequency performance.
If you need more information about the 3 Axis Large Force Electrodynamic Vibrator Shaker Table for Sinusoidal Vibration Test, please don't hesitate to send your inquiry.
