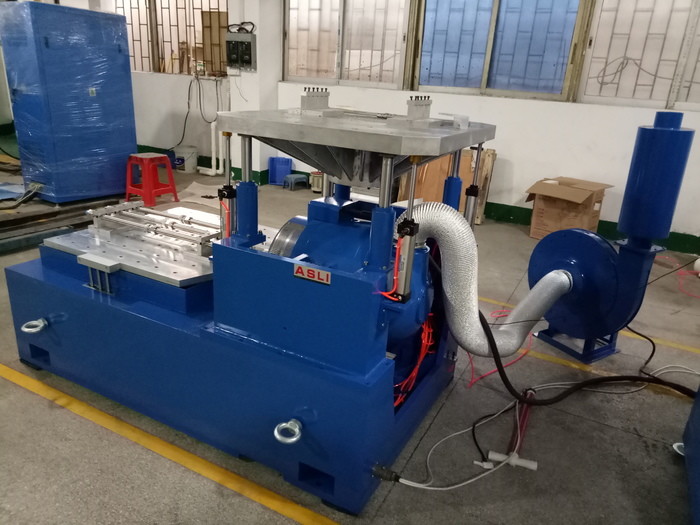

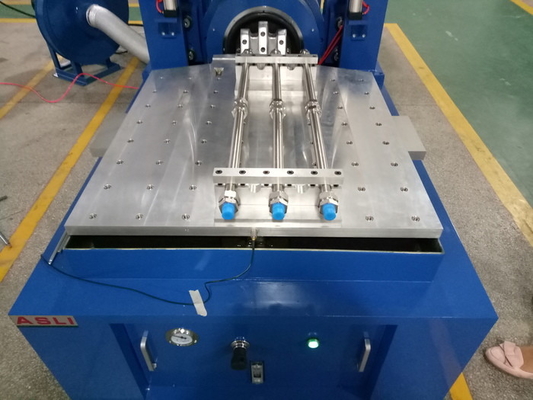

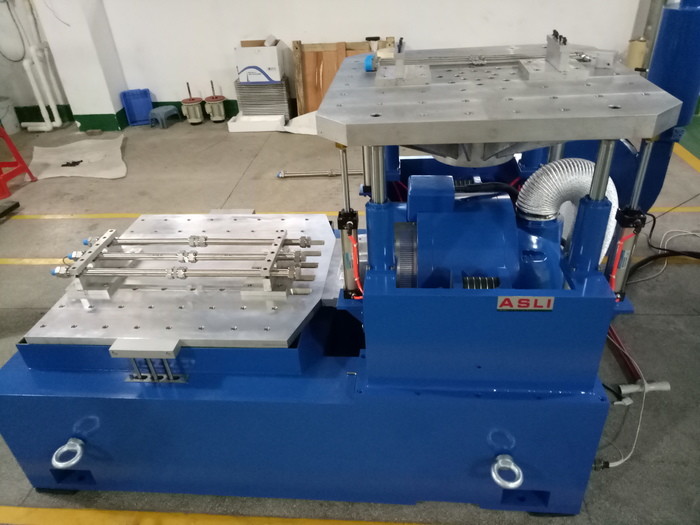

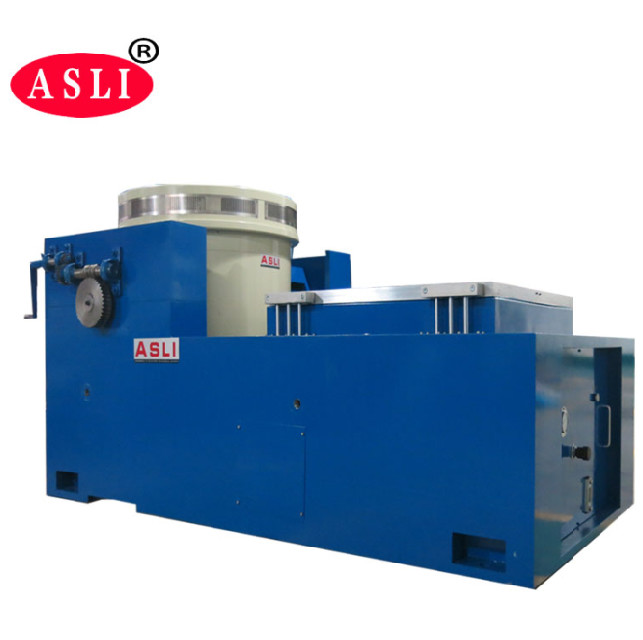

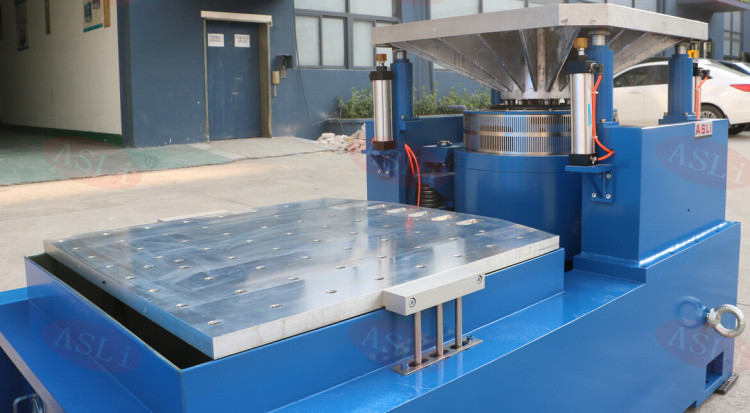

EN50604 IEC62133 UN38.3 High Frequency Vibration Test Machine for Automobile Battery
There are several reasons why a sample needs to do vibration testing, including:
1. Quality Control: Vibration testing helps to identify any manufacturing defects or flaws in the sample before it is released to the market. It ensures that sufficient quality control measures are taken to meet the expected product reliability and compliance level.
2. Safety: Vibration testing is a crucial component of safety testing that ensures that the samples are safe for use by the end-users. Failure of some components due to vibration or shock could lead to the loss of value, injury, or even death.
3. Product Development: Vibration testing provides valuable feedback during the product development process, enabling designers and engineers to make critical design decisions and improve product performance and durability under harsh conditions.
4. Regulatory Compliance: Many industries require vibration testing to comply with relevant regulatory and industry standards. Vibration testing needs to be performed to ensure that the samples meet the industry specifications and regulatory standards.
Specification
| Name | high frequency vibration shaker | ||||||||
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated displacement (p-p)mm | Max. Loading (Kg) | moving coil (Kg) | Dimension of Moving coil (mm) |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
