ASTM D4728 XYZ Axis High Frequency Vibration Tester for Random Sine Mechanical Shock Test
Product Details
| Customized Support: | OEM | Brand: | ASLI |
|---|---|---|---|
| Place Of Origin: | Guangdong, China | Power: | Electronic |
| Certificate: | ISO 9001:2008 | Packing Material: | Poly Wood Case |
| Vibration: | 3 Axis | Vibration Force: | Customized |
| Table Size: | 800X800mm | Max Load: | 300Kg |
| Highlight |
300Kg Load Vibration Tester,800X800mm Vibration Tester,OEM Mechanical Shock Tester |
||
Product Description

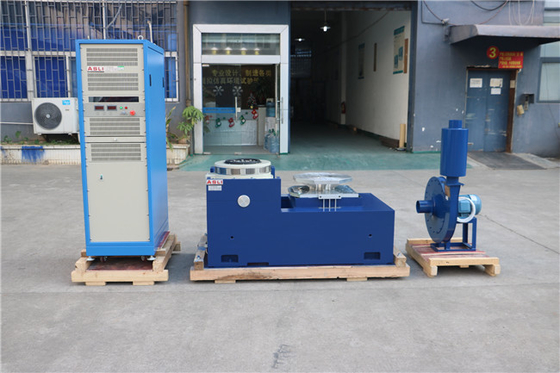

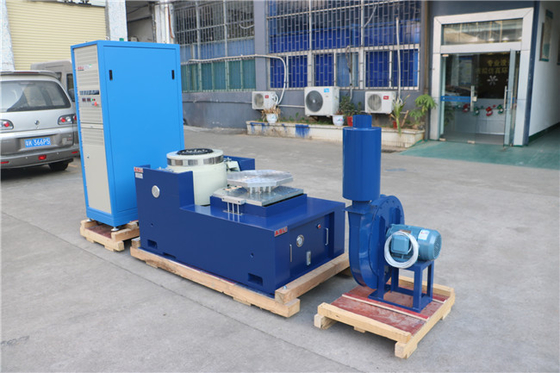

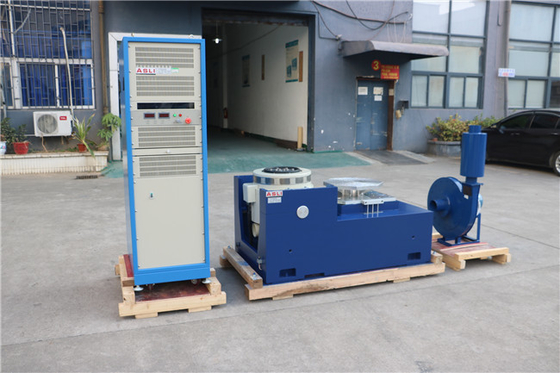

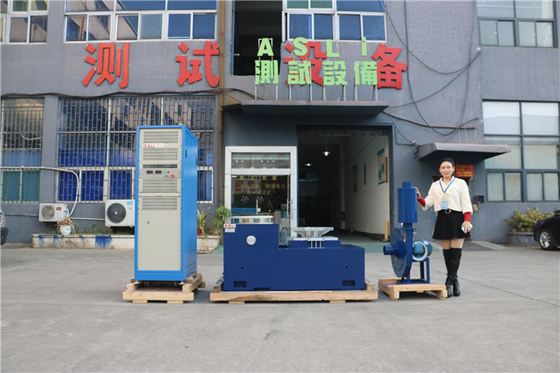

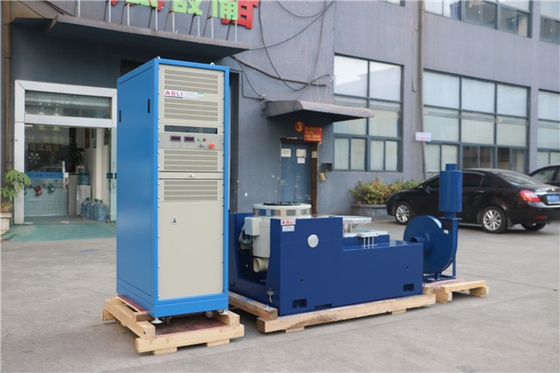

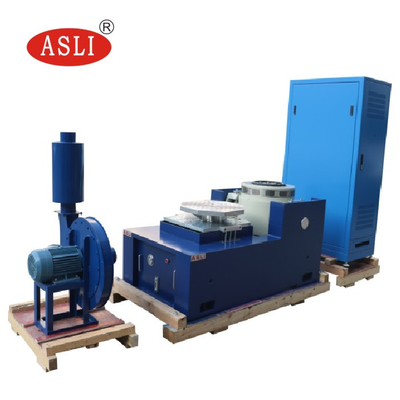

The XYZ Axis High Frequency Vibration Tester is engineered for product vibration and mechanical shock environmental testing, as well as environmental stress screening and reliability assessment. It serves critical testing needs across aerospace, communications, electronics, electrical, home appliances, and other industries. This test platform complies with a wide range of specifications, including IEC, MIL-STD, JIS, and ASTM standards.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3–2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3–2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3–2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3–1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
- Flexible suspension system and straight-line guide deliver strong bearing capacity, excellent guidance performance, and high stability.
- Central load airbag offers high static stiffness, low dynamic stiffness, strong bearing capacity, and outstanding dynamic performance.
- Rapid self-diagnosis and chain protection ensure high safety and reliability.
- Airbag isolation and damping device eliminates the need for a special foundation, perfectly reproduces vibration waves, and reduces vibration transmission.
- Provides different horizontal and vertical expansion platforms for versatile testing setups.
- Compatible with all types of vibration controllers for simple, straightforward operation.
If you have any questions or require further information about the ASTM D4728 XYZ Axis High Frequency Vibration Tester for Random Sine Mechanical Shock Test, please do not hesitate to send your inquiry.
Product Highlights
ASTM D4728 XYZ Axis High Frequency Vibration Tester by ASLI delivers 3-axis random, sine and mechanical shock testing with up to 300kg load and 800x800mm table. ISO 9001:2008 certified, customizable vibration force and OEM support ensure reliable, efficient performance for aerospace, electronics and automotive reliability tests.
