100G Acceleration Electrodynamic Vibration Displacement 51mm Random Mode
Product Details
| Weight Of Moving Coil: | 14kg | Shaking Force: | 1000kgf(10000N) |
|---|---|---|---|
| Maximum Load: | 270kg | Mode: | Sine, Random, Shock,Resonance Search And Stay |
| Maximum Acceleration: | 100 G | Displacement: | 51mm |
| Velocity: | 1.8m/s | Product Name: | Electrodynamic Shaker |
| Highlight |
Acceleration Electrodynamic Vibration Device,51mm Electrodynamic Vibration Device,100G Acceleration Electrodynamic Shaker |
||
Product Description
The Electrodynamic Shaker is an advanced electrodynamic vibration system specifically designed for vibration testing, modal analysis, and structural analysis. It delivers up to 1000kgf (10000N) of shaking force with a displacement of 51mm and a velocity of 1.8m/s. With a frequency range of 3Hz to 2,000Hz and a maximum acceleration of 100G, this high-performance shaker is widely used across industries such as aerospace, automotive, electronics, medical, and defense for product testing. It is highly reliable, efficient, and cost-effective, helping customers achieve their product testing goals.
- Electrodynamic Vibration System: Electrodynamic Shaker
- Mode: Sine, Random, Shock, Resonance Search and Stay
- Application: Defense, Aerospace, Auto Parts, PCB Board, Electronics
- Maximum Load: 270kg
- Maximum Acceleration: 100 G
| Product Name | Electrodynamic Shaker |
|---|---|
| Application | Defense, Aerospace, Auto Parts, PCB Board, Electronics |
| Weight of Moving Coil | 14kg |
| Maximum Load | 270kg |
| Maximum Acceleration | 100 G |
| Displacement | 51mm |
| Frequency Range | 3Hz to 2,000 Hz |
| Shaking Force | 1000kgf (10000N) |
| Mode | Sine, Random, Shock, Resonance Search and Stay |
| Velocity | 1.8m/s |

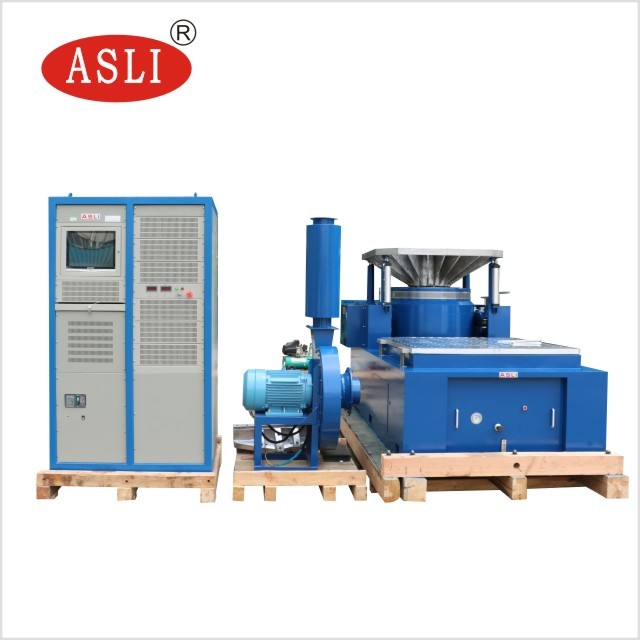

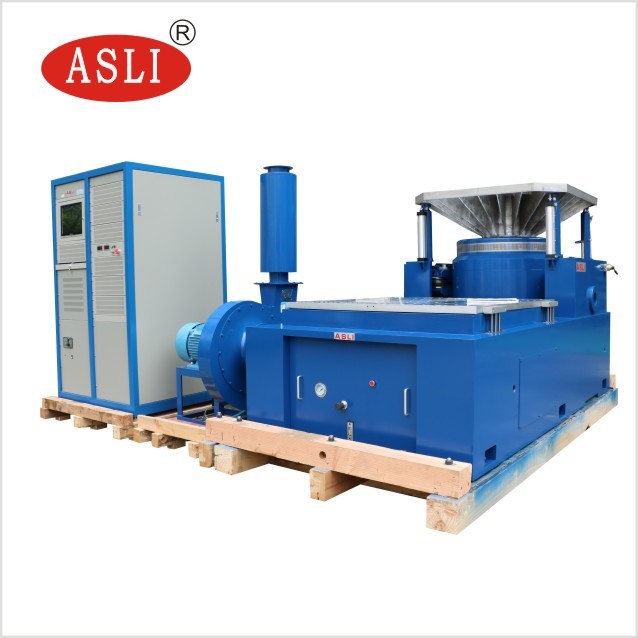

The ASLI ES-10 Electrodynamic Shaker Equipment is the ideal choice for vibration testing across a wide range of applications. This highly advanced equipment is designed to deliver the highest level of accuracy, reliability, and performance when testing in the defense, aerospace, auto parts, PCB board, and electronics industries. It features a maximum displacement of 51mm and an unparalleled frequency range of 3Hz to 2,000Hz, enabling it to meet the requirements of even the most challenging tests.
The ASLI ES-10 also offers a maximum acceleration of up to 100G, making it suitable for testing a wide range of products and components. Its advanced design ensures that even the most delicate components can be tested without risk of damage, while its high accuracy and reliability make it the perfect choice for testing in any environment.
Choose the ASLI ES-10 Electrodynamic Shaker Equipment for your vibration testing needs and be assured of the highest level of performance and accuracy. With its advanced design and outstanding features, this equipment will make your tests easier and more efficient than ever before.
We are dedicated to providing the highest quality technical support and service for the Electrodynamic Shaker. Our knowledgeable staff are available to answer any questions regarding installation, operation, or maintenance.
Our team of trained technicians is available for on-site installation, repair, and troubleshooting. We also offer a comprehensive range of spare parts and accessories, as well as remote technical support to ensure your equipment continues to run smoothly.
For further information regarding technical support and service for the Electrodynamic Shaker, please contact us.
The Electrodynamic Shaker is packaged in a high-strength cardboard box for added protection. The package is further sealed with plastic wrapping to prevent dust, dirt, or moisture from entering. Foam inserts are also included to cushion the product against shocks during transit.
The Electrodynamic Shaker is shipped using a reliable and trustworthy carrier. All shipments are tracked, and delivery times are estimated based on the carrier's delivery schedule.
A1: The ASLI ES-10 Electrodynamic Shaker is a high-performance vibration testing equipment developed by ASLI, with a model number of ES-10 and a place of origin of China.
A2: The ASLI ES-10 Electrodynamic Shaker features high acceleration, high precision, low noise, a wide frequency range, and the ability to provide various vibration and shock tests.
A3: The maximum displacement of the ASLI ES-10 Electrodynamic Shaker is up to ±50mm.
A4: The maximum acceleration of the ASLI ES-10 Electrodynamic Shaker is up to 300g.
A5: The frequency range of the ASLI ES-10 Electrodynamic Shaker is from 5Hz to 5000Hz.
Product Highlights
Electrodynamic Shaker delivers 1000kgf force, 100G acceleration, 51mm displacement, 3-2000Hz range, 270kg load. Supports Sine, Random, Shock modes. Ideal for aerospace, automotive, defense, electronics vibration testing.
